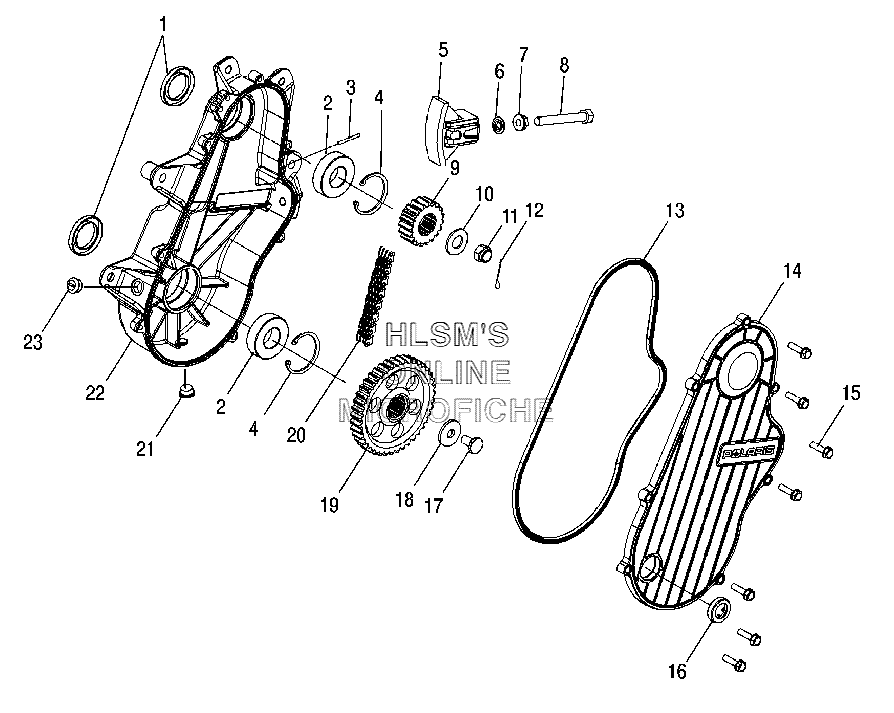

CHAINCASE ASSEMBLY для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    3514309 BEARING, BALL
    BEARING, BALL
  • 3
    7661867 PIN-ROLL
    PIN-ROLL
  • 4
    7718406 RING, RETAINING
    RING, RETAINING
  • 5
    1332427 TIGHTENER, CHAIN ASSY.
    TIGHTENER, CHAIN ASSY.
  • 6
    7556340 WASHER-THREAD SEAL
    WASHER-THREAD SEAL
  • 7
    7547304 NUT
    NUT
  • 8
    7515511 SCREW
    SCREW
  • 9
    3221099 SPROCKET, 15 SPLINE 3/4W (23 TEETH)
    SPROCKET, 15 SPLINE 3/4W (23 TEETH)
  • 10
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 11
    7547202 NUT
    NUT
  • 12
    7661203 PIN, COTTER
    PIN, COTTER
  • 13
    5812755 GASKET-CHAINCASE COVER
    GASKET-CHAINCASE COVER
  • 14
    1332354 COVER ASSY., W/SIGHT GLASS
    COVER ASSY., W/SIGHT GLASS
  • 15
    7512225 SCREW
    SCREW
  • 16
    3610126 OIL CHECK-SIGHT GLASS
    OIL CHECK-SIGHT GLASS
  • 17
    7518358 SCREW
    SCREW
  • 18
    7556130 WASHER
    WASHER
  • 19
    3222108 SPROCKET, 3/4W (39/15 TEETH)
    SPROCKET, 3/4W (39/15 TEETH)
  • 20
    3221108 CHAIN, HYVO 76P, 3/4W
    CHAIN, HYVO 76P, 3/4W
  • 21
    7052394 PLUG-MAGNETIC
    PLUG-MAGNETIC
  • 22
    5134817 CHAINCASE
    CHAINCASE
  • 23
    7052382 PLUG
    PLUG
