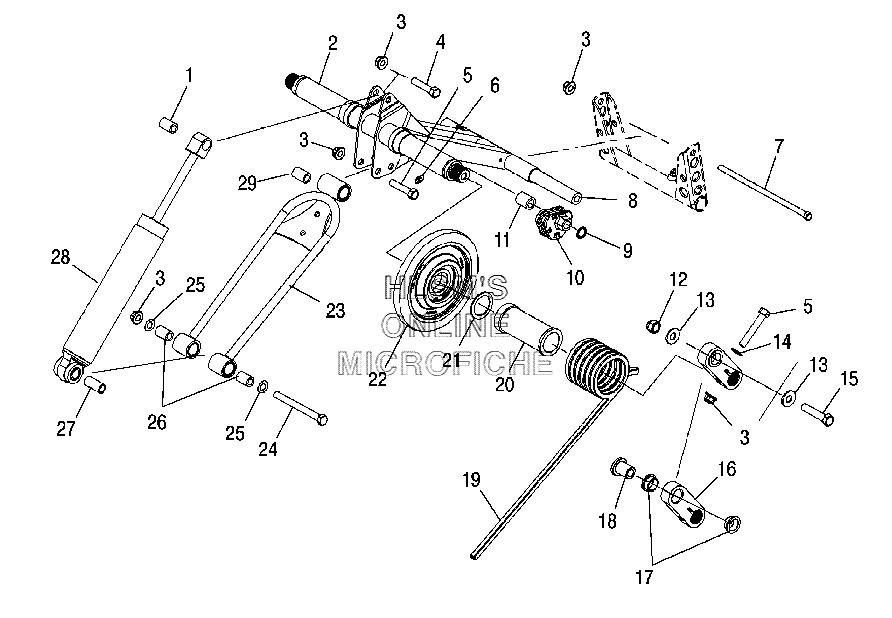

SUSPENSION - REAR TORQUE ARM ASSEMBLY (IQ) для Polaris 600 HO Fusion Dragon (SO6MC6FS) - 2006 года выпуска`
-
№АртикулНазвание
-
15010422 BUSHINGBUSHING
-
21542136-067 RTA, IQ (BLACK)RTA, IQ (BLACK)
-
37547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
47512410 BOLTBOLT
-
57515415 SCREWSCREW
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
77518241 SCREWSCREW
-
85133973 SHAFTSHAFT
-
97080394 CLIP, PUSH ONCLIP, PUSH ON
-
105434589 ROLLER-SPRING, TRI-ADJ (LEFT)ROLLER-SPRING, TRI-ADJ (LEFT)
-
105434590 ROLLER-SPRING, TRI-ADJ (RIGHT)ROLLER-SPRING, TRI-ADJ (RIGHT)
-
115334285 SPACERSPACER
-
127547066 NUTNUT
-
137555984 WASHER, FLATWASHER, FLAT
-
147556188 WASHER, FLATWASHER, FLAT
-
157518271 BOLTBOLT
-
161541967 ARM ASSY. (INCL. 17)ARM ASSY. (INCL. 17)
-
173514331 BUSHINGBUSHING
-
185134046 SHAFT, FLANGESHAFT, FLANGE
-
197043070-067 SPRING-TORSION (.347S, 80, 11#) (LEFT) (BLACK) (STD)SPRING-TORSION (.347S, 80, 11#) (LEFT) (BLACK) (STD)
-
197043071-067 SPRING-TORSION (.347S, 80, 11#) (RIGHT) (BLACK) (STD)SPRING-TORSION (.347S, 80, 11#) (RIGHT) (BLACK) (STD)
-
197043240-067 SPRING-TORSION (.347S, 77, 9#) (LEFT) (BLACK)SPRING-TORSION (.347S, 77, 9#) (LEFT) (BLACK)
-
197043241-067 SPRING-TORSION (.347S, 77, 9#) (RIGHT) (BLACK)SPRING-TORSION (.347S, 77, 9#) (RIGHT) (BLACK)
-
197043079-067 SPRING-TORSION (.359, 12.5#) (LEFT) (BLACK)SPRING-TORSION (.359, 12.5#) (LEFT) (BLACK)
-
197043080-067 SPRING-TORSION (.359, 12.5#) (RIGHT) (BLACK)SPRING-TORSION (.359, 12.5#) (RIGHT) (BLACK)
-
197043128-067 SPRING-TORSION (.405S, 16.25#) (LEFT) (BLACK)SPRING-TORSION (.405S, 16.25#) (LEFT) (BLACK)
-
197043129-067 SPRING-TORSION (.405S, 16.25#) (RIGHT) (BLACK)SPRING-TORSION (.405S, 16.25#) (RIGHT) (BLACK)
-
205434989 SLEEVE-TORSION SPRINGSLEEVE-TORSION SPRING
-
217555939 WASHERWASHER
-
221590001 WHEEL ASSY., PLAINWHEEL ASSY., PLAIN
-
227710471 RING, RETAINER, INT.RING, RETAINER, INT.
-
223514445 BEARINGBEARING
-
231542203-067 WELD-SHOCK ROD, FUSION (BLACK)WELD-SHOCK ROD, FUSION (BLACK)
-
247518263 SCREWSCREW
-
257555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
265135043 BUSHINGBUSHING
-
275333905 SLEEVESLEEVE
-
287043177 SHOCK-R/T, ALUM, FOXSHOCK-R/T, ALUM, FOX
-
287043097 SHOCK-R/T,SHOCK-R/T,
-
295134601 BUSHINGBUSHING
