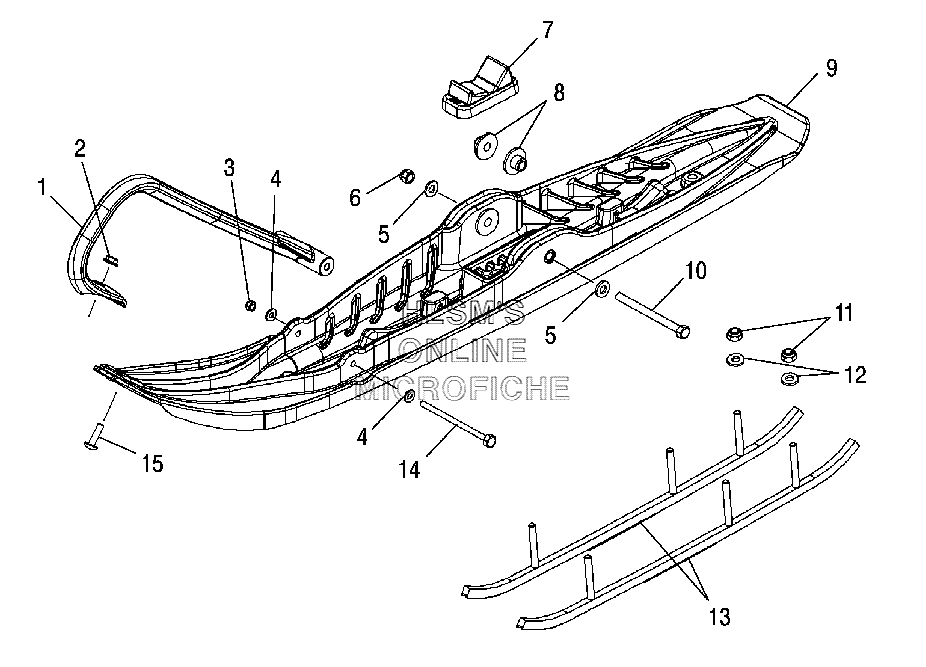

SKI ASSEMBLY для Polaris 600 HO Fusion Dragon (SO6MC6FS) - 2006 года выпуска
-
№АртикулНазвание
-
15435681-293 TOE-PLASTIC, SKI (INDY RED)TOE-PLASTIC, SKI (INDY RED)
-
15435681-513 TOE-PLASTIC, SKI (BLUE)TOE-PLASTIC, SKI (BLUE)
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT-NYLOKNUT-NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHERWASHER
-
67547263 NUT, NYLOKNUT, NYLOK
-
75412864 STOP-SKI RUBBERSTOP-SKI RUBBER
-
85134797 BUSHING-PLASTIC SKIBUSHING-PLASTIC SKI
-
91822808-070 SKI ASSY., PLASTIC (BLACK) (INCL. 7)SKI ASSY., PLASTIC (BLACK) (INCL. 7)
-
107518481 SCREWSCREW
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, WROUGHTWASHER, WROUGHT
-
132875676 SKAG KIT 4'' 60 DEG (PAIR)SKAG KIT 4'' 60 DEG (PAIR)
-
147518047 BOLTBOLT
-
157516317 SCREWSCREW
