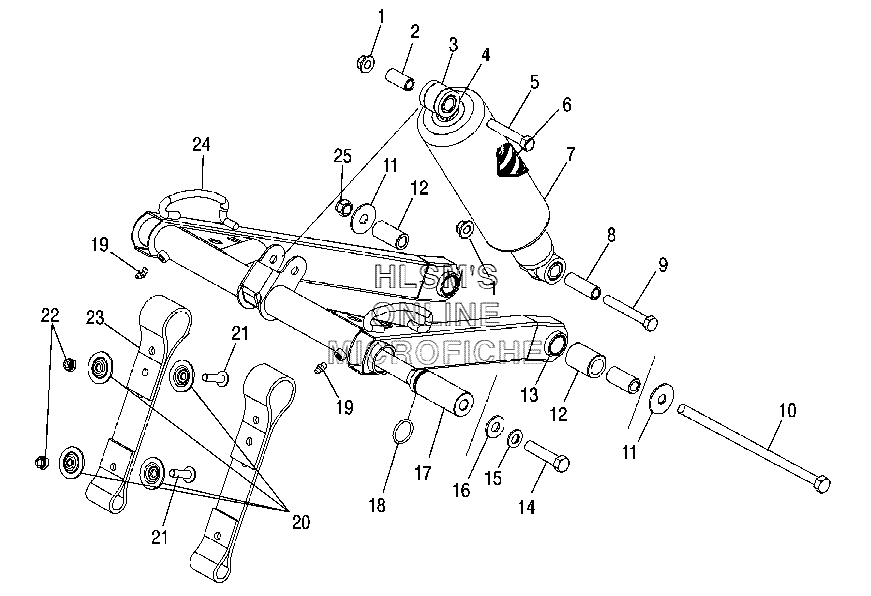

SUSPENSION - FRONT TORQUE ARM ASSEMBLY (IQ) для Polaris 600 HO Fusion Dragon (SO6MC6FS) - 2006 года выпуска
-
№АртикулНазвание
-
17547263 NUTNUT
-
25333905 SLEEVESLEEVE
-
37043178 SHOCK-F/T, 12.1-8.6SHOCK-F/T, 12.1-8.6
-
37043096 SHOCK-F/TSHOCK-F/T
-
45630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
57515415 SCREWSCREW
-
67043147-067 SPRING-COMP (BLACK)SPRING-COMP (BLACK)
-
75433503 SHIELD-SPRINGSHIELD-SPRING
-
85333906 SLEEVESLEEVE
-
97515417 SCREWSCREW
-
107518339 SCREWSCREW
-
117556156 WASHERWASHER
-
125133365 SHAFTSHAFT
-
135133682 BUSHINGBUSHING
-
147518261 SCREWSCREW
-
157552614 WASHER, LOCKWASHER, LOCK
-
167555984 WASHER, FLATWASHER, FLAT
-
175133892 SHAFT-FTA, UPPERSHAFT-FTA, UPPER
-
185411411 O-RINGO-RING
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
205220646 WASHER, DOMEDWASHER, DOMED
-
217518070 SCREWSCREW
-
227542344 NUT, NYLOKNUT, NYLOK
-
235412818 STRAP-LIMITERSTRAP-LIMITER
-
241541948-067 FTA ASSY., SCION (BLACK)FTA ASSY., SCION (BLACK)
-
257542503 NUT, FLEXLOCKNUT, FLEXLOCK
