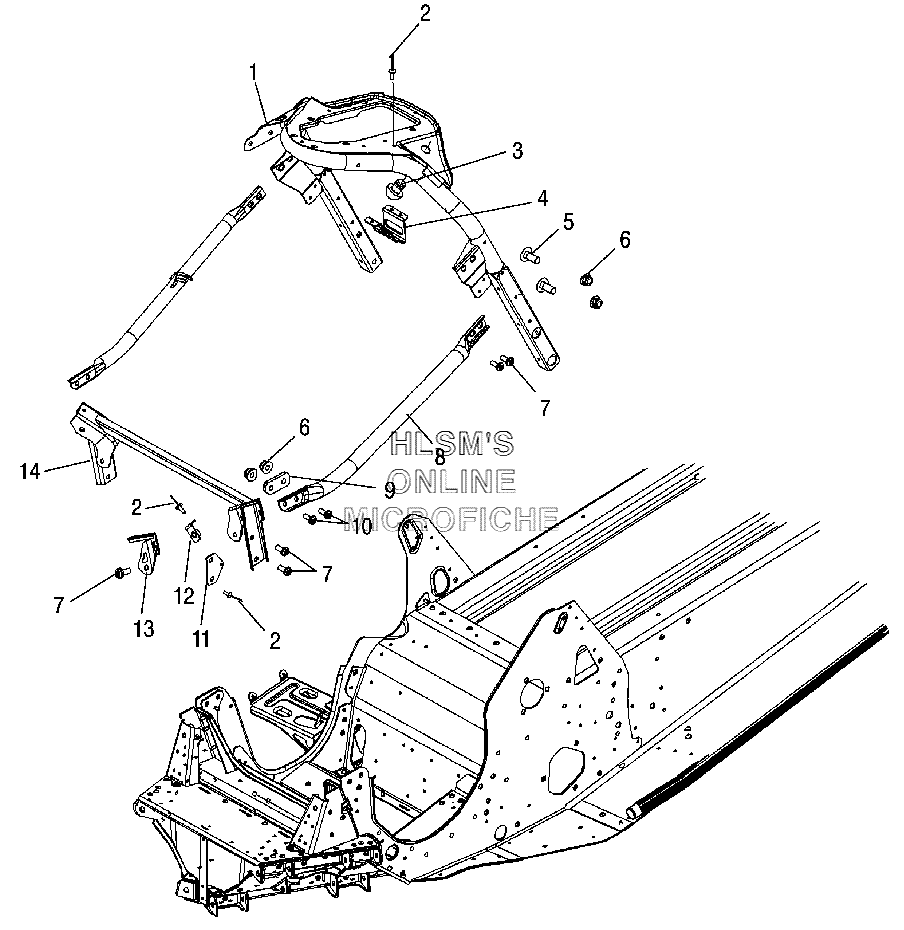

CHASSIS - FRONT #2 для Polaris 600 HO Fusion Dragon (SO6MC6FS) - 2006 года выпуска
-
№АртикулНазвание
-
11014605-067 WELD-STEERING HOOP (BLACK)WELD-STEERING HOOP (BLACK)
-
27661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
35411576 DAMPENER-VIBRATION, W/RIBSDAMPENER-VIBRATION, W/RIBS
-
45249294 BRACKET-AIRBOX STRAPBRACKET-AIRBOX STRAP
-
57512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
67542343 NUT, FLANGENUT, FLANGE
-
77517810 SCREWSCREW
-
85334676-067 BRACE-UPPER BLACK HOOD (LEFT/BLACK)BRACE-UPPER BLACK HOOD (LEFT/BLACK)
-
81015198-067 WELD-BRACE UPPER (RIGHT/BLACK)WELD-BRACE UPPER (RIGHT/BLACK)
-
95135003 SPACER-CHASSIS BRACESPACER-CHASSIS BRACE
-
107518070 SCREWSCREW
-
111014820 PLATE ASSY., NUTPLATE ASSY., NUT
-
121015027 PLATE/NUT ASSY.PLATE/NUT ASSY.
-
135249312-067 BRACKET-EXHAUST SOLENOID (BLACK)BRACKET-EXHAUST SOLENOID (BLACK)
-
141015368-067 WELD-CROSS MEMBER (BLACK)WELD-CROSS MEMBER (BLACK)
