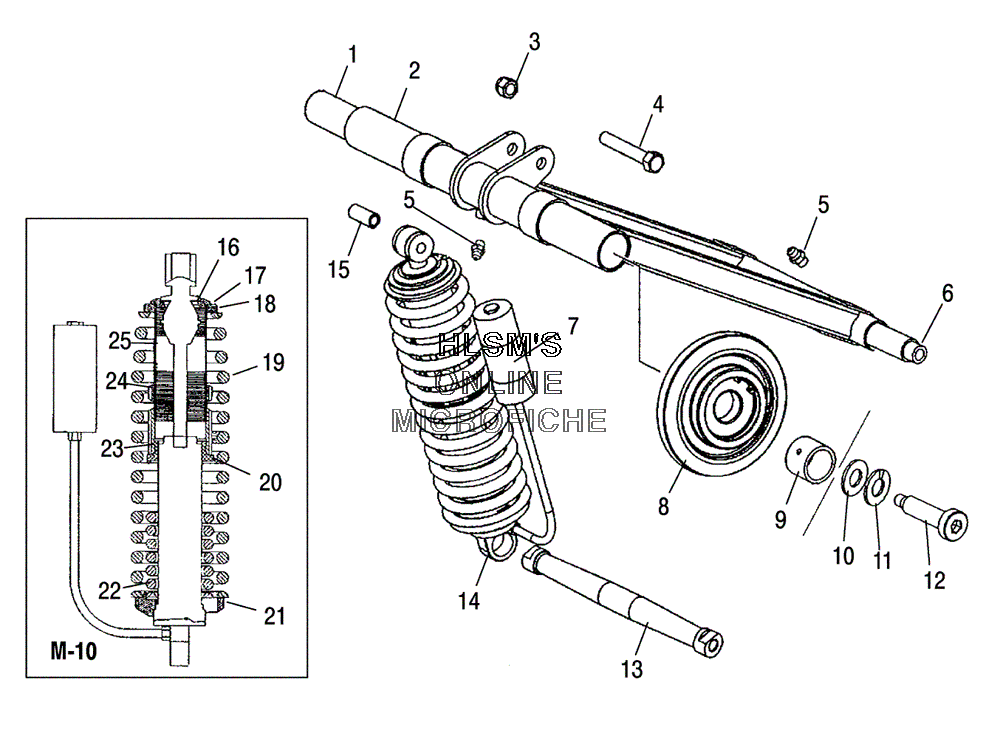

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5132578 SHAFT, M-10 (UPPER)
    SHAFT, M-10 (UPPER)
  • 2
    1541527-067 TORQUE ARM, M-10 (BLACK)
    TORQUE ARM, M-10 (BLACK)
  • 3
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 4
    7515415 SCREW
    SCREW
  • 5
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    5133093 SHAFT (LOWER)
    SHAFT (LOWER)
  • 7
    7079432 DECAL M-10 FOX RES
    DECAL M-10 FOX RES
  • 8
    1590308 WHEEL, OFF-SET 5.60 ASSY
    WHEEL, OFF-SET 5.60 ASSY
  • 8
    3514330 BEARING
    BEARING
  • 9
    5132582 COLLAR BEARING LOCK (REAR)
    COLLAR BEARING LOCK (REAR)
  • 9
    7512257 SCREW SOCKETSET
    SCREW SOCKETSET
  • 10
    7555984 WASHER, FLAT
    WASHER, FLAT
  • 11
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 12
    7517815 SCREW SOC HEAD
    SCREW SOC HEAD
  • 14
    7042216 SHOCK TRACK, REZY M-10 (REAR) (SEE SUSPENSION - REAR TRACK SHOCK FOR DETAILS)
    SHOCK TRACK, REZY M-10 (REAR) (SEE SUSPENSION - REAR TRACK SHOCK FOR DETAILS)
  • 15
    5333905 SLEEVE
    SLEEVE
  • 16
    5244747 CAP ICE
    CAP ICE
  • 17
    5020618 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 18
    5132645 NUT PRELOAD
    NUT PRELOAD
  • 19
    7041935-067 SPRING SHOCK, M-10 (REAR/BLACK)
    SPRING SHOCK, M-10 (REAR/BLACK)
  • 20
    5433882 BUSHING OVER LOAD DEPRESSOR
    BUSHING OVER LOAD DEPRESSOR
  • 21
    5133032 RETAINER SPRING (REAR)
    RETAINER SPRING (REAR)
  • 22
    7041936-067 SPRING OVER/LOAD M-10 (REAR/BLACK)
    SPRING OVER/LOAD M-10 (REAR/BLACK)
  • 23
    5132625 RING ADJUSTER
    RING ADJUSTER
  • 24
    5132643 NUT RING ADJUSTER
    NUT RING ADJUSTER
  • 25
    5132794 SLEEVE OVER LOAD DEPRESSOR
    SLEEVE OVER LOAD DEPRESSOR
