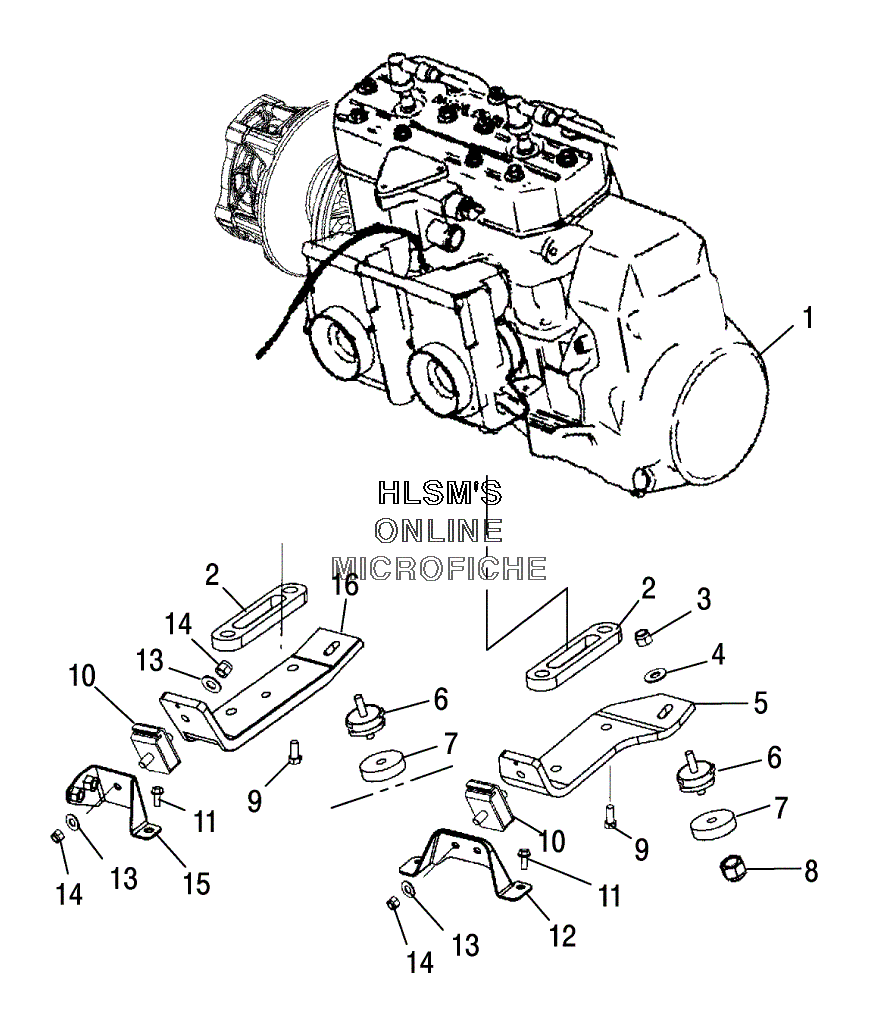

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3086877 ENGINE
    ENGINE
  • 2
    5245021 SPACER ENGINE (.38)
    SPACER ENGINE (.38)
  • 3
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 4
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 5
    5246380 STRAP ENGINE (RIGHT)
    STRAP ENGINE (RIGHT)
  • 6
    3021220 MOUNT ENGINE
    MOUNT ENGINE
  • 7
    5245117 SPACER ENGINE MOUNT .44
    SPACER ENGINE MOUNT .44
  • 8
    7547180 NUT FLANGED, 3/8-16 NYLON Z
    NUT FLANGED, 3/8-16 NYLON Z
  • 9
    7517399 SCREW
    SCREW
  • 10
    3021206 MOUNT ENGINE 3/8-16 RECT
    MOUNT ENGINE 3/8-16 RECT
  • 11
    7517854 SCREW SPEC Y
    SCREW SPEC Y
  • 12
    5245044 BRACKET ENGINE MOUNT FORMED (RIGHT)
    BRACKET ENGINE MOUNT FORMED (RIGHT)
  • 13
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 14
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 15
    1013397 WELD ENGINE MOUNT BRACKET (LEFT)
    WELD ENGINE MOUNT BRACKET (LEFT)
  • 16
    5245473 STRAP ENGINE MOUNT (LEFT)
    STRAP ENGINE MOUNT (LEFT)
