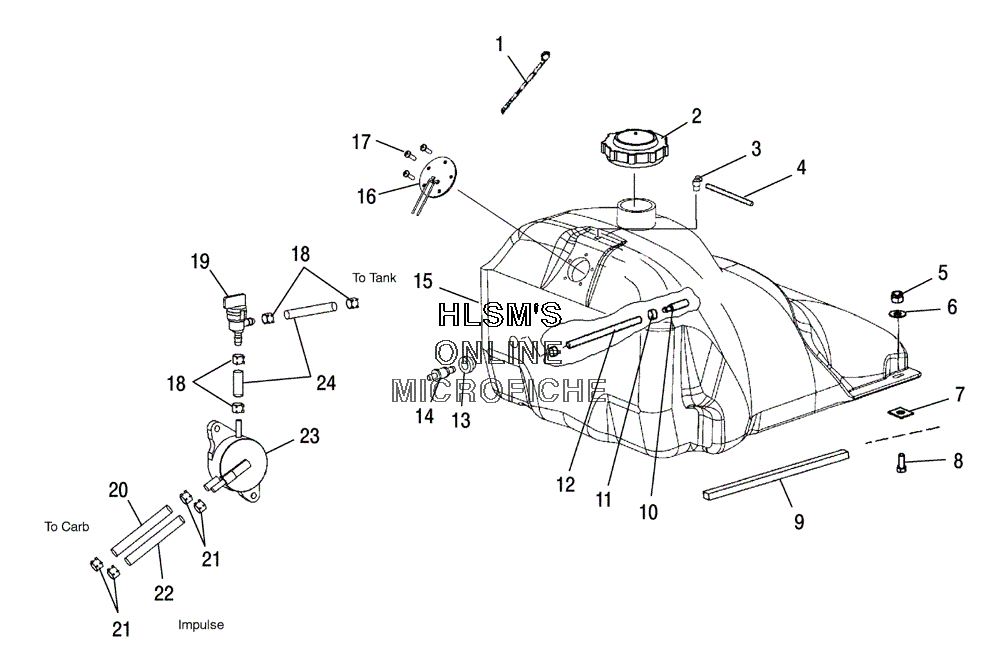

FUEL TANK для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE RELEASABLE (5 1/2")
    CABLE TIE RELEASABLE (5 1/2")
  • 2
    2511195-070 CAP, FUEL ASSY (BLACK)
    CAP, FUEL ASSY (BLACK)
  • 2
    5810512 GASKET
    GASKET
  • 3
    7052095 FITTING (90 DEG, 1/8)
    FITTING (90 DEG, 1/8)
  • 4
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 5
    7542122 NUT NYLOK
    NUT NYLOK
  • 6
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 7
    7670021 NUT, SPEED
    NUT, SPEED
  • 8
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 10
    7052301 PICK UP FUEL WITH FILTER 105 MICRON
    PICK UP FUEL WITH FILTER 105 MICRON
  • 11
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 12
    8350019-160 FUEL LINE ESTER
    FUEL LINE ESTER
  • 13
    7052028 GROMMET
    GROMMET
  • 14
    7052321 FITTING 1/4 STRAIGHT DEX
    FITTING 1/4 STRAIGHT DEX
  • 15
    2520329 FUEL TANK WITH SEND ASSY (INCL. 3-10)
    FUEL TANK WITH SEND ASSY (INCL. 3-10)
  • 16
    2410352 SENDER FUEL, 12 GAL (LEFT)
    SENDER FUEL, 12 GAL (LEFT)
  • 17
    2410456 PKG HEADWEAR SENDING UNIT (INCL. GASKET AND SCREWS)
    PKG HEADWEAR SENDING UNIT (INCL. GASKET AND SCREWS)
  • 18
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    7052249 VALVE FUEL PLASTIC 90Ш 1/4 HOSE
    VALVE FUEL PLASTIC 90Ш 1/4 HOSE
  • 20
    8350017-600 FUEL LINE ETHER 5/16" (RED)
    FUEL LINE ETHER 5/16" (RED)
  • 21
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    8450040-600 LINE FUEL (1/4 ID/600 CM)
    LINE FUEL (1/4 ID/600 CM)
  • 23
    3086998 FUEL PUMP ASSY
    FUEL PUMP ASSY
  • 23
    3084222 DIAPHRAGM GASKET ASSY
    DIAPHRAGM GASKET ASSY
  • 23
    3081286 SCREW WITH WASHER
    SCREW WITH WASHER
  • 24
    8350018-600 TUBING ETHER ERETHANE (160 CM)
    TUBING ETHER ERETHANE (160 CM)
