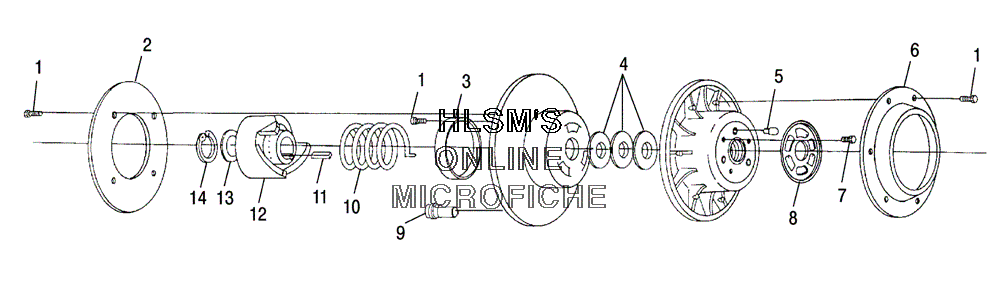

CLUTCH - DRIVEN для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE DRIVEN, VENTEDPLATE DRIVEN, VENTED
-
33569803 BUSHING DRIVEN LARGE DUBUSHING DRIVEN LARGE DU
-
47556804 WASHERWASHER
-
47555898 WASHERWASHER
-
47556076 WASHERWASHER
-
47555865 WASHER FLATWASHER FLAT
-
55020653 PIN ADJUSTABLE DRIVENPIN ADJUSTABLE DRIVEN
-
65243157 CAP DRIVEN, VENTEDCAP DRIVEN, VENTED
-
77515133 SCREWSCREW
-
85222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
95430466 BUTTON RAMPBUTTON RAMP
-
107041782 SPRING CLUTCH (CHROME SILICON BLACK)SPRING CLUTCH (CHROME SILICON BLACK)
-
117721103 KEY SQUAREKEY SQUARE
-
125130895 RAMP, DRIVEN 36 DEGREERAMP, DRIVEN 36 DEGREE
-
137556804 WASHERWASHER
-
147714804 RING, RETAININGRING, RETAINING
-
141321927 DRIVEN CLUTCH, BSC 204 W/B ASSYDRIVEN CLUTCH, BSC 204 W/B ASSY
