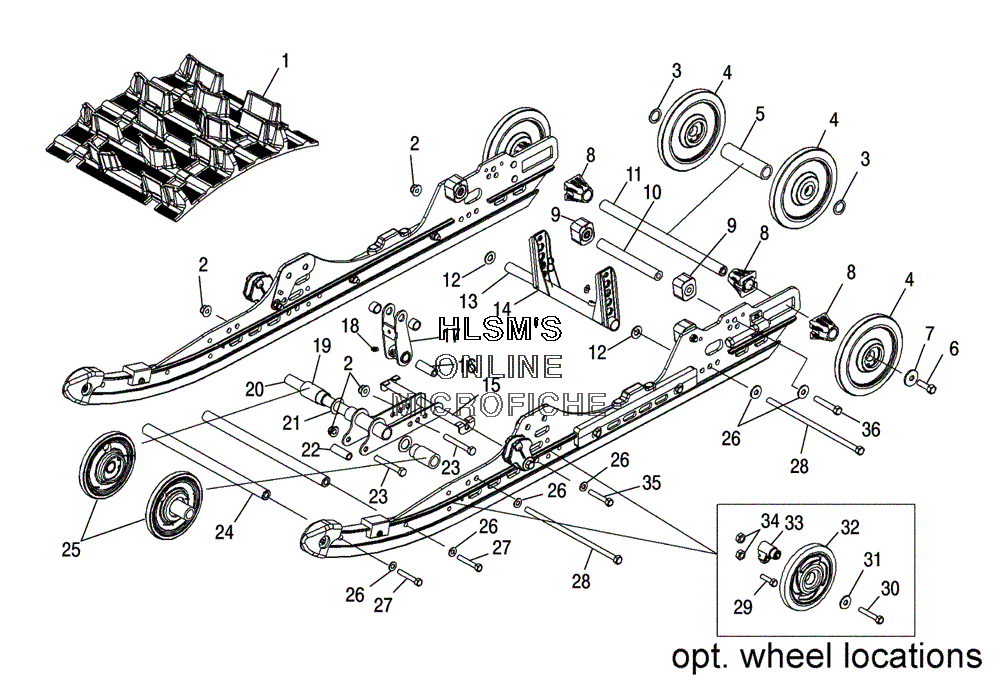

SUSPENSION - REAR для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5412763 TRACK
    TRACK
  • 1
    5222840 CLIP, GUIDE
    CLIP, GUIDE
  • 2
    7547263 NUT NYLOK
    NUT NYLOK
  • 3
    7555918 BUSHING
    BUSHING
  • 4
    1594087 WHEEL, PLAIN ASSY (6.38 O.D.)
    WHEEL, PLAIN ASSY (6.38 O.D.)
  • 4
    7710444 RING, RETAINING
    RING, RETAINING
  • 4
    3514012 BEARING
    BEARING
  • 5
    5333283 SPACER, IDLER CENTER
    SPACER, IDLER CENTER
  • 6
    7517731 BOLT
    BOLT
  • 7
    7556130 WASHER
    WASHER
  • 8
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 9
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 9
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 10
    5134796 SHAFT COUPLER BLOCK
    SHAFT COUPLER BLOCK
  • 11
    5132066 SHAFT IDLER
    SHAFT IDLER
  • 12
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 13
    5334026 SHAFT ANODIZE
    SHAFT ANODIZE
  • 14
    1541713-067 WELD PIVOT ARM (REAR/BLACK)
    WELD PIVOT ARM (REAR/BLACK)
  • 15
    1541711-067 WELD MOUNT, SHOCK (BLACK)
    WELD MOUNT, SHOCK (BLACK)
  • 16
    5133233 BUSHING
    BUSHING
  • 17
    1542055-067 WELD SHOCK PIVOT ARM (BLACK)
    WELD SHOCK PIVOT ARM (BLACK)
  • 18
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 19
    5132071 SPACER BOGIE WHEEL PRESS
    SPACER BOGIE WHEEL PRESS
  • 20
    5133232 SHAFT AL
    SHAFT AL
  • 21
    7556301 BUSHING
    BUSHING
  • 22
    5333906 SLEEVE
    SLEEVE
  • 23
    7515417 SCREW
    SCREW
  • 24
    5134078 SHAFT C'BORE
    SHAFT C'BORE
  • 25
    1541642 WHEEL, 5.62 WITH HOLE ASSY
    WHEEL, 5.62 WITH HOLE ASSY
  • 26
    7556188 WASHER FLAT
    WASHER FLAT
  • 27
    7518005 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 28
    7517921 SCREW HEXAGON
    SCREW HEXAGON
  • 29
    7515317 BOLT
    BOLT
  • 30
    7515346 SCREW
    SCREW
  • 31
    7556179 WASHER SPRING, CON
    WASHER SPRING, CON
  • 32
    1590317 WHEEL, BOGIE PLAIN ASSY
    WHEEL, BOGIE PLAIN ASSY
  • 32
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 32
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 33
    5631065 BLOCK WHEEL MOUNT
    BLOCK WHEEL MOUNT
  • 34
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 35
    7517247 SCREW
    SCREW
  • 36
    7515551 SCREW
    SCREW
