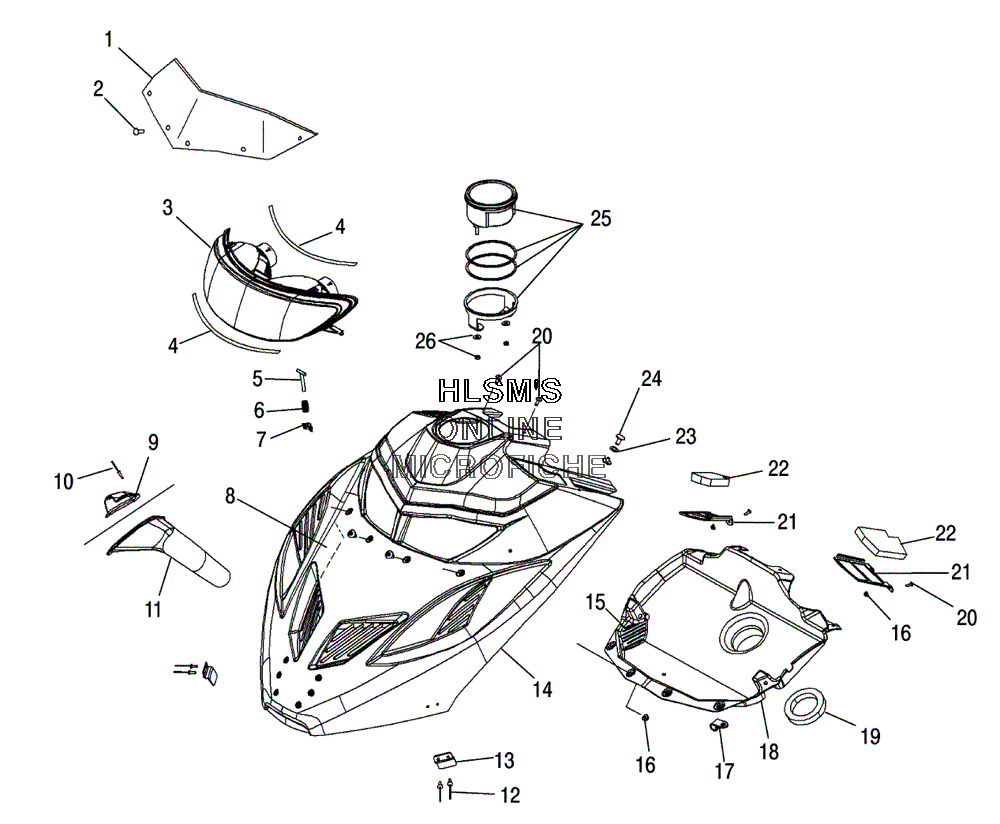

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5436033 WINDSHIELD
    WINDSHIELD
  • 2
    7621509 RIVET, PLASTI LOCK
    RIVET, PLASTI LOCK
  • 3
    2410132 HEADLAMP, 2-BULB ASSY
    HEADLAMP, 2-BULB ASSY
  • 3
    2870448 BULB, QUARTZ.HEADLIGHT H4, 60/55W
    BULB, QUARTZ.HEADLIGHT H4, 60/55W
  • 3
    4032063 RETAINER, HEADLIGHT BULB
    RETAINER, HEADLIGHT BULB
  • 4
    5812821 FOAM HEADLIGHT SEAL (22")
    FOAM HEADLIGHT SEAL (22")
  • 4
    5812822 FOAM HEADLIGHT SEAL (26")
    FOAM HEADLIGHT SEAL (26")
  • 5
    7517872 BOLT TEE ADJUSTER (2.25)
    BOLT TEE ADJUSTER (2.25)
  • 6
    7041954 SPRING HEADLIGHT ADJUST
    SPRING HEADLIGHT ADJUST
  • 7
    7080887 KNOB, HEADLIGHT ADJUST LOCKING
    KNOB, HEADLIGHT ADJUST LOCKING
  • 8
    5812836 FOIL HOOD (RIGHT)
    FOIL HOOD (RIGHT)
  • 9
    5436173 SCOOP BRAKE DUCT
    SCOOP BRAKE DUCT
  • 10
    7621334 RIVET
    RIVET
  • 11
    2633094 BRAKE DUCT ASSY
    BRAKE DUCT ASSY
  • 11
    5812823 FOIL BRAKE DUCT
    FOIL BRAKE DUCT
  • 12
    7621472 RIVET
    RIVET
  • 13
    5249202 BRACKET HOOD RETENTION
    BRACKET HOOD RETENTION
  • 14
    2633051-293 HOOD, 05 RACER SERVICE ASSY (INDY RED) (INCL. 8)
    HOOD, 05 RACER SERVICE ASSY (INDY RED) (INCL. 8)
  • 15
    5812840 FOIL PLENUM
    FOIL PLENUM
  • 16
    7518287 NUT NYLOK INSERT
    NUT NYLOK INSERT
  • 17
    7080372 CLAMP, RETAINER
    CLAMP, RETAINER
  • 18
    5436030 (W/O FOIL)
    (W/O FOIL)
  • 19
    5812794 FOAM INTAKE
    FOAM INTAKE
  • 20
    7518281 SCREW TORX Y
    SCREW TORX Y
  • 21
    5249217 BRACKET INTAKE FOAM, HOOD (LEFT)
    BRACKET INTAKE FOAM, HOOD (LEFT)
  • 21
    5249221 BRACKET INTAKE FOAM, HOOD (RIGHT)
    BRACKET INTAKE FOAM, HOOD (RIGHT)
  • 22
    5812818 FOAM INTAKE, HOOD
    FOAM INTAKE, HOOD
  • 23
    7558203 WASHER
    WASHER
  • 24
    7621601 RIVET
    RIVET
  • 25
    2873888 TACHOMETEROMETER, 6 PULSE KIT (WHITE)
    TACHOMETEROMETER, 6 PULSE KIT (WHITE)
  • 25
    3280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBER
    CUSHION, TACHOMETER/SPEEDOMETER RUBBER
  • 25
    3280210 BRACKET, TACHOMETER/SPEEDOMETER (5")
    BRACKET, TACHOMETER/SPEEDOMETER (5")
  • 26
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 26
    7546703 NUT, NYLOK
    NUT, NYLOK
