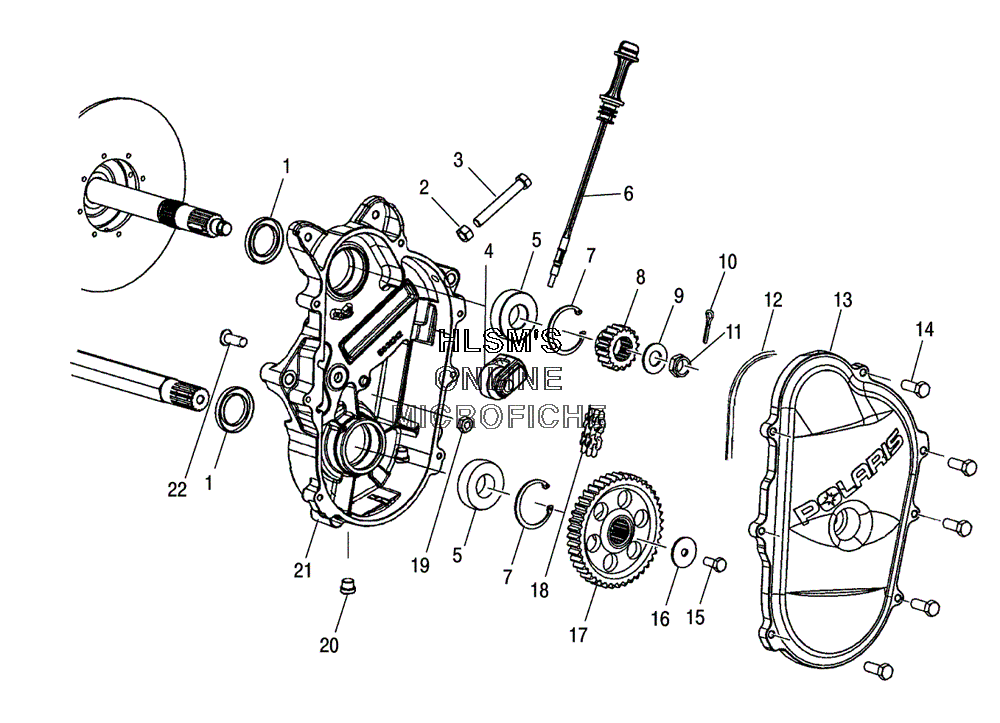

CHAINCASE ASSEMBLY для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37517227 SCREWSCREW
-
41332266 TIGHTENER, SLIDING ASSY 1.265WTIGHTENER, SLIDING ASSY 1.265W
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSYDIPSTICK ASSY
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221165 SPROCKET (19T/15T, 7/8W SPLINE HYVO CM)SPROCKET (19T/15T, 7/8W SPLINE HYVO CM)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUT THIN, NYLON INSERT YNUT THIN, NYLON INSERT Y
-
125411497 GASKET, O-RINGGASKET, O-RING
-
135631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
147512242 SCREWSCREW
-
157517979 SCREW HEXAGON HEAD NYLONSCREW HEXAGON HEAD NYLON
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222111 SPROCKET (45T/15T 3/4W SPLINE HYVO CM)SPROCKET (45T/15T 3/4W SPLINE HYVO CM)
-
183222132 CHAIN HYVOCHAIN HYVO
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134260 CHAINCSE (7.92 CD)CHAINCSE (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
