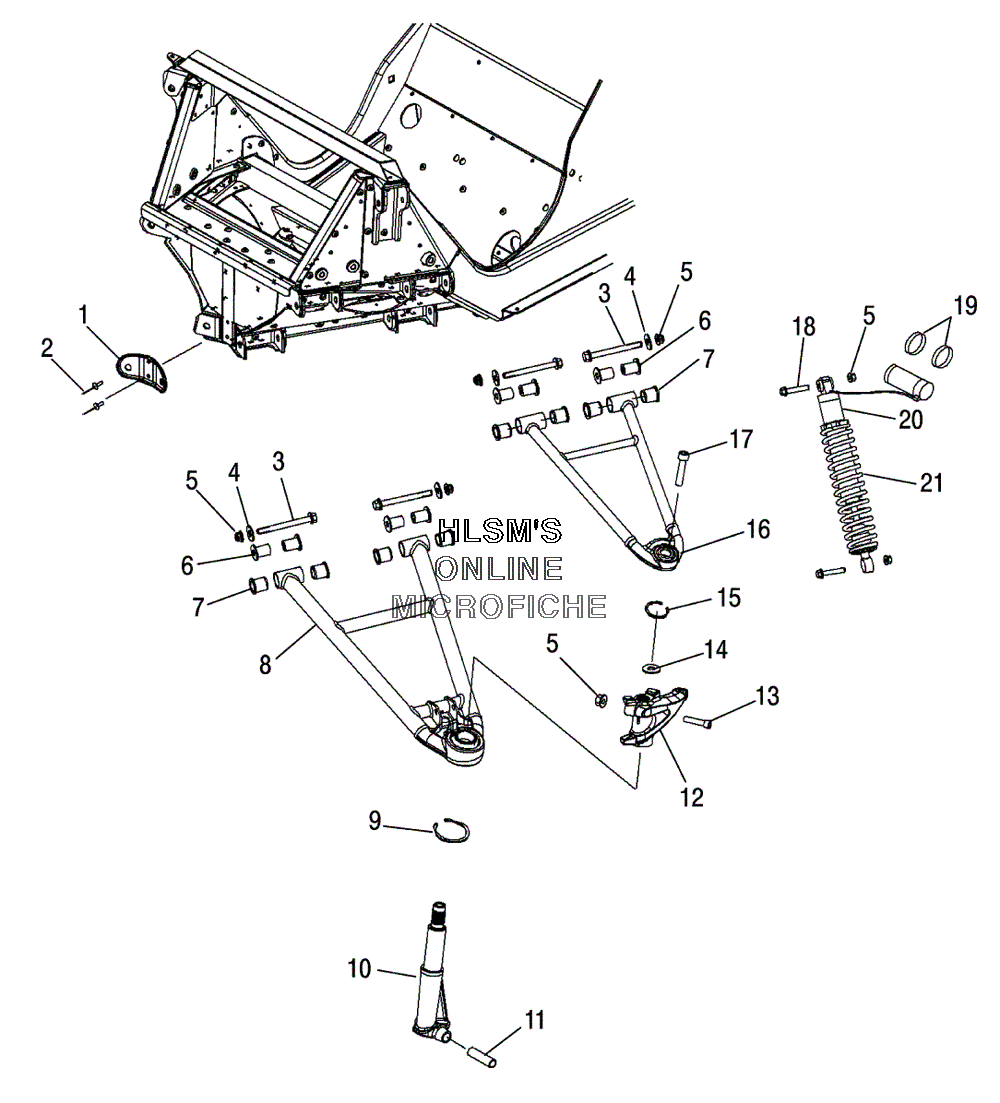

SUSPENSION - FRONT для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска

№

Артикул

Название
1

5247372 BRACE A ARM (FRONT/LOWER)

BRACE A ARM (FRONT/LOWER)
2

7661637 RIVET, INTERLOCK Z

RIVET, INTERLOCK Z
3

7517645 SCREW

SCREW
4

7556188 WASHER FLAT

WASHER FLAT
5

7547263 NUT NYLOK

NUT NYLOK
6

5134686 SHAFT PIVOT, CONTROL ARM

SHAFT PIVOT, CONTROL ARM
7

3514491 BUSHING CONTROL ARM

BUSHING CONTROL ARM
8

2202942 LCA, MOD SVC KIT (LEFT) (INCL. 5, 7, 9)

LCA, MOD SVC KIT (LEFT) (INCL. 5, 7, 9)
8

2202943 LCA, MOD SVC KIT (RIGHT) (INCL. 5, 7, 9)

LCA, MOD SVC KIT (RIGHT) (INCL. 5, 7, 9)
9

7710559 RING SNAP

RING SNAP
10

5134843 SPINDLE, MACH (LOWER)

SPINDLE, MACH (LOWER)
10

7080306 FITTING, LUBE WITH BALL CHECK

FITTING, LUBE WITH BALL CHECK
11

5010158 BUSHING, PIVOT

BUSHING, PIVOT
12

5134687 SPINDLE MACHINE (LEFT/UPPER)

SPINDLE MACHINE (LEFT/UPPER)
12

5134688 SPINDLE MACHINE (UPPER/RIGHT)

SPINDLE MACHINE (UPPER/RIGHT)
13

7518433 SCREW SOCKET HEAD

SCREW SOCKET HEAD
14

7556344 WASHER

WASHER
15

7710562 RING RETAINING, SERIES 156

RING RETAINING, SERIES 156
16

2202940 UCA, MODULE SERVICE KIT (LEFT) (INCL. 5, 7, 15)

UCA, MODULE SERVICE KIT (LEFT) (INCL. 5, 7, 15)
16

2202941 UCA, MODULE SERVICE KIT (RIGHT) (INCL. 5, 7, 15)

UCA, MODULE SERVICE KIT (RIGHT) (INCL. 5, 7, 15)
17

7518409 SCREW SOCKET HEAD

SCREW SOCKET HEAD
18

7515415 SCREW

SCREW
19

7080560 CLAMP, HOSE

CLAMP, HOSE
21

7043139-133 SPRING COMPRESSION (WHITE) (STD)

SPRING COMPRESSION (WHITE) (STD)
21

7043159-067 SPRING COMPRESSION (OPT)

SPRING COMPRESSION (OPT)
21

7043160-067 SPRING COMPRESSION (BLACK) (OPT)

SPRING COMPRESSION (BLACK) (OPT)
21

7043161-067 SPRING COMPRESSION (BLACK) (OPT)

SPRING COMPRESSION (BLACK) (OPT)
21

7043162-067 SPRING COMPRESSION (BLACK) (OPT)

SPRING COMPRESSION (BLACK) (OPT)
