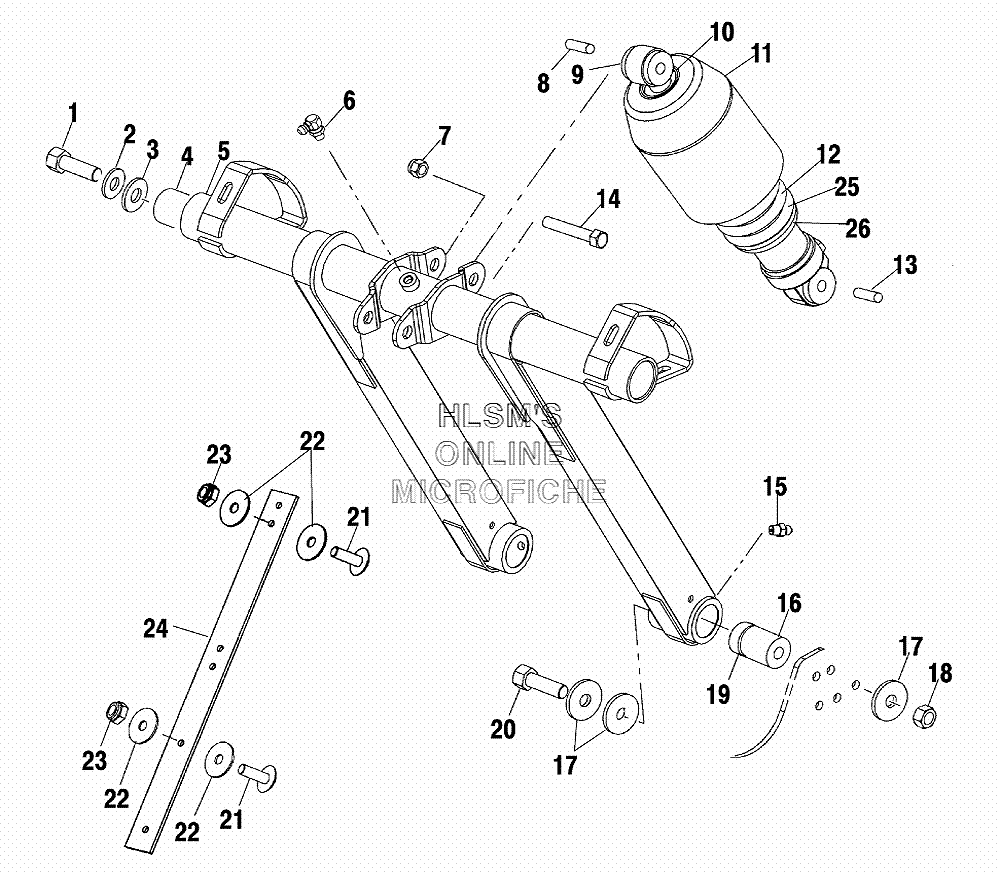

SUSPENSION - FRONT TORQUE ARM ASSEMBLY (EDGE) для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT (UPPER)SHAFT (UPPER)
-
51541779-312 WELD TORQUE ARM, EDGE (INDY BLUE/FRONT)WELD TORQUE ARM, EDGE (INDY BLUE/FRONT)
-
67080510 FITTING, ZERK 90DEGFITTING, ZERK 90DEG
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVESLEEVE
-
97041939 SHOCK FRONT TRACKSHOCK FRONT TRACK
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
115430671 SHIELD SPRINGSHIELD SPRING
-
127041253-067 SPRING COMPRESSION (BLACK)SPRING COMPRESSION (BLACK)
-
135333906 SLEEVESLEEVE
-
147515415 SCREWSCREW
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165133308 SHAFT ORINGSHAFT ORING
-
177556156 WASHERWASHER
-
187547066 NUT 7/16-20, NYLOK, YNUT 7/16-20, NYLOK, Y
-
195412022 O-RINGO-RING
-
207512597 BOLT HEXAGON CAP GR5, YBOLT HEXAGON CAP GR5, Y
-
217517313 SCREWSCREW
-
227556175 WASHERWASHER
-
237542344 NUT, NYLOKNUT, NYLOK
-
245412140 STRAP LIMITER (FRONT)STRAP LIMITER (FRONT)
-
255245067 RETAINER SPRING GAB, PLATEDRETAINER SPRING GAB, PLATED
-
265210953 RETAINER, SPRINGRETAINER, SPRING
