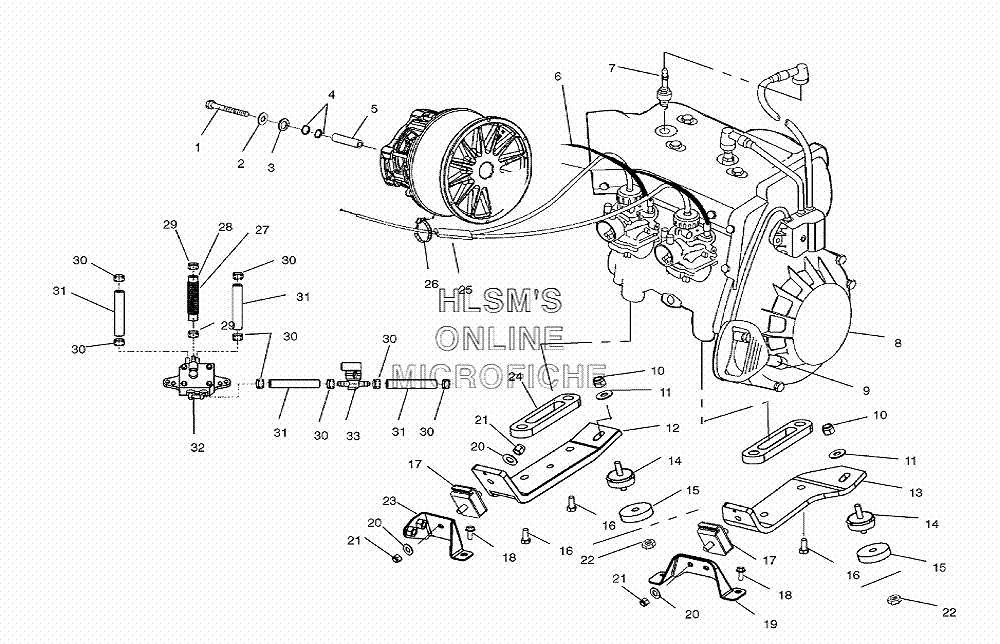

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517776 SCREW, HEXAGON/CAPSCREW, HEXAGON/CAP
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACERSPACER
-
67080290 CABLE, CHOKECABLE, CHOKE
-
73070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
83085618 SHORT BLOCK ASSEMBLYSHORT BLOCK ASSEMBLY
-
95431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
107542451 NUT, NYLOKNUT, NYLOK
-
117555893 WASHER, FLATWASHER, FLAT
-
125245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
135246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
143021220 MOUNT ENGINE, 3/8-16MOUNT ENGINE, 3/8-16
-
155245117 SPACER ENGINE MOUNT (.44)SPACER ENGINE MOUNT (.44)
-
167517399 SCREWSCREW
-
173021206 MOUNT ENGINE, RECTMOUNT ENGINE, RECT
-
187517854 SCREWSCREW
-
195245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
207555806 WASHER, FLATWASHER, FLAT
-
217547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
227547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
231013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
245245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
-
257080888 CABLE THROTTLECABLE THROTTLE
-
267080138 CABLE TIECABLE TIE
-
278360052-305 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
288450040-600 LINE FUEL (1/4 ID/600 CM.)LINE FUEL (1/4 ID/600 CM.)
-
297080003 CLAMP, HOSECLAMP, HOSE
-
307080307 CLAMP, HOSECLAMP, HOSE
-
318350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
337052248 VALVE FUEL PLASTIC, INLINE (1/4")VALVE FUEL PLASTIC, INLINE (1/4")
