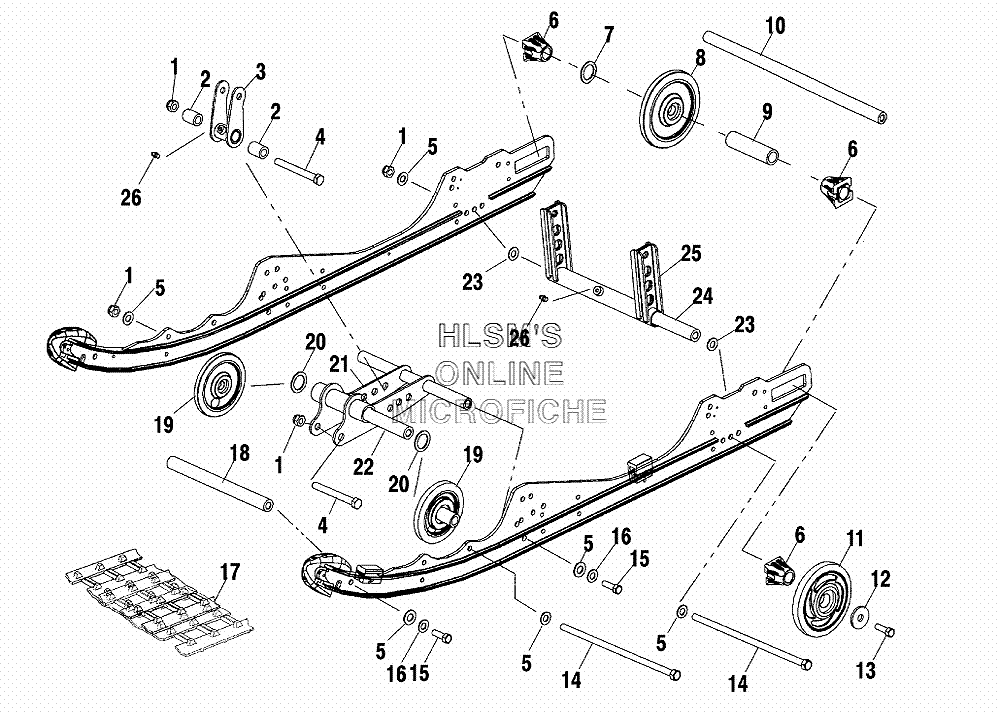

SUSPENSION - REAR TRACK (EDGE) для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25133233 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM (BLACK)SHOCK PIVOT ARM (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER IDLERSPACER IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
95333285 SPACER IDLER, LONGSPACER IDLER, LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-312 WHEEL IDLER, HP ASSY (INDY BLUE)WHEEL IDLER, HP ASSY (INDY BLUE)
-
117710444 RING RETAININGRING RETAINING
-
113514384 BEARING NTNBEARING NTN
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517921 SCREW HEXAGON/LP, GR8-YSCREW HEXAGON/LP, GR8-Y
-
157517247 SCREWSCREW
-
167552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
175411057 TRACK, 121" X.82 MODULE (LIGHTNING/.82 ")TRACK, 121" X.82 MODULE (LIGHTNING/.82 ")
-
175222839 CLIP, TRACK (CAMOPLAST)CLIP, TRACK (CAMOPLAST)
-
175222840 CLIP, GUIDECLIP, GUIDE
-
185020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
191541485 WHEEL, ASSY W/HOLE (5.35, .984 ID)WHEEL, ASSY W/HOLE (5.35, .984 ID)
-
207556301 BUSHINGBUSHING
-
211541711-067 WELD MOUNT SHOCK (BLACK)WELD MOUNT SHOCK (BLACK)
-
225132490 SHAFTSHAFT
-
237555893 WASHER, FLATWASHER, FLAT
-
245333404 SHAFTSHAFT
-
251541707-067 WELD ARM, PIVOT (BLACK/REAR)WELD ARM, PIVOT (BLACK/REAR)
-
267080424 FITTING, LUBRICATIONFITTING, LUBRICATION
