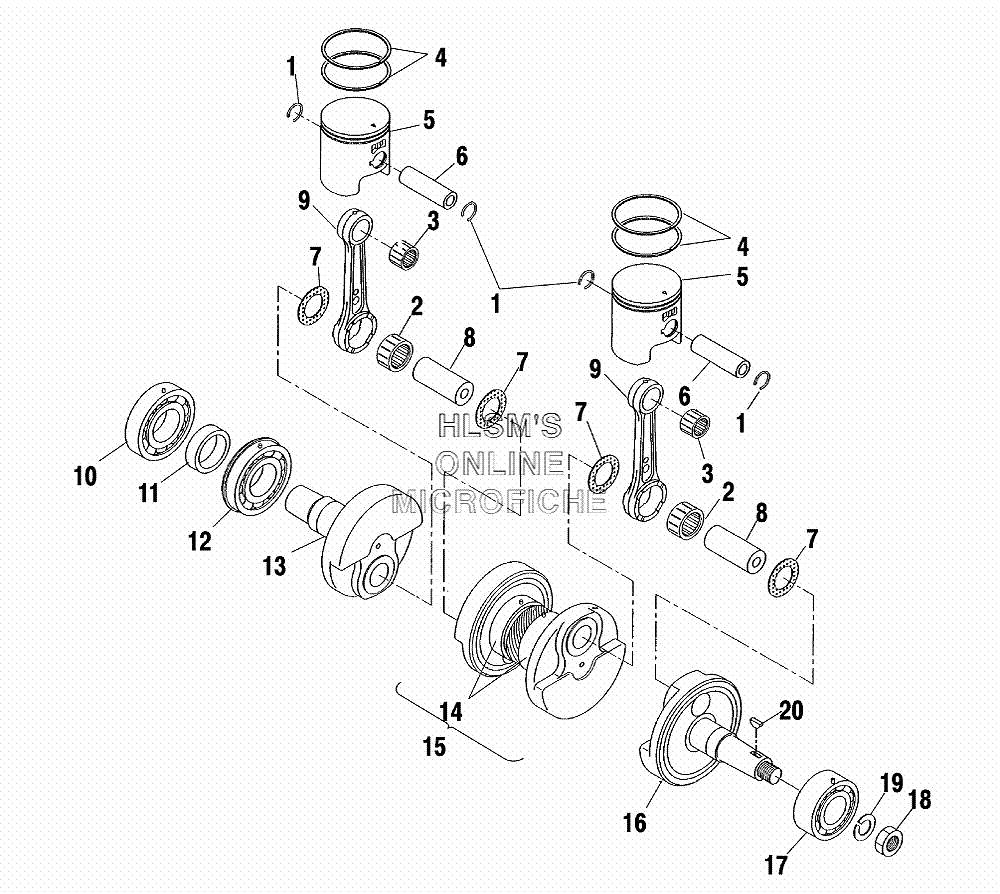

PISTON AND CRANKSHAFT для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 2
    3086390 BEARING END, LARGE
    BEARING END, LARGE
  • 3
    3083216 BEARING END, SMALL
    BEARING END, SMALL
  • 4
    3086988 SET PISTON RING (STD)
    SET PISTON RING (STD)
  • 4
    3086989 SET PISTON RING (0.25MM/.010O/S)
    SET PISTON RING (0.25MM/.010O/S)
  • 4
    3086990 SET PISTON RING (2 (0.50MM/.020O/S)
    SET PISTON RING (2 (0.50MM/.020O/S)
  • 5
    3087024 PISTON (STD) (IF BUILT BEFORE 8/13/02)
    PISTON (STD) (IF BUILT BEFORE 8/13/02)
  • 5
    3088216 PISTON (STD) (IF BUILT AFTER 8/13/02)
    PISTON (STD) (IF BUILT AFTER 8/13/02)
  • 5
    3087025 PISTON (0.25M/.010O/S) (IF BUILT BEFORE 8/13/02)
    PISTON (0.25M/.010O/S) (IF BUILT BEFORE 8/13/02)
  • 5
    3088217 PISTON (0.25M/.010O/S) (IF BUILT AFTER 8/13/02)
    PISTON (0.25M/.010O/S) (IF BUILT AFTER 8/13/02)
  • 5
    3087026 SET, PISTON (0.50M/.020O/S) (IF BUILT BEFORE 8/13/02)
    SET, PISTON (0.50M/.020O/S) (IF BUILT BEFORE 8/13/02)
  • 5
    3088218 SET, PISTON (0.50M/.020O/S) (IF BUILT AFTER 8/13/02)
    SET, PISTON (0.50M/.020O/S) (IF BUILT AFTER 8/13/02)
  • 6
    3083838 PIN, PISTON
    PIN, PISTON
  • 7
    3083277 SPACER CRANKPIN
    SPACER CRANKPIN
  • 8
    3083456 PIN, CRANK 2
    PIN, CRANK 2
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING BALL
    BEARING BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING BALL
    BEARING BALL
  • 13
    3085675 CRANKSHAFT #3 (PTO SIDE) (IF BUILT BEFORE 8/13/02)
    CRANKSHAFT #3 (PTO SIDE) (IF BUILT BEFORE 8/13/02)
  • 13
    3088199 CRANKSHAFT #3 (PTO SIDE) (IF BUILT AFTER 8/13/02)
    CRANKSHAFT #3 (PTO SIDE) (IF BUILT AFTER 8/13/02)
  • 14
    3084586 BEARING BALL
    BEARING BALL
  • 15
    3085674 CRANKSHAFT #2 (CENTER) (INCL. 8)
    CRANKSHAFT #2 (CENTER) (INCL. 8)
  • 16
    3087176 CRANKSHAFT, ASSY (INCL. 7-9, 10, 14-15) (IF BUILT BEFORE 8/13/02)
    CRANKSHAFT, ASSY (INCL. 7-9, 10, 14-15) (IF BUILT BEFORE 8/13/02)
  • 16
    3088198 CRANKSHAFT, ASSY (INCL. 7-9, 10, 14-15) (IF BUILT AFTER 8/13/02)
    CRANKSHAFT, ASSY (INCL. 7-9, 10, 14-15) (IF BUILT AFTER 8/13/02)
  • 16
    3087177 CRANKSHAFT #1 (MAG SIDE)
    CRANKSHAFT #1 (MAG SIDE)
  • 17
    3084681 BEARING BALL
    BEARING BALL
  • 18
    3083093 NUT
    NUT
  • 19
    3083094 WASHER SPRING
    WASHER SPRING
  • 20
    3080130 KEY, WOODRUFF
    KEY, WOODRUFF
