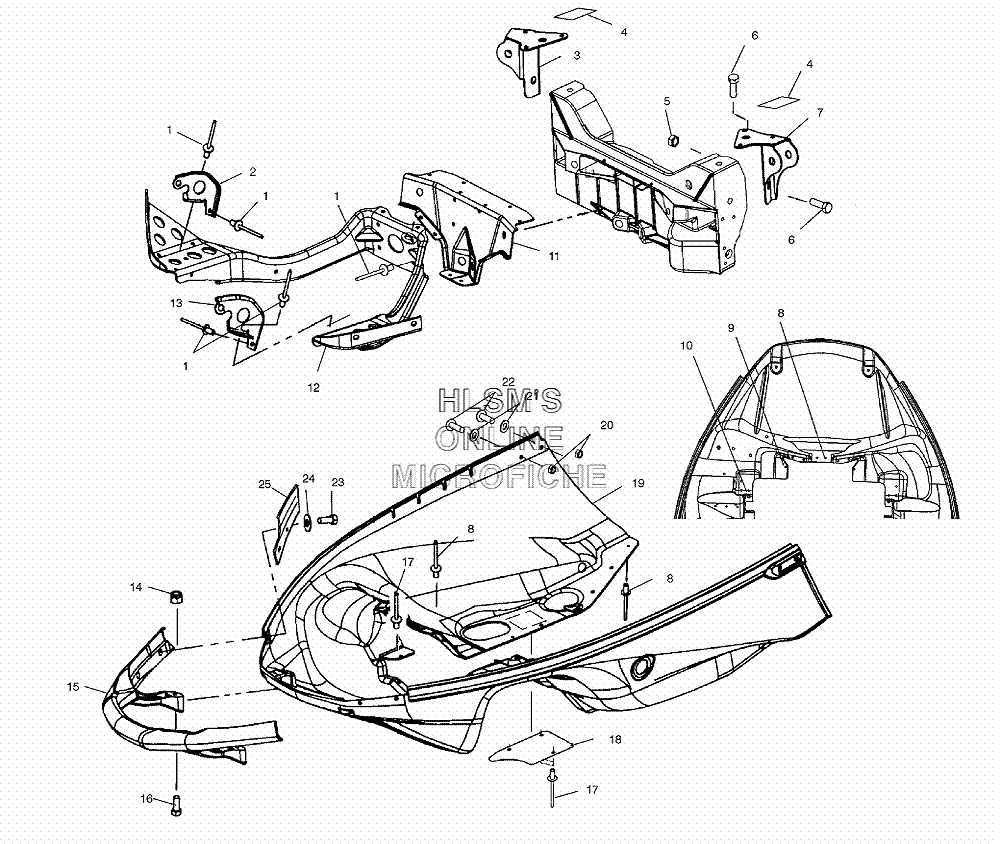

NOSEPAN ASSEMBLY #1 для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25243992-067 HINGE PIVOT (BLACK/RIGHT/LOWER)HINGE PIVOT (BLACK/RIGHT/LOWER)
-
35243978 MOUNT SHOCK BULKHEAD (RIGHT/UPPER)MOUNT SHOCK BULKHEAD (RIGHT/UPPER)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
67517935 SCREW HEXAGON SOCKET CS ZY3SCREW HEXAGON SOCKET CS ZY3
-
75243977 MOUNT SHOCK BULKHEAD (LEFT/UPPER)MOUNT SHOCK BULKHEAD (LEFT/UPPER)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET RADIUS ROD SUPPORT (BLACK)BRACKET RADIUS ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE PIVOT (LEFT/BLACK/LOWER)HINGE PIVOT (LEFT/BLACK/LOWER)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155433518-070 BUMPER ASSY (FRONT/BLACK)BUMPER ASSY (FRONT/BLACK)
-
155433518-216 BUMPER ASSY EDGE (SCR YELLOW/FRONT)BUMPER ASSY EDGE (SCR YELLOW/FRONT)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
195434343-341 NOSEPAN GAS ASSIST BASIC (SONIC BLUE)NOSEPAN GAS ASSIST BASIC (SONIC BLUE)
-
195434343-070 NOSEPAN GAS ASSIST (BLACK)NOSEPAN GAS ASSIST (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
255244889 GUIDE HOOD (RIGHT)GUIDE HOOD (RIGHT)
