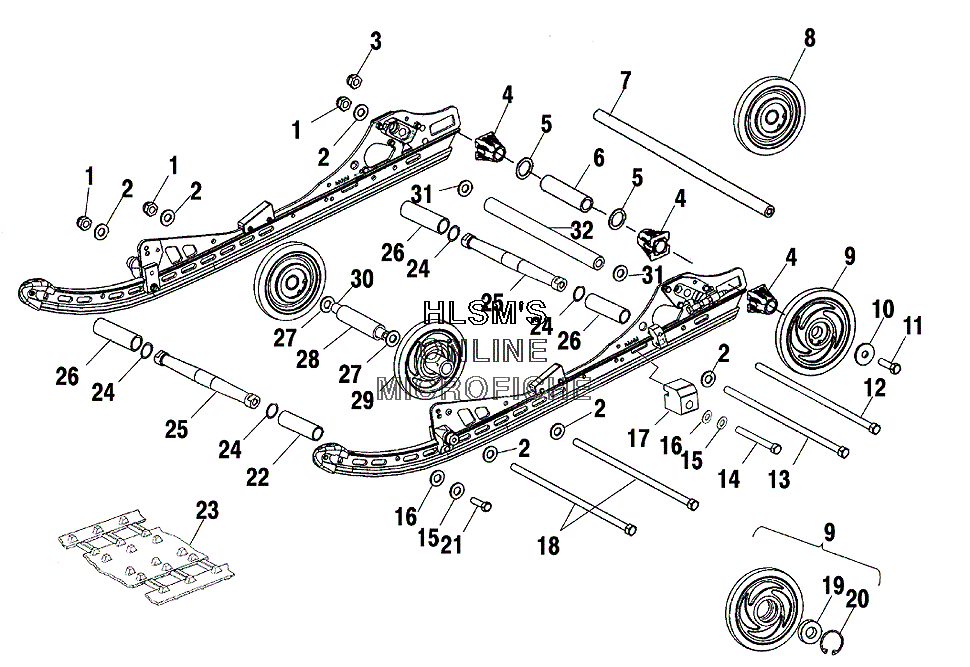

SUSPENSION/TRACK для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
37547064 NUT, NYLOKNUT, NYLOK
-
45432535 SPACER IDLERSPACER IDLER
-
57555918 BUSHINGBUSHING
-
65333285 SPACER IDLER, LONGSPACER IDLER, LONG
-
75020744 SHAFT, IDLERSHAFT, IDLER
-
81590307 WHEEL, IDLER ASSY 6.0 OD PLAINWHEEL, IDLER ASSY 6.0 OD PLAIN
-
91590305-244 WHEEL, IDLER GENII (SILVER)WHEEL, IDLER GENII (SILVER)
-
107556130 WASHERWASHER
-
117517731 BOLTBOLT
-
127517896 SCREW HEXAGON HEAD CAP YSCREW HEXAGON HEAD CAP Y
-
137517821 SCREW HEXAGON HEAD CAP YSCREW HEXAGON HEAD CAP Y
-
147517856 SCREW HEXAGON CAP GR8-YSCREW HEXAGON CAP GR8-Y
-
157552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167556042 WASHER, FLATWASHER, FLAT
-
175132583 BLOCK SHOCK PIVOT ADJUSTBLOCK SHOCK PIVOT ADJUST
-
187517921 SCREW HEXAGON/LP, GR8-YSCREW HEXAGON/LP, GR8-Y
-
193514384 BEARING NTNBEARING NTN
-
207710444 RING, RETAININGRING, RETAINING
-
217517857 SCREW HEXAGON/CAP GR8-P80YSCREW HEXAGON/CAP GR8-P80Y
-
225132586 MOUNT LIMITER STRAP ATTACHMENT (LIMITER, STRAP) (LOWER)MOUNT LIMITER STRAP ATTACHMENT (LIMITER, STRAP) (LOWER)
-
235411825 TRACK, MODULE LIGHTNING (121"X15" 1")TRACK, MODULE LIGHTNING (121"X15" 1")
-
245411965 O-RING (.875ID X .125 DIA)O-RING (.875ID X .125 DIA)
-
255132793 SHAFT TAPEREDSHAFT TAPERED
-
265333902 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
277556301 BUSHINGBUSHING
-
285330394 SPACER BOGIE (INNER)SPACER BOGIE (INNER)
-
291541530-244 WHEEL, ASSY W/IN (5.35, .75ID) (BRIGHT SILVER)WHEEL, ASSY W/IN (5.35, .75ID) (BRIGHT SILVER)
-
305132490 SHAFTSHAFT
-
317558402 WASHER, FLATWASHER, FLAT
-
325333477-067 TUBE (BLACK)TUBE (BLACK)
