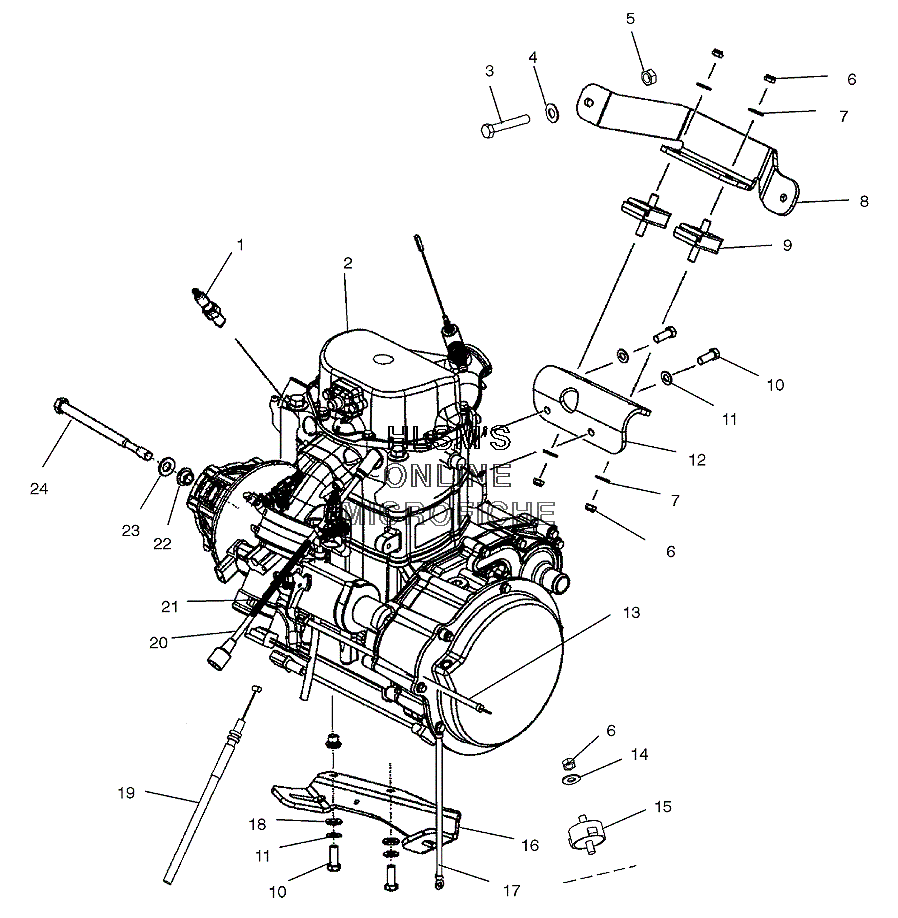

ENGINE MOUNTING W/ SHORT BLOCK для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3070195 SPARKPLUG CHAMP, RC7YC
    SPARKPLUG CHAMP, RC7YC
  • 2
    2202131 SHORT BLOCK ASSY.
    SHORT BLOCK ASSY.
  • 3
    7515534 SCREW
    SCREW
  • 4
    7556153 WASHER, 3/8 FW
    WASHER, 3/8 FW
  • 5
    7547180 NUT FLANGED, 3/8-16 NYLON-Z
    NUT FLANGED, 3/8-16 NYLON-Z
  • 6
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 7
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 8
    5245497 BRACKET ENGINE MOUNT
    BRACKET ENGINE MOUNT
  • 9
    3021312 MOUNT ENGINE, 3/8-16 RECT
    MOUNT ENGINE, 3/8-16 RECT
  • 10
    7512490 SCREW
    SCREW
  • 11
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    5245482 STRAP ENGINE MOUNT (FRONT)
    STRAP ENGINE MOUNT (FRONT)
  • 13
    4010665 CABLE 13" SOLENOID/STARTER (RED)
    CABLE 13" SOLENOID/STARTER (RED)
  • 14
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 15
    3021346 MOUNT ENGINE 3TAB 50DUR
    MOUNT ENGINE 3TAB 50DUR
  • 16
    5245483 STRAP ENGINE MOUNT (REAR)
    STRAP ENGINE MOUNT (REAR)
  • 17
    4010664 CABLE 9" ENGINE/GRND (BLACK)
    CABLE 9" ENGINE/GRND (BLACK)
  • 18
    7555832 WASHER
    WASHER
  • 19
    7081032 CABLE THROTTLE
    CABLE THROTTLE
  • 20
    5410346 INSULATED CABLE SOLENOID
    INSULATED CABLE SOLENOID
  • 21
    4010051-49 CONDUIT, CONVOL
    CONDUIT, CONVOL
  • 22
    5131872 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 23
    7556003 WASHER
    WASHER
  • 24
    7517501 SCREW
    SCREW
