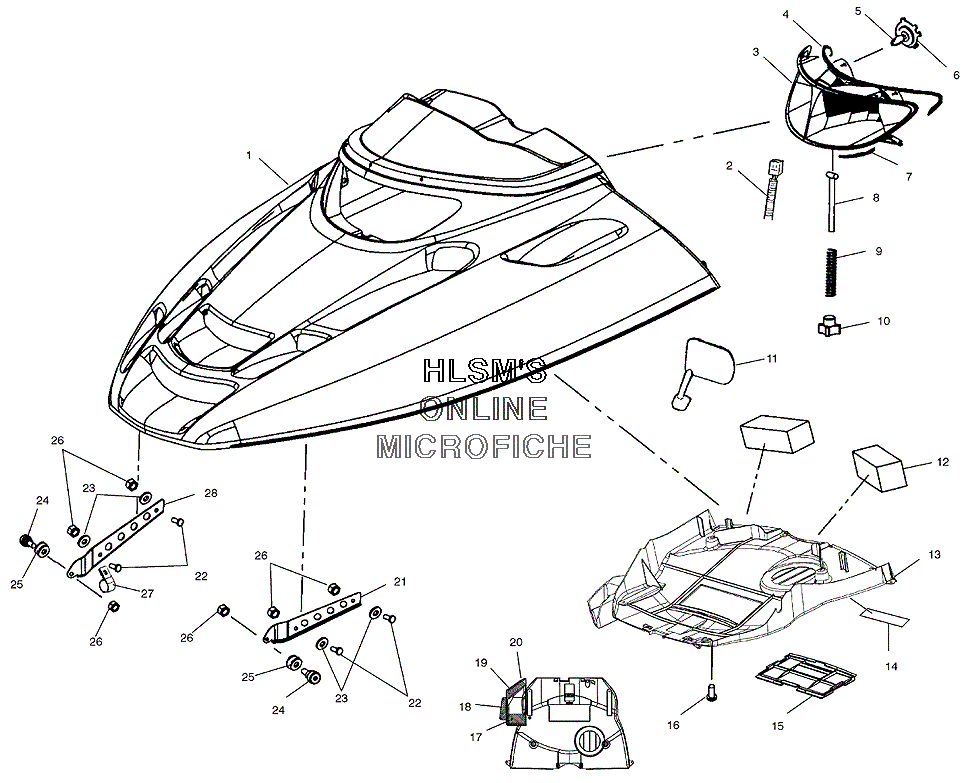

HOOD ASSEMBLY W/ HEADLIGHT для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска`
-
№АртикулНазвание
-
12632621-353 HOOD, ASSY SERVICE (CBLT GREEN)HOOD, ASSY SERVICE (CBLT GREEN)
-
22460977 HARNESS HEADLIGHT, EDGE 4STRKHARNESS HEADLIGHT, EDGE 4STRK
-
32410132 HEADLAMP, ASSY 2-BULB (INCL. BULBS)HEADLAMP, ASSY 2-BULB (INCL. BULBS)
-
45812175 SEAL, HEADLIGHT ONE PIECESEAL, HEADLIGHT ONE PIECE
-
52870448 BULB, QUARTZ. HEADLIGHT (H4, 60/55W)BULB, QUARTZ. HEADLIGHT (H4, 60/55W)
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 SEAL, HEADLIGHT ONE PIECESEAL, HEADLIGHT ONE PIECE
-
87517872 BOLT TEE ADJUSTERBOLT TEE ADJUSTER
-
97041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
112632246-070 MIRROR, ASSY (LEFT/BLACK)MIRROR, ASSY (LEFT/BLACK)
-
112632247-070 MIRROR, ASSY (RIGHT/BLACK)MIRROR, ASSY (RIGHT/BLACK)
-
117556088 WASHER, FLATWASHER, FLAT
-
117546703 NUT, NYLOKNUT, NYLOK
-
125811793 FOAM, PREFILTERFOAM, PREFILTER
-
132632650 PLENUM/FOIL, ASSY (17-20)PLENUM/FOIL, ASSY (17-20)
-
135433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
147079333 DECAL SUSPENSION SET-UP, M-10DECAL SUSPENSION SET-UP, M-10
-
155433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
167512068 SCREWSCREW
-
175812414 FOILFOIL
-
185812324 FOILFOIL
-
195811948 FOILFOIL
-
205812415 FOIL (LEFT/INNER)FOIL (LEFT/INNER)
-
215243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
227512240 BOLTBOLT
-
237558301 WASHER, FLATWASHER, FLAT
-
247512113 BOLTBOLT
-
255332403 SPACERSPACER
-
267542122 NUT NYLOKNUT NYLOK
-
277080367 CLAMP, CABLECLAMP, CABLE
-
285243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
