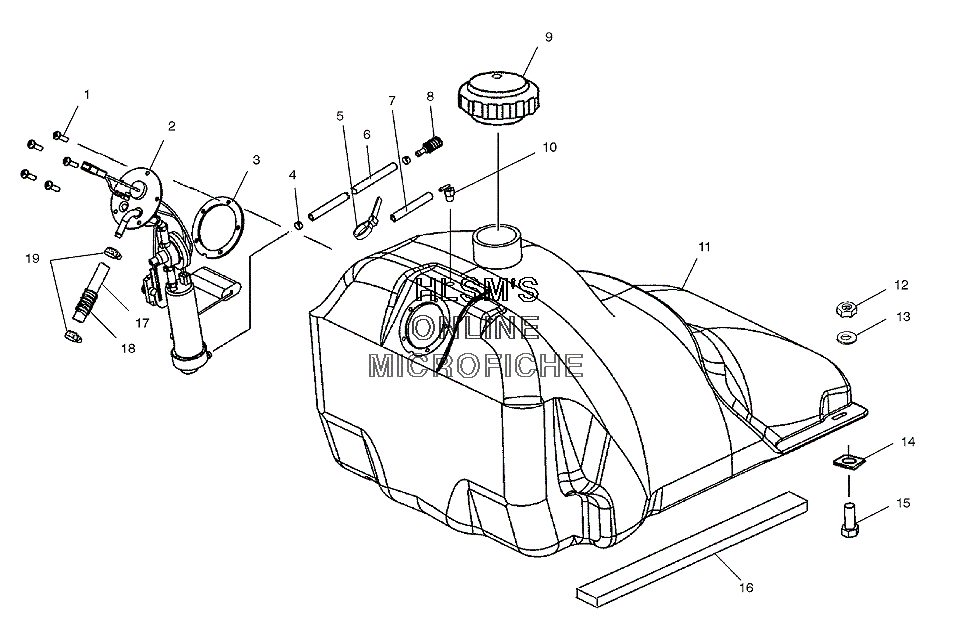

FUEL TANK для Polaris FRONTIER CLASSIC BUILT BEFORE 1/1/02 (S03ND7DS) - 2003 года выпуска
-
№АртикулНазвание
-
32202692 FUEL TANK GASKET KITFUEL TANK GASKET KIT
-
57080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
-
78450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
92511195-070 CAP, FUEL ASSY (BLACK)CAP, FUEL ASSY (BLACK)
-
107052095 FITTING, (90 DEG, 1/8)FITTING, (90 DEG, 1/8)
-
112520388 FUEL TANK, ASSY (INCL. 1-4, 6, 8)FUEL TANK, ASSY (INCL. 1-4, 6, 8)
-
127542122 NUT NYLOKNUT NYLOK
-
137555960 WASHER, FLATWASHER, FLAT
-
147670021 NUT, SPEEDNUT, SPEED
-
157512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
165810947 FOAM, SEALFOAM, SEAL
-
178450044-600 TUBETUBE
-
188360052-15 CONDUITCONDUIT
-
197080417 CLAMP, HOSE (SCREW TYPE)CLAMP, HOSE (SCREW TYPE)
