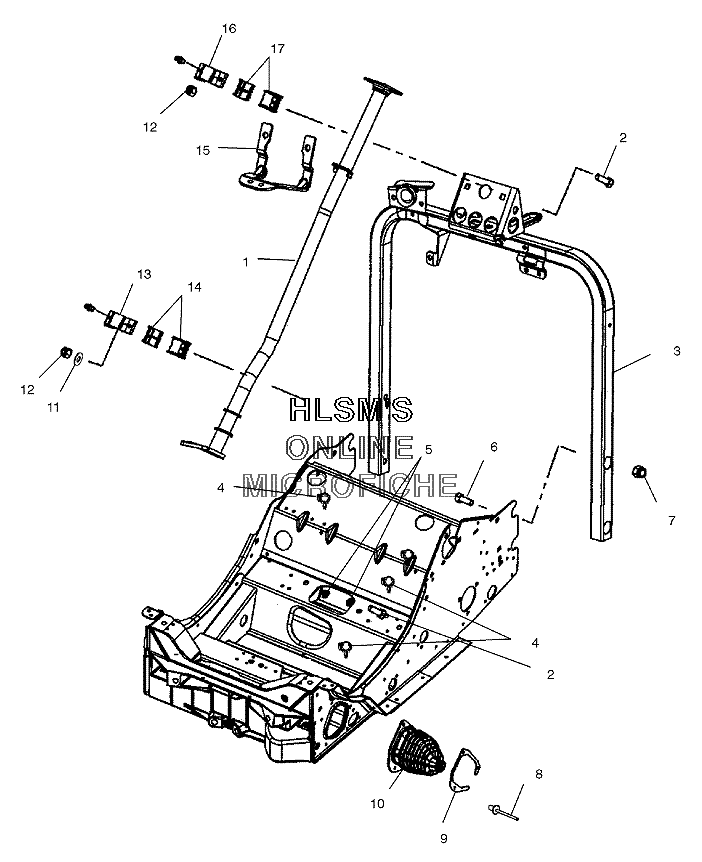

STEERING POST ASSEMBLY для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1821162-067 WELD STEERING POST, RMK (BLACK)
    WELD STEERING POST, RMK (BLACK)
  • 2
    7517579 BOLT CARR
    BOLT CARR
  • 3
    1013444-067 WELD STEERING HOOP (BLACK)
    WELD STEERING HOOP (BLACK)
  • 4
    4020139 CLIP (ROSEBUD)
    CLIP (ROSEBUD)
  • 5
    7547030 PALNUT
    PALNUT
  • 6
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 7
    7542343 NUT FLANGE
    NUT FLANGE
  • 8
    7621433 RIVET
    RIVET
  • 9
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 10
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 10
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 11
    7558402 WASHER FLAT
    WASHER FLAT
  • 12
    7542324 NUT NYLOK
    NUT NYLOK
  • 13
    5132967 BRACKET STEERING POST, ALUMINUM (.75W)
    BRACKET STEERING POST, ALUMINUM (.75W)
  • 14
    5434167 BUSHING (.75)
    BUSHING (.75)
  • 15
    5245373 BRACKET CONSOLE NECK, FWD, SRP (FRONT)
    BRACKET CONSOLE NECK, FWD, SRP (FRONT)
  • 16
    5131841 BRACKET, STEERING POST MODULE
    BRACKET, STEERING POST MODULE
  • 16
    7080510 FITTING, ZERK (90DEG)
    FITTING, ZERK (90DEG)
  • 17
    5432785 BUSHING
    BUSHING
