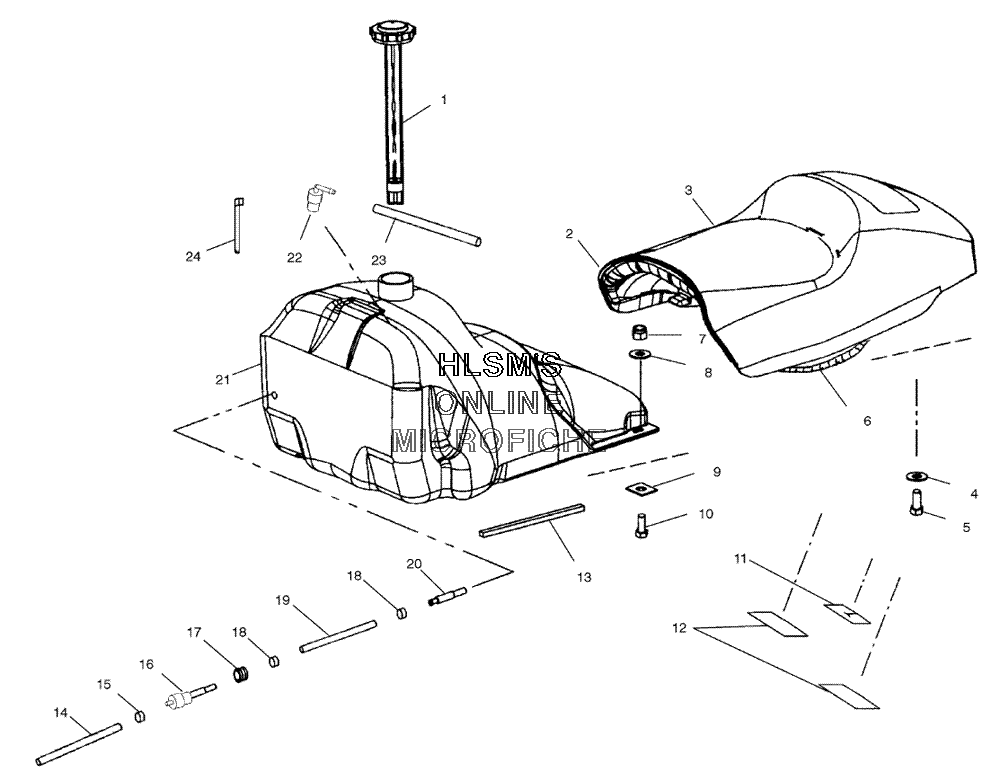

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11240066 CAP, FUEL 12 GAL W/GAUGECAP, FUEL 12 GAL W/GAUGE
-
22682710 SEAT, ASSY EDGE RMK (RED) (INCL. 3, 6)SEAT, ASSY EDGE RMK (RED) (INCL. 3, 6)
-
32682822 SEAT COVER, ASSY EDGE RMK (RED)SEAT COVER, ASSY EDGE RMK (RED)
-
47558301 WASHER FLATWASHER FLAT
-
57517219 SCREWSCREW
-
62461064 HARNESS TAILLIGHT, SEATHARNESS TAILLIGHT, SEAT
-
77542122 NUT NYLOKNUT NYLOK
-
87555960 WASHER FLATWASHER FLAT
-
97670021 NUT SPEEDNUT SPEED
-
107512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
115812291 GASKET WIREHARNESSGASKET WIREHARNESS
-
125812289 PATCHPATCH
-
135810947 FOAM, SEALFOAM, SEAL
-
148350017-600 FUEL LINE, ETHER (5/16") (RED)FUEL LINE, ETHER (5/16") (RED)
-
157080003 CLAMP, HOSECLAMP, HOSE
-
167052269 FITTING, STRAIGHTFITTING, STRAIGHT
-
175432981 GROMMET, 1/2" NITRILEGROMMET, 1/2" NITRILE
-
187080768 RING, COMPRESSIONRING, COMPRESSION
-
198350020-600 FUEL LINE, ETHER VOLT (3/8")FUEL LINE, ETHER VOLT (3/8")
-
207052215 PICK-UP, FUEL W/MESHPICK-UP, FUEL W/MESH
-
212520262 FUEL TANK, ASSYFUEL TANK, ASSY
-
227052095 FITTING (90DEG)FITTING (90DEG)
-
238450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
247080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
