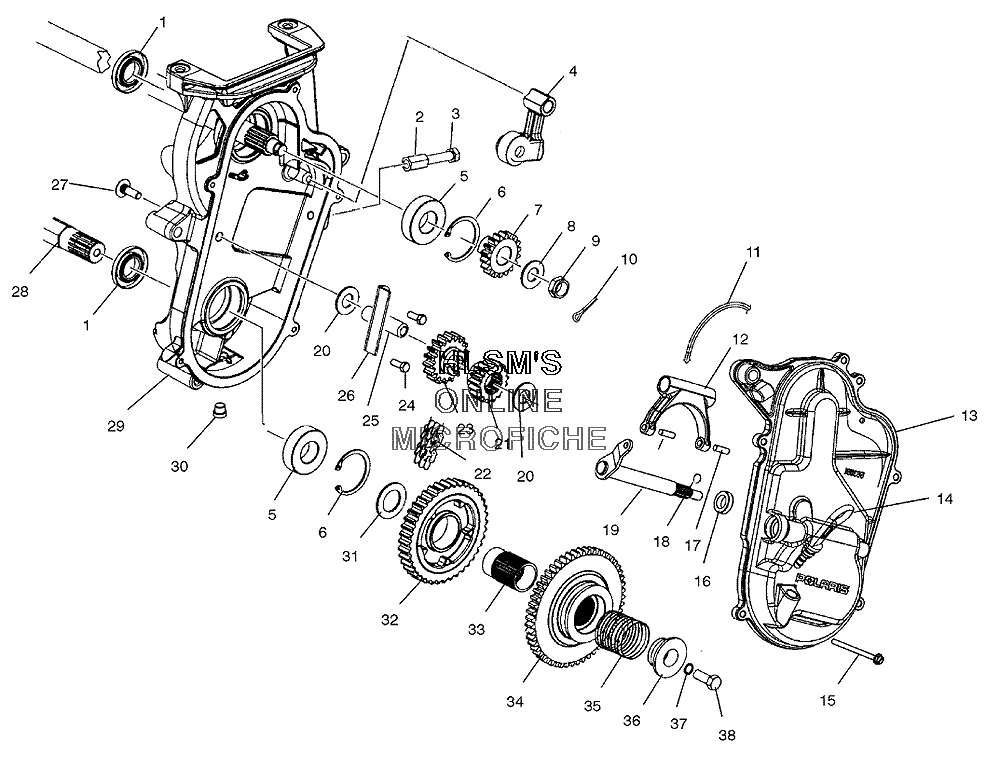

CHAINCASE - REVERSE MODELS для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    5132237 NUT CHAIN ADJUSTER
    NUT CHAIN ADJUSTER
  • 3
    7512470 SCREW
    SCREW
  • 4
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 4
    3553002 BEARING
    BEARING
  • 4
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 4
    7558702 WASHER THRUST
    WASHER THRUST
  • 4
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 4
    5630958 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 5
    3514309 BEARING, BALL
    BEARING, BALL
  • 6
    7718406 RING, RETAINING
    RING, RETAINING
  • 7
    3221099 SPROCKET (23T, 3/4W, 15 SPLINE HYVO PM)
    SPROCKET (23T, 3/4W, 15 SPLINE HYVO PM)
  • 8
    7571620 WASHER SPRING
    WASHER SPRING
  • 9
    7542811 NUT, THIN NYLON INSERT-Y
    NUT, THIN NYLON INSERT-Y
  • 10
    7661401 PIN, COTTER
    PIN, COTTER
  • 11
    5411497 GASKET, O-RING
    GASKET, O-RING
  • 12
    2200363 SHIFT FORK/SHAFT, KIT (INCL. 17, 19)
    SHIFT FORK/SHAFT, KIT (INCL. 17, 19)
  • 12
    5130805 FORK, SHIFT
    FORK, SHIFT
  • 13
    5133431 COVER CC, REV MACH
    COVER CC, REV MACH
  • 14
    1332250 DIPSTICK, W/MAGNET ASSY EDGE
    DIPSTICK, W/MAGNET ASSY EDGE
  • 15
    7512242 SCREW
    SCREW
  • 16
    3610029 SEAL, OIL
    SEAL, OIL
  • 17
    7661826 PIN, DOWEL
    PIN, DOWEL
  • 18
    7710415 RING, RETAINER
    RING, RETAINER
  • 19
    1341388-067 WELD SHAFT SHIFT (BLACK)
    WELD SHAFT SHIFT (BLACK)
  • 20
    7555877 WASHER THRUST
    WASHER THRUST
  • 21
    1341075 PINION GEAR, SPUR ASSY
    PINION GEAR, SPUR ASSY
  • 21
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 22
    3221109 CHAIN, HYVO. (74P, 3/4W)
    CHAIN, HYVO. (74P, 3/4W)
  • 23
    1341241 SPROCKET, PINION ASSY (18T, 3/4W)
    SPROCKET, PINION ASSY (18T, 3/4W)
  • 23
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 24
    7512019 SCREW
    SCREW
  • 25
    5131770 SHAFT, PINION W/WRENCH FLATS
    SHAFT, PINION W/WRENCH FLATS
  • 26
    5243162 BRACKET CHAIN RETENTION (7.05)
    BRACKET CHAIN RETENTION (7.05)
  • 27
    7515477 SCREW CARRIAGE
    SCREW CARRIAGE
  • 29
    5132773 CHAINCASE ALUMINUM (7.92 CD)
    CHAINCASE ALUMINUM (7.92 CD)
  • 30
    7052115 PLUG
    PLUG
  • 31
    7555871 WASHER
    WASHER
  • 32
    1341243 RVRSE GEAR HYVO (39T, 3/4")
    RVRSE GEAR HYVO (39T, 3/4")
  • 33
    5130720 COUPLER, DRIVE
    COUPLER, DRIVE
  • 34
    1341410 REVERSE GEAR ASSY
    REVERSE GEAR ASSY
  • 35
    7041887 SPRING COMPRESSION
    SPRING COMPRESSION
  • 36
    5130727 RETAINER, DRIVE COUPLER
    RETAINER, DRIVE COUPLER
  • 37
    7552901 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 38
    7517581 SCREW
    SCREW
