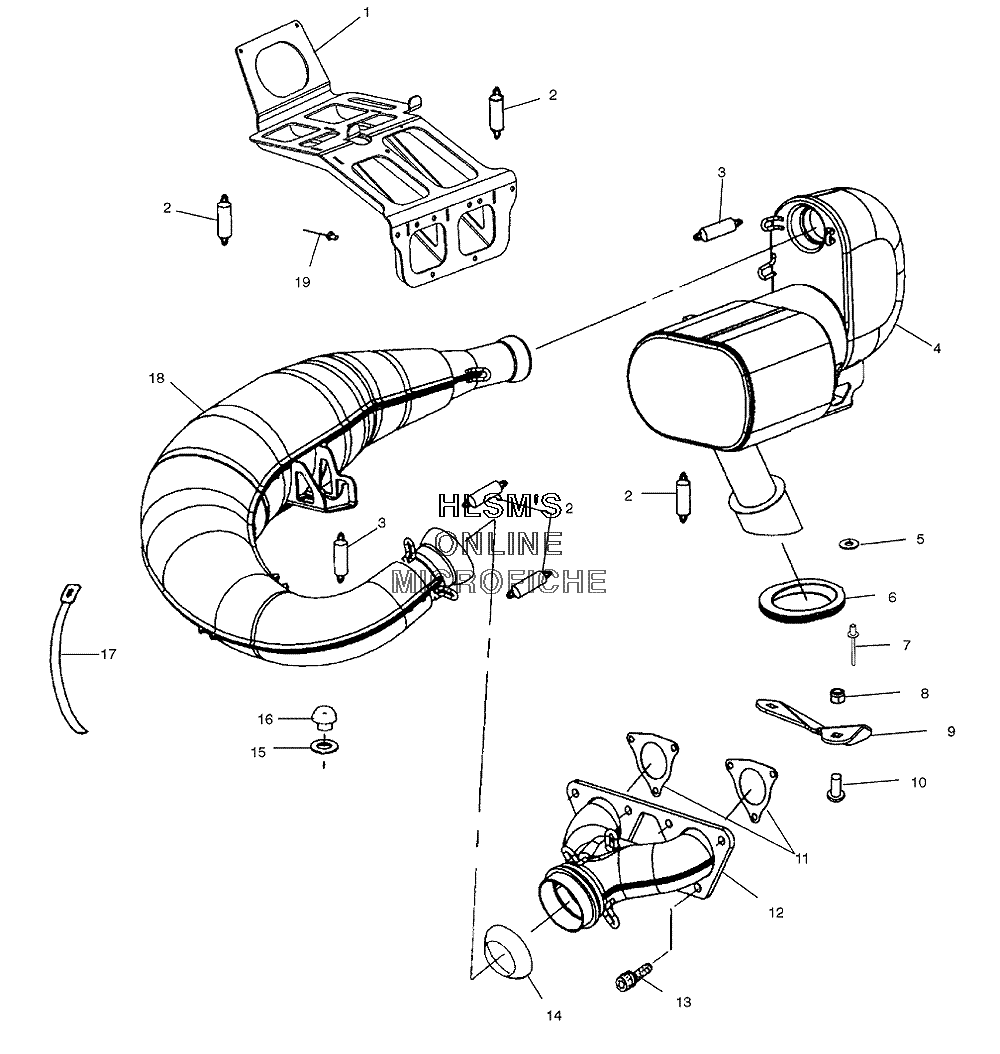

EXHAUST SYSTEM для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11261157-029 WELD, BRACKET CHASSIS/RESONATORWELD, BRACKET CHASSIS/RESONATOR
-
27041687 SPRINGSPRING
-
37042029 SPRINGSPRING
-
41261130-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
57555904 WASHERWASHER
-
65411684 BOOT, EXHAUST OUTLETBOOT, EXHAUST OUTLET
-
77621467 RIVET, BLINDRIVET, BLIND
-
87542321 NUT FLANGENUT FLANGE
-
95243929 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
107512394 BOLT, CARRIAGEBOLT, CARRIAGE
-
115811799 GASKET EXHAUSTGASKET EXHAUST
-
121261124-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
137517322 SCREWSCREW
-
143610046 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
157556004 WASHERWASHER
-
165411576 DAMPENER-VIBRATION, W/RIBSDAMPENER-VIBRATION, W/RIBS
-
177080740 CLAMP WORM DRIVE (.44 X 3.69)CLAMP WORM DRIVE (.44 X 3.69)
-
177080741 CLAMP WORM DRIVE (.44 X 4.25)CLAMP WORM DRIVE (.44 X 4.25)
-
177080742 CLAMP WORM DRIVE (.44 X 6.38)CLAMP WORM DRIVE (.44 X 6.38)
-
181261123 TUNED PIPE, ASSY (INCL. 17)TUNED PIPE, ASSY (INCL. 17)
-
181261122-029 WELD TUNED PIPE (BLACK)WELD TUNED PIPE (BLACK)
-
185245929 COVER TUNED PIPE, TOPCOVER TUNED PIPE, TOP
-
185245930 COVER TUNED PIPE, BOTTOMCOVER TUNED PIPE, BOTTOM
-
185830215 MATTE SOUND, TOPMATTE SOUND, TOP
-
185830216 MATTE SOUND, BOTTOMMATTE SOUND, BOTTOM
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
