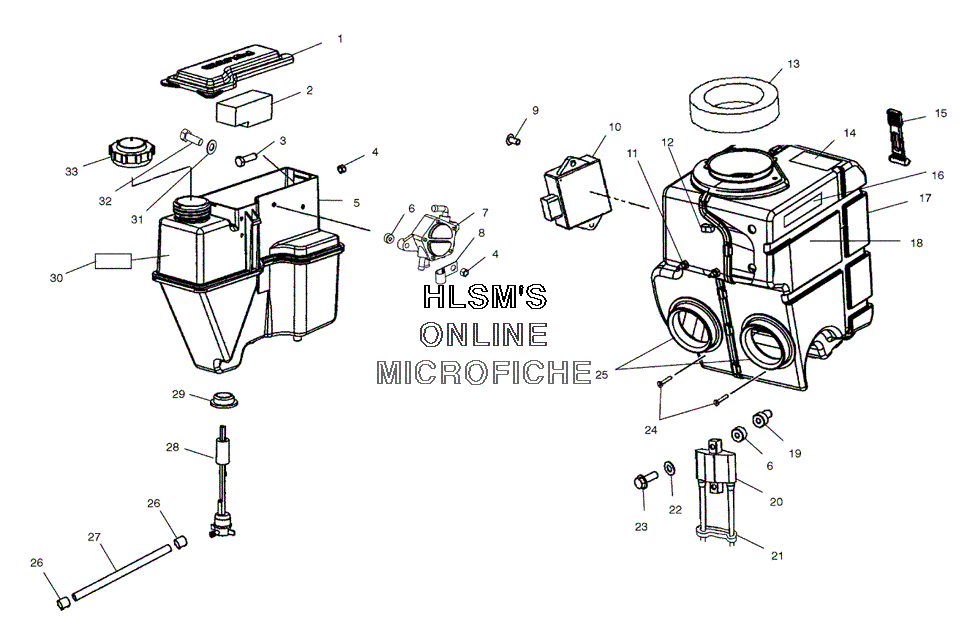

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5434089 COVER - TOOL BOX
    COVER - TOOL BOX
  • 2
    5812209 FOAM
    FOAM
  • 3
    7512297 SCREW
    SCREW
  • 4
    7542122 NUT - NYLOK
    NUT - NYLOK
  • 5
    1253453 WELD - OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 28)
    WELD - OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 28)
  • 5
    1261199 WELD - OIL BOTTLE/TOOL BOX W/MNT
    WELD - OIL BOTTLE/TOOL BOX W/MNT
  • 6
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 8
    7081069 CLIP - J
    CLIP - J
  • 9
    7512095 SCREW
    SCREW
  • 11
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 12
    7670102 CLIP
    CLIP
  • 13
    5811983 FOAM, CHIMNEY
    FOAM, CHIMNEY
  • 14
    7075351 DECAL, CAUTION
    DECAL, CAUTION
  • 15
    5433150 STRAP
    STRAP
  • 16
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 17
    1253501 ASSY. - AIR SILENCER (INCL. 25 & DECALS)
    ASSY. - AIR SILENCER (INCL. 25 & DECALS)
  • 18
    7171037 DECAL - BELT REMOVAL, E/R
    DECAL - BELT REMOVAL, E/R
  • 19
    7547103 NUT, WELL
    NUT, WELL
  • 21
    7080471 CLIP, IGNITION CABLE
    CLIP, IGNITION CABLE
  • 22
    7552604 WASHER
    WASHER
  • 23
    7517610 SCREW
    SCREW
  • 24
    7511862 SCREW
    SCREW
  • 25
    5412157 BOOT - CARBURETOR, 70 DURO
    BOOT - CARBURETOR, 70 DURO
  • 26
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 27
    8450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)
    LINE, FUEL, 1/4 ID (1525 CM.)
  • 28
    4010660 SENDER - OIL, W/ FRONT TERMINALS
    SENDER - OIL, W/ FRONT TERMINALS
  • 29
    7052305 GROMMET - OIL SENDER
    GROMMET - OIL SENDER
  • 30
    7079003 DECAL - OIL, VES
    DECAL - OIL, VES
  • 31
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 32
    7512163 BOLT
    BOLT
  • 33
    1240094 CAP - OIL, VENTED/CUSTOM COLOR
    CAP - OIL, VENTED/CUSTOM COLOR
