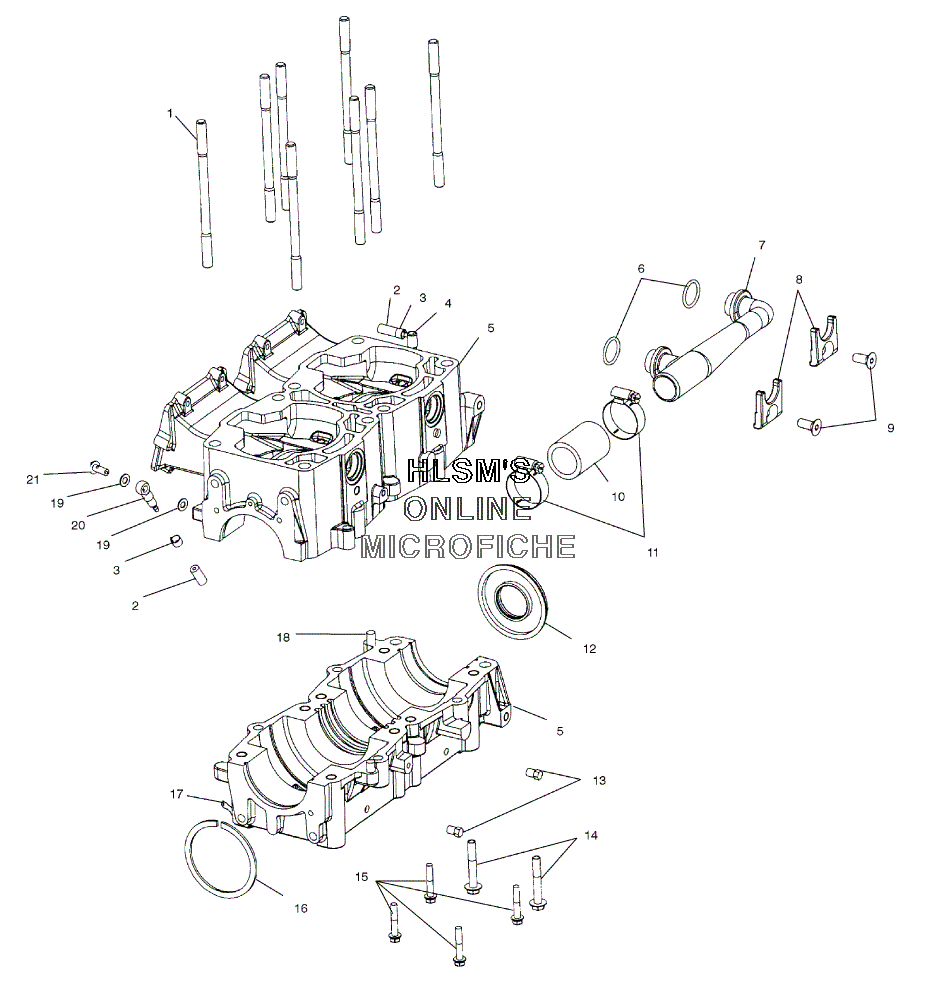

CRANKCASE ASSEMBLY для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска
-
№АртикулНазвание
-
15131677 STUD, CYL.FLANGE, 152MM, SPSSTUD, CYL.FLANGE, 152MM, SPS
-
28450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
37080603 CLAMPCLAMP
-
47051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
52202233 KIT - CRANKCASE 1202354, 700 SNO (INCL. 1, 5, 14, 15, 18)KIT - CRANKCASE 1202354, 700 SNO (INCL. 1, 5, 14, 15, 18)
-
65411125 O - RINGO - RING
-
75630610 MANIFOLD, WATER INLETMANIFOLD, WATER INLET
-
85243431 RETAINER - INLET WATER MANIFOLDRETAINER - INLET WATER MANIFOLD
-
97516736 SCREWSCREW
-
108450068-04 HOSEHOSE
-
117080560 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
125411394 SEAL, FLANGEDSEAL, FLANGED
-
137051529 PLUGPLUG
-
147516919 SCREWSCREW
-
157516732 SCREWSCREW
-
167710441 RING, RETAININGRING, RETAINING
-
177052322 FITTINGFITTING
-
187663001 PIN, DOWELPIN, DOWEL
-
197555998 WASHER, FLATWASHER, FLAT
-
207052160 VALVE, CHECKVALVE, CHECK
-
217517319 SCREWSCREW
