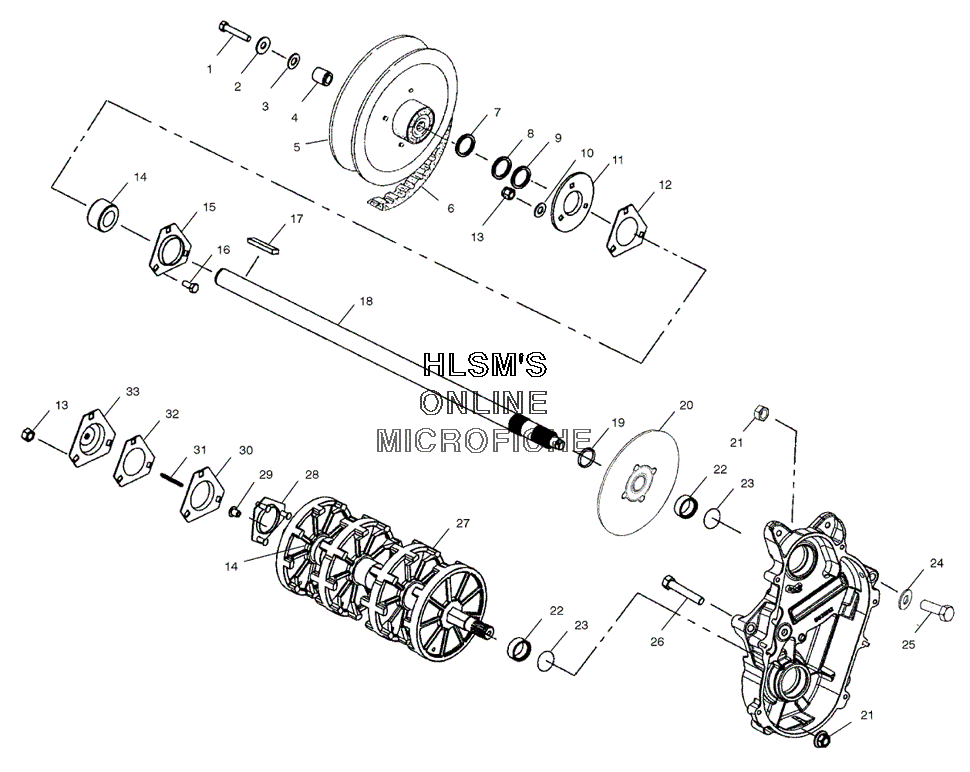

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517820 BOLT
    BOLT
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 4
    5020291 SPACER
    SPACER
  • 6
    3211080 BELT DRIVE (5)
    BELT DRIVE (5)
  • 7
    7555917 WASHER
    WASHER
  • 8
    7555864 WASHER
    WASHER
  • 9
    7556509 BUSHING
    BUSHING
  • 10
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 11
    5241359 FLANGE RD, RELUBE W/ZERK
    FLANGE RD, RELUBE W/ZERK
  • 11
    7080561 FITTING, LUB/VEN
    FITTING, LUB/VEN
  • 12
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 13
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 14
    3514525 BEARING
    BEARING
  • 15
    5222751 FLANGETTE
    FLANGETTE
  • 16
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 17
    7721128 KEY
    KEY
  • 18
    1332220 ASSY., JACKSHAFT (INCL. 14, 19)
    ASSY., JACKSHAFT (INCL. 14, 19)
  • 19
    7710422 RING, RETAINING
    RING, RETAINING
  • 20
    1910703 KIT - BRAKE DISC, FORGED
    KIT - BRAKE DISC, FORGED
  • 21
    7542423 NUT, FLANGE
    NUT, FLANGE
  • 22
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 23
    5410613 O RING
    O RING
  • 24
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 25
    7518002 SCREW
    SCREW
  • 26
    7515428 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 27
    1590366 ASSY. - DRIVESHAFT, 4DR (SMOOTH)EDGE (INCL. 28, 29)
    ASSY. - DRIVESHAFT, 4DR (SMOOTH)EDGE (INCL. 28, 29)
  • 28
    1012945 ASSY. - FLANGETTE W/SCREWS
    ASSY. - FLANGETTE W/SCREWS
  • 29
    3280019 BUSHING METAL SPEEDO
    BUSHING METAL SPEEDO
  • 30
    5243529 FLANGETTE - OFFSET, W/HOLE
    FLANGETTE - OFFSET, W/HOLE
  • 31
    3280017 KEY, SPEEDOMETER, SQUARE
    KEY, SPEEDOMETER, SQUARE
  • 32
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 33
    3280116 ADAPTER, DRIVE, W/ZERK
    ADAPTER, DRIVE, W/ZERK
