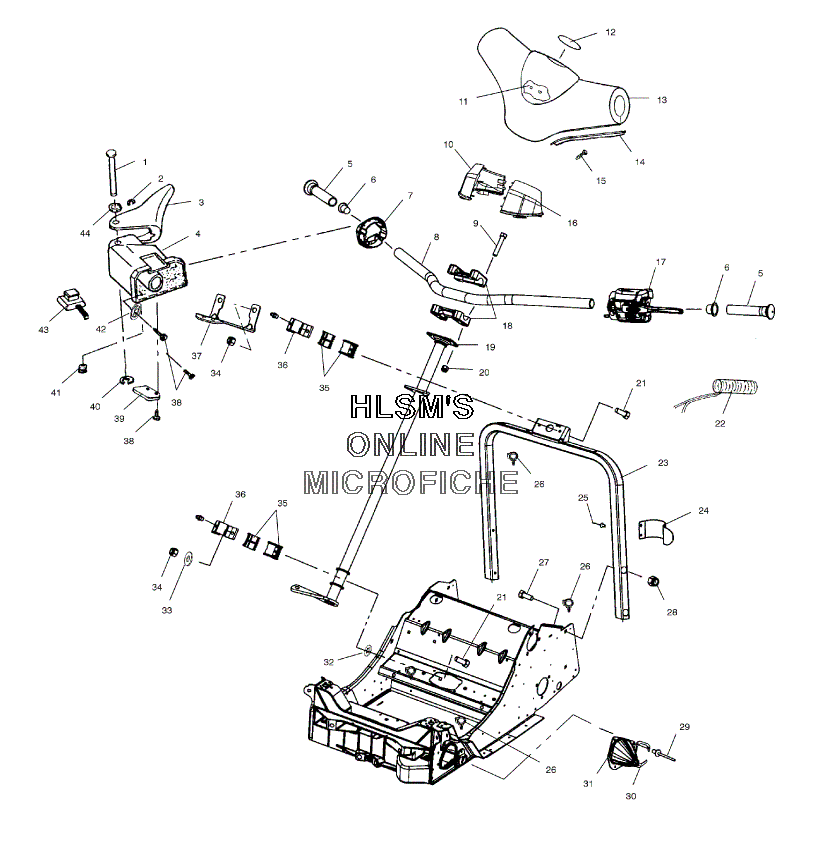

HANDLEBAR ASSEMBLY для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN - RETAINING
    PIN - RETAINING
  • 2
    7710503 RING, RETAINING
    RING, RETAINING
  • 3
    5432970 THROTTLE, LEVER, 35.5MM
    THROTTLE, LEVER, 35.5MM
  • 3
    2010171 ASSY., LEVER, HTR, HI/LO 35.5MM
    ASSY., LEVER, HTR, HI/LO 35.5MM
  • 4
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 5
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 6
    5431096 PLUG
    PLUG
  • 7
    5433345 ADAPTER - BLOCK, THROTTLE
    ADAPTER - BLOCK, THROTTLE
  • 8
    5243355-067 HANDLEBAR (BLACK)
    HANDLEBAR (BLACK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    5434488 COLLAR - CONSOLE, STD (RIGHT)
    COLLAR - CONSOLE, STD (RIGHT)
  • 11
    7670106 NUT - PUSH ON,
    NUT - PUSH ON,
  • 12
    5434179 EMBLEM - "STAR" PLM.BEZEL, HNDLBR
    EMBLEM - "STAR" PLM.BEZEL, HNDLBR
  • 13
    5433159-070 COVER - HANDLEBAR (BLACK)
    COVER - HANDLEBAR (BLACK)
  • 14
    5433160-070 SLIDE - HANDLEBAR COVER (BLACK)
    SLIDE - HANDLEBAR COVER (BLACK)
  • 15
    4010287 CLIP, DART NYLON (BLACK)
    CLIP, DART NYLON (BLACK)
  • 16
    5434487 COLLAR - CONSOLE, STD (LEFT)
    COLLAR - CONSOLE, STD (LEFT)
  • 18
    5630187-067 BLOCK, HANDLEBAR (BLACK)
    BLOCK, HANDLEBAR (BLACK)
  • 19
    1820965-067 WELD - POST, STEERING (BLACK)
    WELD - POST, STEERING (BLACK)
  • 20
    7542122 NUT - NYLOK
    NUT - NYLOK
  • 21
    7517579 BOLT
    BOLT
  • 22
    2460677 HEATER, GRIP, LO/MED/HI
    HEATER, GRIP, LO/MED/HI
  • 23
    1013804-067 WELD - HOOP, STEERING (BLACK)
    WELD - HOOP, STEERING (BLACK)
  • 24
    5243185 RETAINER - CLIP, TOOL POUCH
    RETAINER - CLIP, TOOL POUCH
  • 25
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 26
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 27
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 28
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 29
    7621433 RIVET
    RIVET
  • 30
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 31
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 31
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 32
    7547030 PALNUT
    PALNUT
  • 33
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 34
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 35
    5432785 BUSHING
    BUSHING
  • 36
    5133648 BRACKET - STEERING POST, MOD
    BRACKET - STEERING POST, MOD
  • 36
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 37
    5245354 BRACKET - CONSOLE, FRONT NECK, STD
    BRACKET - CONSOLE, FRONT NECK, STD
  • 38
    7511848 SCREW
    SCREW
  • 39
    5432261 HOLDER - WIRE
    HOLDER - WIRE
  • 40
    7710401 RING, RETAINING
    RING, RETAINING
  • 41
    7512465 SCREW, SET
    SCREW, SET
  • 42
    7555727 WASHER
    WASHER
  • 43
    4110106 SWITCH, AUXILIARY SHUT - OFF
    SWITCH, AUXILIARY SHUT - OFF
  • 44
    7555730 WASHER
    WASHER
