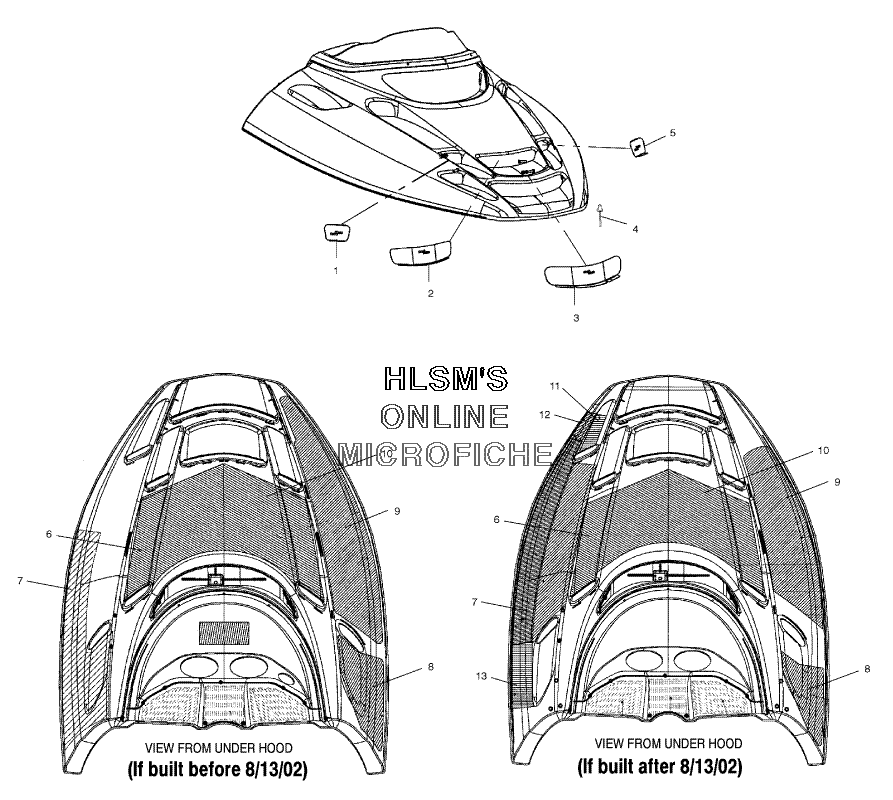

HOOD - FOAM/FOIL для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
15243465-067 SCREEN HOOD, NOSTRIL (RIGHT/BLACK)SCREEN HOOD, NOSTRIL (RIGHT/BLACK)
-
25243463-067 SCREEN HOOD, LOUVER (REAR/BLACK)SCREEN HOOD, LOUVER (REAR/BLACK)
-
35243462-067 SCREEN, HOOD, LOUVER (FRONT/BLACK)SCREEN, HOOD, LOUVER (FRONT/BLACK)
-
47621334 RIVETRIVET
-
55243464-067 SCREEN HOOD, NOSTRIL (LEFT/BLACK)SCREEN HOOD, NOSTRIL (LEFT/BLACK)
-
65812107 FOIL (RIGHT)FOIL (RIGHT)
-
75812106 FOIL (RIGHT)FOIL (RIGHT)
-
85812270 FOAM (REAR/LEFT)FOAM (REAR/LEFT)
-
95812286 FOAM (FRONT/LEFT)FOAM (FRONT/LEFT)
-
105812007 FOAM (CENTER)FOAM (CENTER)
-
115812424 FOIL, LOUVER (RIGHT) (IF BUILT AFTER 8/13/02)FOIL, LOUVER (RIGHT) (IF BUILT AFTER 8/13/02)
-
125812061 FOIL, TAPE (IF BUILT AFTER 8/13/02)FOIL, TAPE (IF BUILT AFTER 8/13/02)
-
135810345 FOIL, TAPE (IF BUILT AFTER 8/13/02)FOIL, TAPE (IF BUILT AFTER 8/13/02)
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM (BUILT AFTER 8/13/02)
- EXHAUST SYSTEM (BUILT BEFORE 8/13/02)
- FRAME - CHASSIS
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- • HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR SHOCK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
