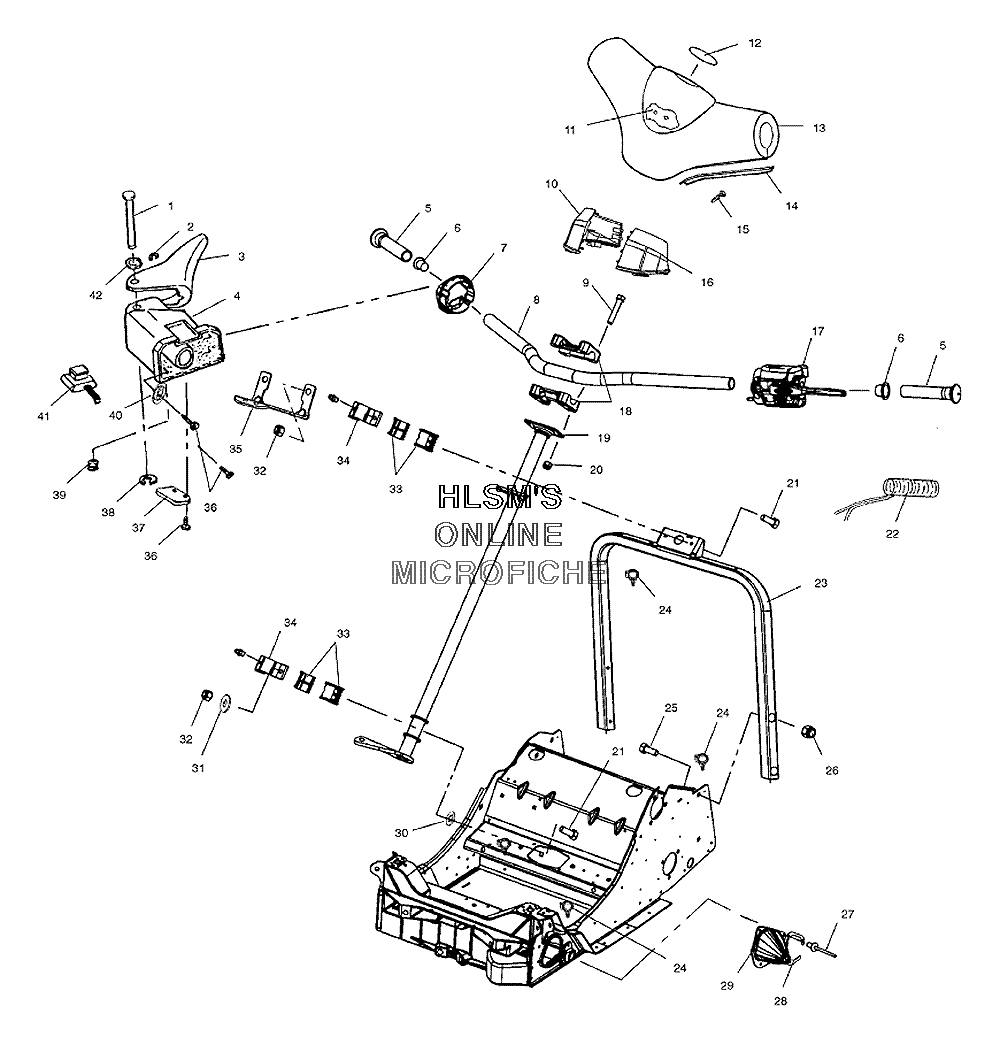

HANDLEBAR ASSEMBLY для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN RETAINING
    PIN RETAINING
  • 2
    7710503 RING, RETAINING
    RING, RETAINING
  • 3
    5432970 THROTTLE, LEVER (35.5MM)
    THROTTLE, LEVER (35.5MM)
  • 3
    2010171 LEVER ASSY HEATER HI/LO (35.5MM)
    LEVER ASSY HEATER HI/LO (35.5MM)
  • 4
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 5
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 6
    5431096 PLUG
    PLUG
  • 7
    5433345 ADAPTER BLOCK, THROTTLE
    ADAPTER BLOCK, THROTTLE
  • 8
    5243355-067 HANDLEBAR (BLACK)
    HANDLEBAR (BLACK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    5434488 COLLAR CONSOLE (STD) (RIGHT)
    COLLAR CONSOLE (STD) (RIGHT)
  • 11
    7670106 NUT PUSH ON
    NUT PUSH ON
  • 12
    5434179 EMBLEM "STAR" PALM BEZEL HANDLEBAR
    EMBLEM "STAR" PALM BEZEL HANDLEBAR
  • 13
    5433159-070 COVER HANDLEBAR (BLACK)
    COVER HANDLEBAR (BLACK)
  • 14
    5433160-070 SLIDE HANDLEBAR COVER (BLACK)
    SLIDE HANDLEBAR COVER (BLACK)
  • 15
    4010287 CLIP, DART NYLON (BLACK)
    CLIP, DART NYLON (BLACK)
  • 16
    5434487 COLLAR CONSOLE (STD) (LEFT)
    COLLAR CONSOLE (STD) (LEFT)
  • 18
    5630187-067 BLOCK, HANDLEBAR (BLACK)
    BLOCK, HANDLEBAR (BLACK)
  • 19
    1820965-067 WELD POST, STEERING (BLACK)
    WELD POST, STEERING (BLACK)
  • 20
    7542122 NUT NYLOK
    NUT NYLOK
  • 21
    7517579 BOLT, CARR
    BOLT, CARR
  • 22
    2460677 HEATER, GRIP (LO/MED/HI)
    HEATER, GRIP (LO/MED/HI)
  • 23
    1013776-067 WELDING, STEERING HOOP (BLACK) (EDGE)
    WELDING, STEERING HOOP (BLACK) (EDGE)
  • 24
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 25
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 26
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 27
    7621433 RIVET
    RIVET
  • 28
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 29
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 29
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 30
    7547030 PALNUT
    PALNUT
  • 31
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 32
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 33
    5432785 BUSHING
    BUSHING
  • 34
    5133648 BRACKET, STEERING POST MODULE
    BRACKET, STEERING POST MODULE
  • 34
    7080510 FITTING, ZERK 90 DEGREE
    FITTING, ZERK 90 DEGREE
  • 35
    5245354 BRACKET CONSOLE, NECK (STD) (FRONT)
    BRACKET CONSOLE, NECK (STD) (FRONT)
  • 36
    7511848 SCREW
    SCREW
  • 37
    5432261 HOLDER WIRE
    HOLDER WIRE
  • 38
    7710401 RING, RETAINING
    RING, RETAINING
  • 39
    7512465 SCREW, SET
    SCREW, SET
  • 40
    7555727 WASHER
    WASHER
  • 41
    4110106 SWITCH, AUXILIARY SHUT OFF
    SWITCH, AUXILIARY SHUT OFF
  • 42
    7555730 WASHER
    WASHER
