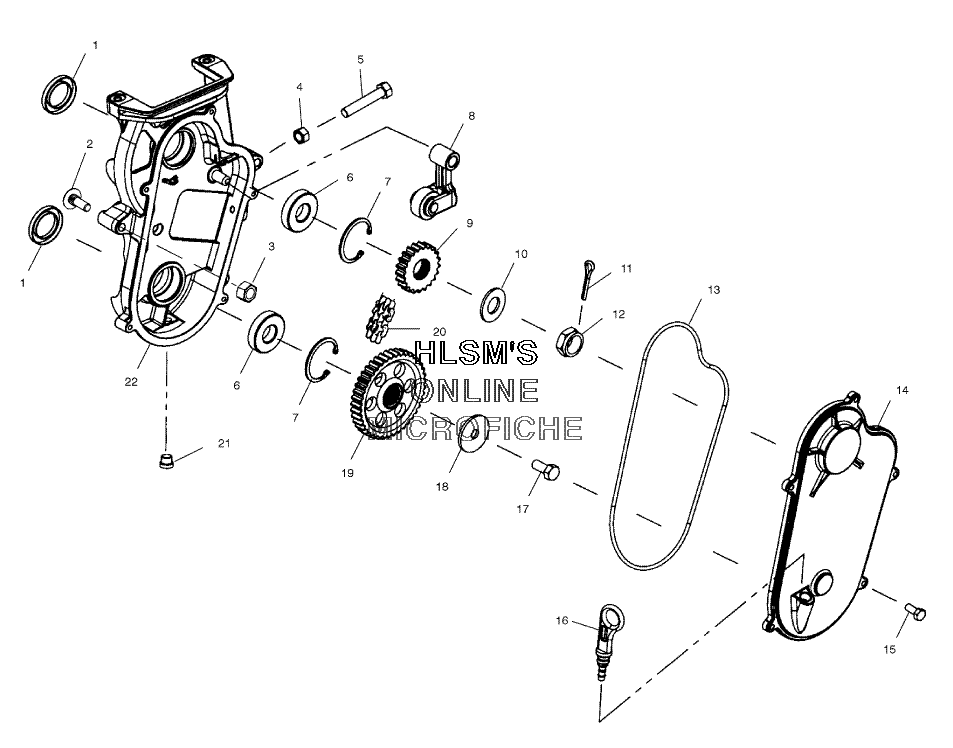

CHAINCASE ASSEMBLY для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7515477 SCREW, CARRIAGE
    SCREW, CARRIAGE
  • 3
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 4
    5132237 NUT CHAIN ADJUSTER (3/8 16)
    NUT CHAIN ADJUSTER (3/8 16)
  • 5
    7512470 SCREW
    SCREW
  • 6
    3514309 BEARING, BALL
    BEARING, BALL
  • 7
    7718406 RING, RETAINING
    RING, RETAINING
  • 8
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 8
    3553002 BEARING
    BEARING
  • 8
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 8
    7558702 WASHER THRUST
    WASHER THRUST
  • 8
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 8
    5630958 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 9
    3221095 SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
    SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
  • 10
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 11
    7661401 PIN, COTTER
    PIN, COTTER
  • 12
    7542811 NUT, THIN, NYLON INSERT Y
    NUT, THIN, NYLON INSERT Y
  • 13
    5411497 GASKET, O-RING
    GASKET, O-RING
  • 14
    5132368 COVER, CHNCASE, ALUMINUM (7.92 CD)
    COVER, CHNCASE, ALUMINUM (7.92 CD)
  • 15
    7512242 SCREW
    SCREW
  • 16
    1332250 DIPSTICK, W/MAGNET EDGE ASSY
    DIPSTICK, W/MAGNET EDGE ASSY
  • 17
    7517979 SCREW, HEXAGON HEAD/NYLON
    SCREW, HEXAGON HEAD/NYLON
  • 18
    7571618 WASHER, SPRING
    WASHER, SPRING
  • 19
    3222108 SPROCKET (39T/15T, 3/4W, HYVO PM)
    SPROCKET (39T/15T, 3/4W, HYVO PM)
  • 20
    3221110 CHAIN, HYVO 72P, 3/4W
    CHAIN, HYVO 72P, 3/4W
  • 21
    7052115 PLUG
    PLUG
  • 22
    5132773 CHAINCASE, 7.92 CD ALUMINUM
    CHAINCASE, 7.92 CD ALUMINUM
