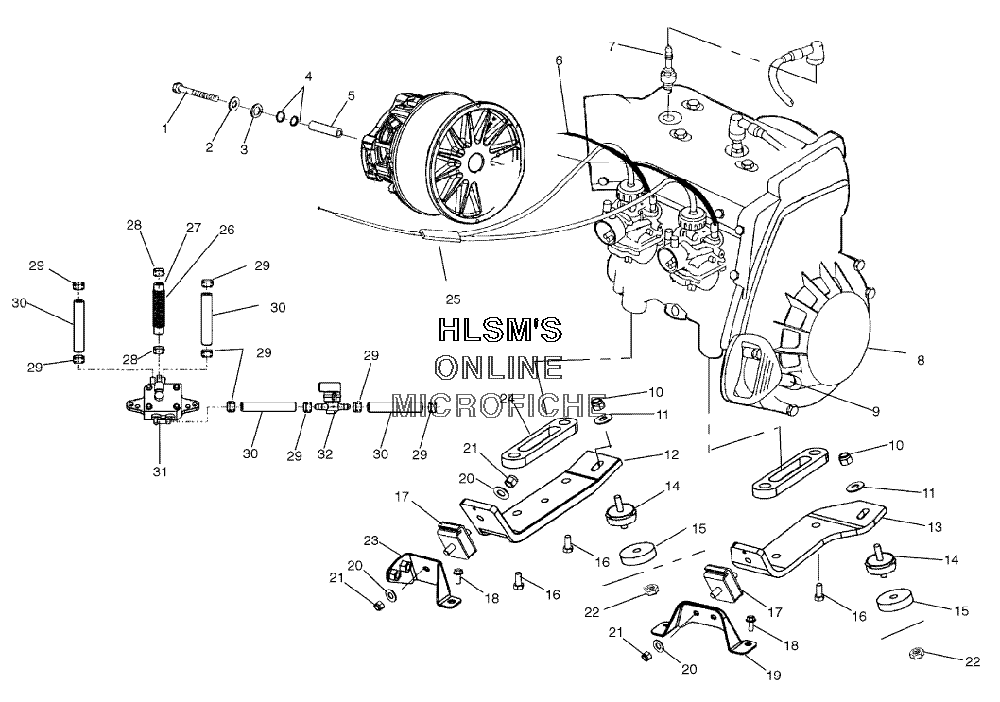

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517776 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RING,O-RING,
-
55020513 SPACERSPACER
-
67080290 CABLE, CHOKECABLE, CHOKE
-
73070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
83085618 ENGINE (EC55PM040 SB) (IF BUILT BEFORE 8/13/02)ENGINE (EC55PM040 SB) (IF BUILT BEFORE 8/13/02)
-
83087197 ENGINE EC55PM06/07 SB (IF BUILT AFTER 8/13/02)ENGINE EC55PM06/07 SB (IF BUILT AFTER 8/13/02)
-
95431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
107542451 NUT, NYLOKNUT, NYLOK
-
117555893 WASHER, FLATWASHER, FLAT
-
125245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
135246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
143021220 MOUNT ENGINE, 3/8 16MOUNT ENGINE, 3/8 16
-
155245117 SPACER ENGINE MOUNT .44SPACER ENGINE MOUNT .44
-
167517399 SCREWSCREW
-
173021206 MOUNT ENGINE, 3/8 16 RECTMOUNT ENGINE, 3/8 16 RECT
-
187517854 SCREWSCREW
-
195245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
207555806 WASHER, FLATWASHER, FLAT
-
217547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
227547180 NUT FLANGED, 3/8 16 NYLON ZNUT FLANGED, 3/8 16 NYLON Z
-
231013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
245245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
-
257080888 CABLE THROTTLECABLE THROTTLE
-
268360052-305 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
278450040-600 LINE FUEL (1/4 ID) (600 CM.)LINE FUEL (1/4 ID) (600 CM.)
-
287080003 CLAMP, HOSECLAMP, HOSE
-
297080307 CLAMP, HOSECLAMP, HOSE
-
308350018-600 TUBING, ETHER ERETHNE (160CM) (SVC)TUBING, ETHER ERETHNE (160CM) (SVC)
-
327052248 VALVE FUEL, PLASTIC INLINE 1/4"VALVE FUEL, PLASTIC INLINE 1/4"
