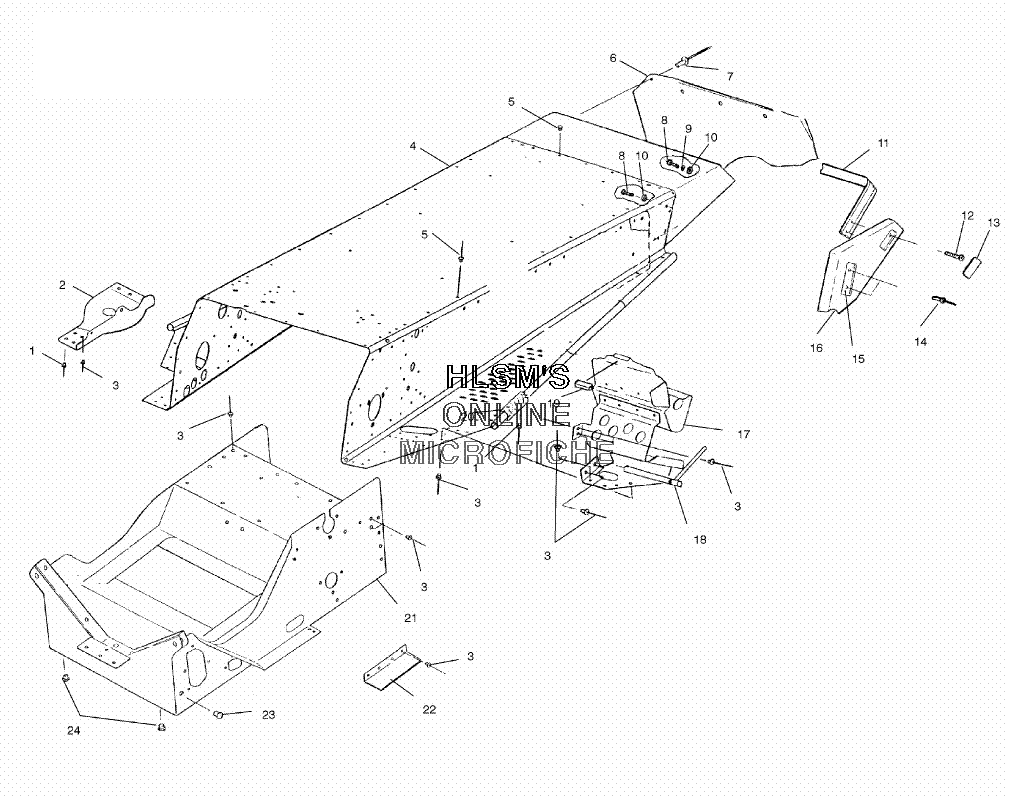

TUNNEL ASSEMBLY для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7661130 RIVET-3/16-.214-.420
    RIVET-3/16-.214-.420
  • 2
    5243419 GUARD-CHAINCASE SUMP, TUNNEL
    GUARD-CHAINCASE SUMP, TUNNEL
  • 3
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 4
    1013592 HOUSING, F/C RMK SPIERCE ASSY.
    HOUSING, F/C RMK SPIERCE ASSY.
  • 5
    7661837 RIVET
    RIVET
  • 6
    5410394-1106 FLAP-SNOW, MOLDED (BLACK W/SILVER)
    FLAP-SNOW, MOLDED (BLACK W/SILVER)
  • 7
    7621418 POP RIVET
    POP RIVET
  • 8
    7512240 BOLT
    BOLT
  • 9
    7552801 LOCK WASHER
    LOCK WASHER
  • 10
    7558301 WASHER
    WASHER
  • 11
    2670169 BUMPER, REAR ASSY. (BLACK)
    BUMPER, REAR ASSY. (BLACK)
  • 12
    7512084 SCREW
    SCREW
  • 13
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 14
    7621515 RIVET
    RIVET
  • 15
    5131546 SUPPORT, HAND-HOLD
    SUPPORT, HAND-HOLD
  • 16
    5432562 COVER (LEFT), BUMPER, W/HANDLE
    COVER (LEFT), BUMPER, W/HANDLE
  • 16
    5432563 COVER (RIGHT), BUMPER, W/HANDLE
    COVER (RIGHT), BUMPER, W/HANDLE
  • 17
    1012683 FOOTREST ASSY.
    FOOTREST ASSY.
  • 17
    1012684 FOOTREST ASSY. (RIGHT)
    FOOTREST ASSY. (RIGHT)
  • 18
    1012812-067 SUPPORT, TUNNEL (LEFT/BLACK)
    SUPPORT, TUNNEL (LEFT/BLACK)
  • 18
    1012813-067 SUPPORT, TUNNEL (RIGHT/BLACK)
    SUPPORT, TUNNEL (RIGHT/BLACK)
  • 19
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 20
    5243112 GRIP, TUNNEL ROLL
    GRIP, TUNNEL ROLL
  • 21
    1012689 WELD-BULKHEAD
    WELD-BULKHEAD
  • 22
    5222857 GUARD, ADAPTER GUIDE
    GUARD, ADAPTER GUIDE
  • 23
    7080416 PLUG, HOLE
    PLUG, HOLE
