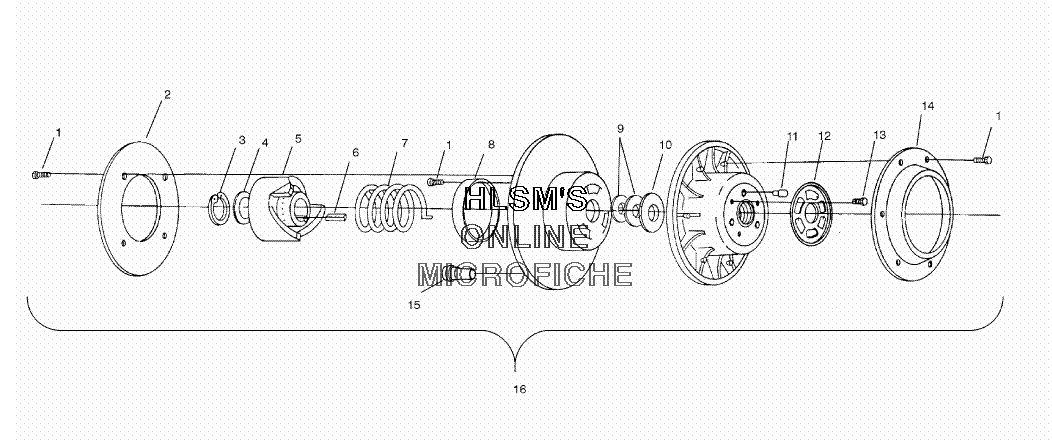

CLUTCH - DRIVEN для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5243158 PLATE-DRIVEN, VENTED
    PLATE-DRIVEN, VENTED
  • 3
    7714804 RING, RETAINING
    RING, RETAINING
  • 4
    7556804 WASHER
    WASHER
  • 5
    5131623 RAMP, DRIVEN, R32, MACH
    RAMP, DRIVEN, R32, MACH
  • 6
    7721103 KEY SQUARE
    KEY SQUARE
  • 7
    7041646 SPRING, CLUTCH (SVR/BLUE)
    SPRING, CLUTCH (SVR/BLUE)
  • 8
    3569803 BUSHING, D.U.
    BUSHING, D.U.
  • 9
    7556804 WASHER (.03)
    WASHER (.03)
  • 9
    7555898 WASHER (.02)
    WASHER (.02)
  • 9
    7556076 WASHER (.025)
    WASHER (.025)
  • 10
    7555865 WASHER, DRIVE CLUTCH (.075)
    WASHER, DRIVE CLUTCH (.075)
  • 11
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 12
    5222878 CAM, DRIVEN, ADJUSTABLE
    CAM, DRIVEN, ADJUSTABLE
  • 13
    7515133 SCREW
    SCREW
  • 14
    5243157 CAP-DRIVEN, VENTED
    CAP-DRIVEN, VENTED
  • 15
    5430466 BUTTON-RAMP
    BUTTON-RAMP
  • 16
    1321925 DRIVEN CLUTCH ASSY., BSC, 203 N/B (INCL. 1-15)
    DRIVEN CLUTCH ASSY., BSC, 203 N/B (INCL. 1-15)
