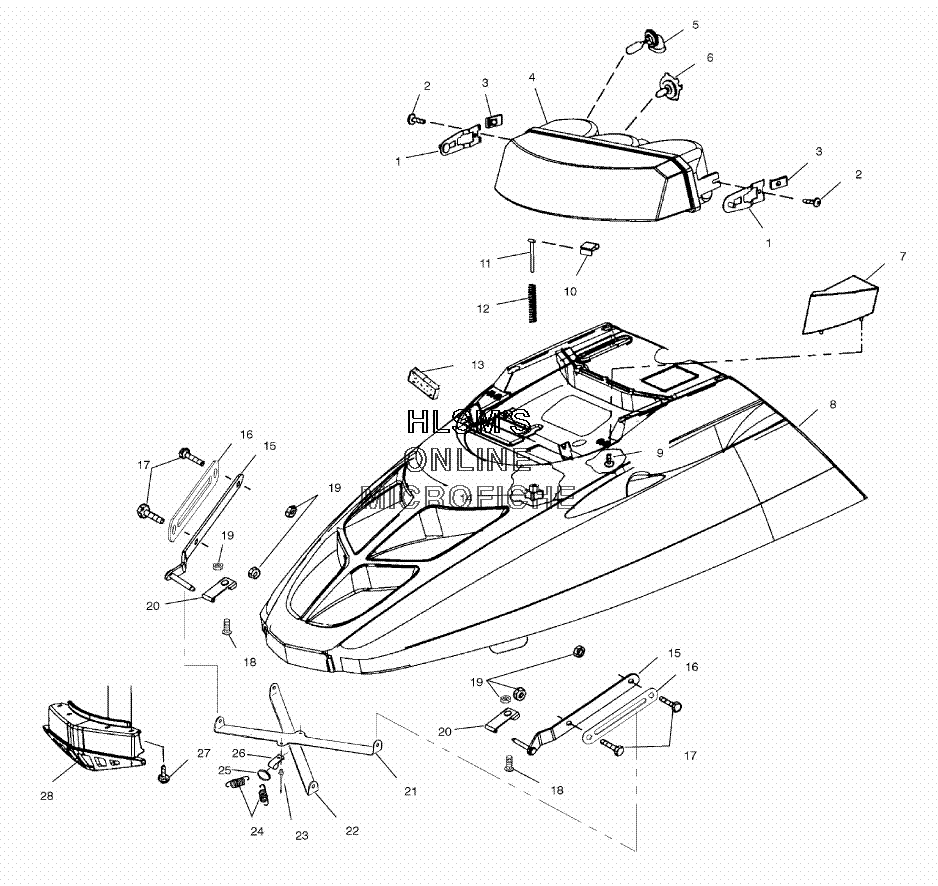

HOOD ASSEMBLY W/ HEADLIGHT для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1011944-067 MOUNT, WELD, H/L
    MOUNT, WELD, H/L
  • 2
    7515107 BOLT
    BOLT
  • 3
    7670057 NUT, SPEED
    NUT, SPEED
  • 4
    2433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)
    HEADLAMP ASSY., THREE BULB (INCL. BULBS)
  • 5
    4010253 BULB-HEADLIGHT, 50 WATT
    BULB-HEADLIGHT, 50 WATT
  • 6
    2870448 BULB, QUARTZ.H/L (INDY)
    BULB, QUARTZ.H/L (INDY)
  • 7
    5431855 LENS (LEFT), CLR.REFLECTOR
    LENS (LEFT), CLR.REFLECTOR
  • 7
    5431856 LENS (RIGHT), CLR.REFLECTOR
    LENS (RIGHT), CLR.REFLECTOR
  • 8
    2632170-341 HOOD ASSY., HYB, SVC (SONIC BLUE) (INCL. FOAM/FOIL)
    HOOD ASSY., HYB, SVC (SONIC BLUE) (INCL. FOAM/FOIL)
  • 9
    7511953 SCREW
    SCREW
  • 10
    7670040 CLIP-U TYPE
    CLIP-U TYPE
  • 11
    7517746 BOLT, TEE ADJUSTER, 2.25
    BOLT, TEE ADJUSTER, 2.25
  • 12
    7041308 SPRING, H/L.ADJ.
    SPRING, H/L.ADJ.
  • 13
    5811687 FOAM-HEADLIGHT SEAL W/PSA
    FOAM-HEADLIGHT SEAL W/PSA
  • 14
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKINGB
    KNOB, HEADLIGHT, ADJUST, LOCKINGB
  • 15
    1012750 HINGE (LEFT/UPPER)
    HINGE (LEFT/UPPER)
  • 15
    1012751 HINGE (RIGHT/UPPER)
    HINGE (RIGHT/UPPER)
  • 16
    5242948 PLATE-BOLT
    PLATE-BOLT
  • 17
    7515184 BOLT
    BOLT
  • 18
    7512193 BOLT
    BOLT
  • 19
    7542122 NUT-LOCK
    NUT-LOCK
  • 20
    5244395 PLATE, HINGE (LOWER)
    PLATE, HINGE (LOWER)
  • 21
    5242945 BRACE, HOOD (UPPER)
    BRACE, HOOD (UPPER)
  • 22
    5242946 BRACE, HOOD (LOWER)
    BRACE, HOOD (LOWER)
  • 23
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 24
    7041732 SPRING-EXT.
    SPRING-EXT.
  • 25
    7041760 SPRING-ATTACHMENT RING
    SPRING-ATTACHMENT RING
  • 26
    7080372 CLAMP, RETAINER
    CLAMP, RETAINER
  • 27
    7517441 SCREW
    SCREW
  • 28
    5432931 SCREEN, FRONT, HYB
    SCREEN, FRONT, HYB
