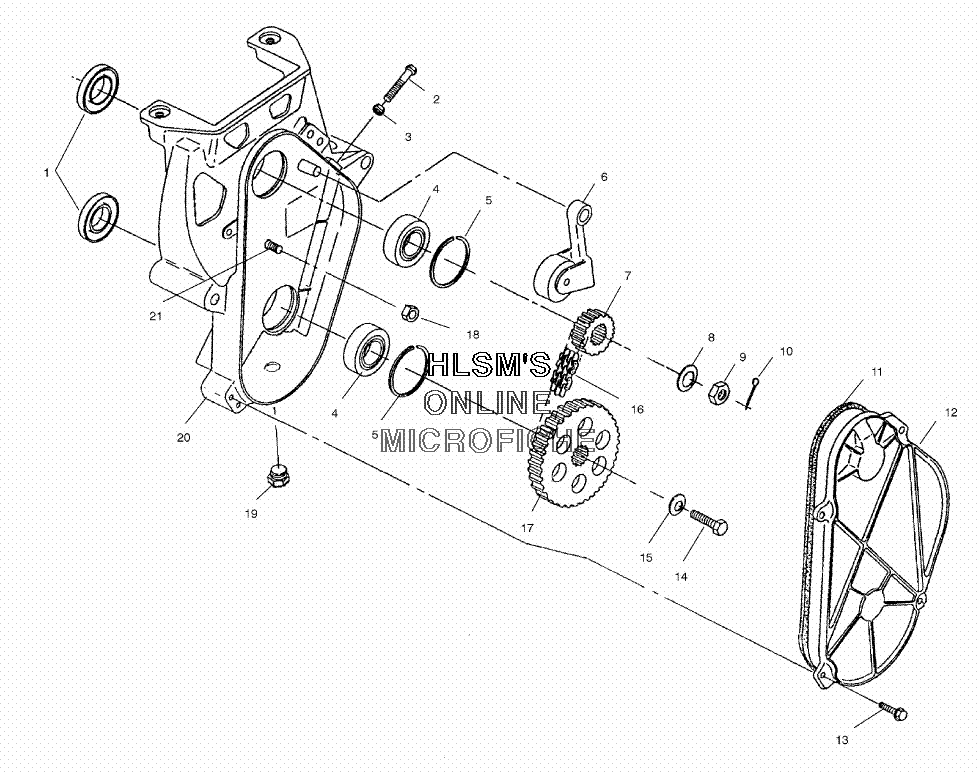

CHAINCASE ASSEMBLY для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515551 SCREWSCREW
-
37542404 NUTNUT
-
43514309 BEARING, BALLBEARING, BALL
-
57718406 RING, RETAININGRING, RETAINING
-
61332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
63553002 BEARINGBEARING
-
65630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
67558702 WASHER THRUSTWASHER THRUST
-
67662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
65630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
73221094 SPROCKET (18 TEETH), 3/4W, 15 SPL, HV, PMSPROCKET (18 TEETH), 3/4W, 15 SPL, HV, PM
-
87571620 WASHER, SLOTTEDWASHER, SLOTTED
-
97542811 NUTNUT
-
107661401 COTTER PINCOTTER PIN
-
115411207 GASKET, CHAINCASE, LONGGASKET, CHAINCASE, LONG
-
125630691 COVER, CHAINCASECOVER, CHAINCASE
-
137512242 SCREWSCREW
-
147517979 SCR-5/16-18 3/4 HXHD/NYL, GR8-PSCR-5/16-18 3/4 HXHD/NYL, GR8-P
-
157571618 WASHERWASHER
-
163221112 CHAIN, HYVO 68 P, 3/4WCHAIN, HYVO 68 P, 3/4W
-
173222101 SPROCKET (41/15 TEETH) SPL, HYVO, PMSPROCKET (41/15 TEETH) SPL, HYVO, PM
-
187542451 NUT, NYLOCNUT, NYLOC
-
197052115 PLUG (INCL. O-RING)PLUG (INCL. O-RING)
-
205131455 CHAINCASE, VENTEDCHAINCASE, VENTED
-
217515477 BOLTBOLT
