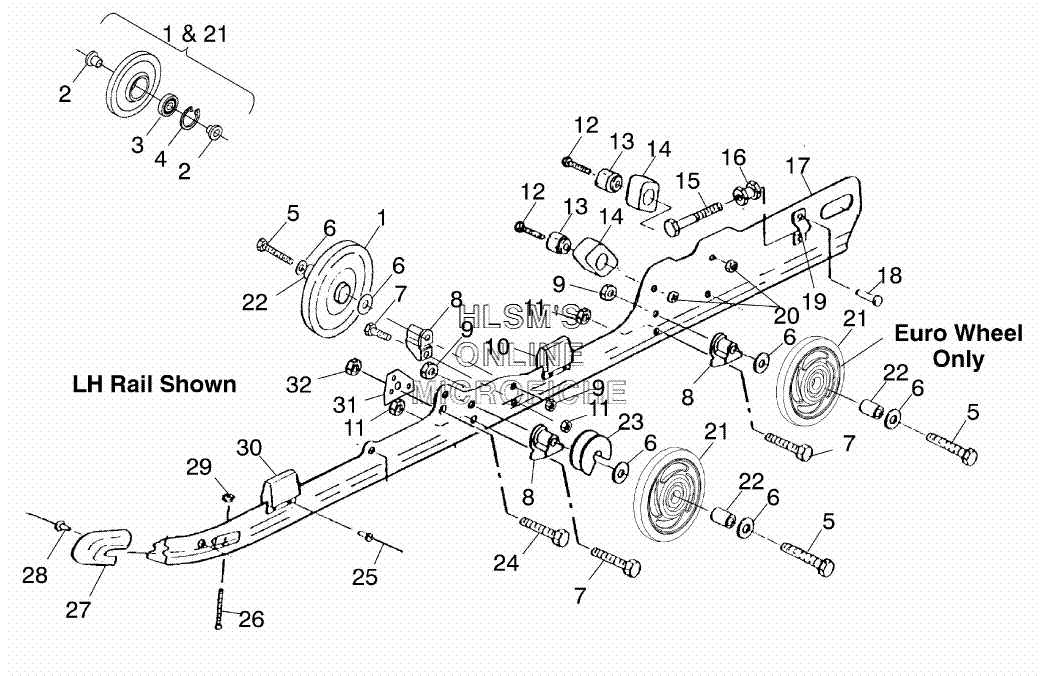

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris SPORT TOURING ES EURO (S02SD5BE) - 2002 года выпуска`
-
№АртикулНазвание
-
11543018 WHEEL, IDLER (INCL. 2, 3, 4)WHEEL, IDLER (INCL. 2, 3, 4)
-
25431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
33514305 BEARING, CHAINCASE (1 PER WHEEL)BEARING, CHAINCASE (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
57512538 BOLT (EURO QTY. 6)BOLT (EURO QTY. 6)
-
67555852 WASHER, FLAT (EURO QTY. 12)WASHER, FLAT (EURO QTY. 12)
-
77512404 BOLT (EURO QTY. 6)BOLT (EURO QTY. 6)
-
85630399 SPACER (EURO QTY. 6)SPACER (EURO QTY. 6)
-
97542525 NUT, NYLOCK (EURO QTY. 6)NUT, NYLOCK (EURO QTY. 6)
-
105811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
105222629 REINF., BUMPERREINF., BUMPER
-
117542439 NUT, NYLOK (EURO QTY. 6)NUT, NYLOK (EURO QTY. 6)
-
127515545 BOLTBOLT
-
135131113 MOUNT, F. BUMPER PIVOT ARMMOUNT, F. BUMPER PIVOT ARM
-
145410925 BUMPER, F. PIVOT ARMBUMPER, F. PIVOT ARM
-
157517227 SCREWSCREW
-
167542404 NUTNUT
-
171541155 RAIL ASSY. (LEFT, X, 10, 136 INCL. 10, 18, 19, 25, 27, 28, 30)RAIL ASSY. (LEFT, X, 10, 136 INCL. 10, 18, 19, 25, 27, 28, 30)
-
171541156 RAIL ASSY. (RIGHT, X, 10, 136 INCL. 10, 18, 19, 25, 27, 28, 30)RAIL ASSY. (RIGHT, X, 10, 136 INCL. 10, 18, 19, 25, 27, 28, 30)
-
187621501 RIVETRIVET
-
195130530 BLOCK, IDLER BOLT ADJ.BLOCK, IDLER BOLT ADJ.
-
207542411 NUT LOCKNUT LOCK
-
211594082-256 WHEEL (BOGIE, SCRL, C.RED INCL. 2, 3, 4)(EURO QTY. 4)WHEEL (BOGIE, SCRL, C.RED INCL. 2, 3, 4)(EURO QTY. 4)
-
225333116 SPACER, WHEEL (EURO QTY. 6)SPACER, WHEEL (EURO QTY. 6)
-
235433575 SPRING, ROLLER (SQ)SPRING, ROLLER (SQ)
-
247512457 BOLTBOLT
-
257621476 RIVETRIVET
-
267515175 BOLTBOLT
-
275433005 COVER, RAIL TIPCOVER, RAIL TIP
-
287621435 RIVETRIVET
-
297542122 NUT, LOCKNUT, LOCK
-
305810554 BUMPER, RAILBUMPER, RAIL
-
305222629 REINF., BUMPERREINF., BUMPER
-
315211843 PLATE, RAILSUPPORT (136'')PLATE, RAILSUPPORT (136'')
-
327542403 NUT LOCKNUT LOCK
