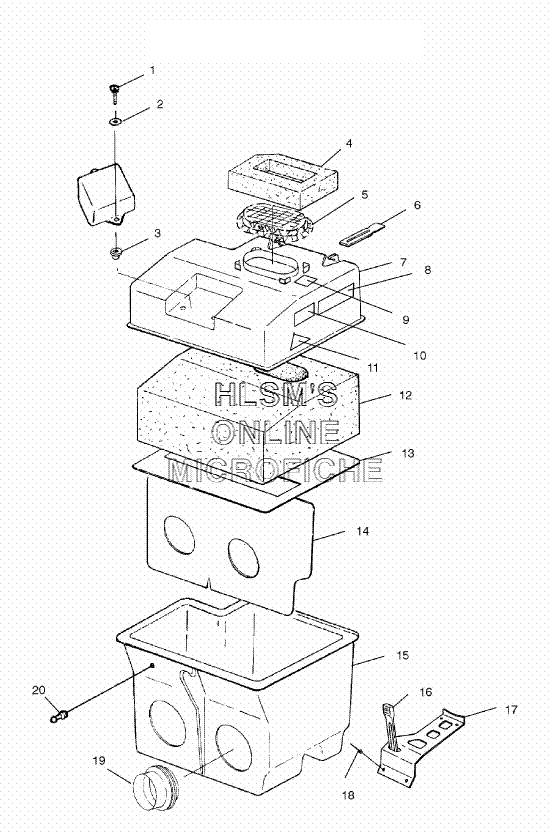

AIR BOX для Polaris SPORT TOURING ES EURO (S02SD5BE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512222 SCREW
    SCREW
  • 2
    7552604 WASHER
    WASHER
  • 3
    7541923 NUT, WELL
    NUT, WELL
  • 4
    5811606 FOAM, AIR BOX, CHIMNEY, HYB.
    FOAM, AIR BOX, CHIMNEY, HYB.
  • 5
    5243219 MESH, WIRE, FORMED
    MESH, WIRE, FORMED
  • 6
    5411075 RETAINER, TAB
    RETAINER, TAB
  • 7
    5433565 TOP, SILENCER INTAKE
    TOP, SILENCER INTAKE
  • 8
    7073820 DECAL, ADJ. DRIVEN CLUTCH
    DECAL, ADJ. DRIVEN CLUTCH
  • 9
    7075351 DECAL, CAUTION, AIR BOX
    DECAL, CAUTION, AIR BOX
  • 10
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 11
    7079177 DECAL, CAUTION, BURN HAZARD
    DECAL, CAUTION, BURN HAZARD
  • 12
    5811564 FOAM, AIR BOX, TOP, INTERNAL
    FOAM, AIR BOX, TOP, INTERNAL
  • 13
    5850134 PLATE, SILENCER INTAKE
    PLATE, SILENCER INTAKE
  • 14
    5850139 PLATE, SILENCER, INTAKE, VERT.
    PLATE, SILENCER, INTAKE, VERT.
  • 15
    5432932 SILENCER, INTAKE, DRILLED
    SILENCER, INTAKE, DRILLED
  • 16
    5411129 STRAP, TIE, DOWN
    STRAP, TIE, DOWN
  • 17
    5243729 BRACKET, SILENCER MOUNT (LOWER)
    BRACKET, SILENCER MOUNT (LOWER)
  • 18
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 19
    5411467 BOOT, CARB.
    BOOT, CARB.
  • 20
    7052127 FITTING, HOSE
    FITTING, HOSE
