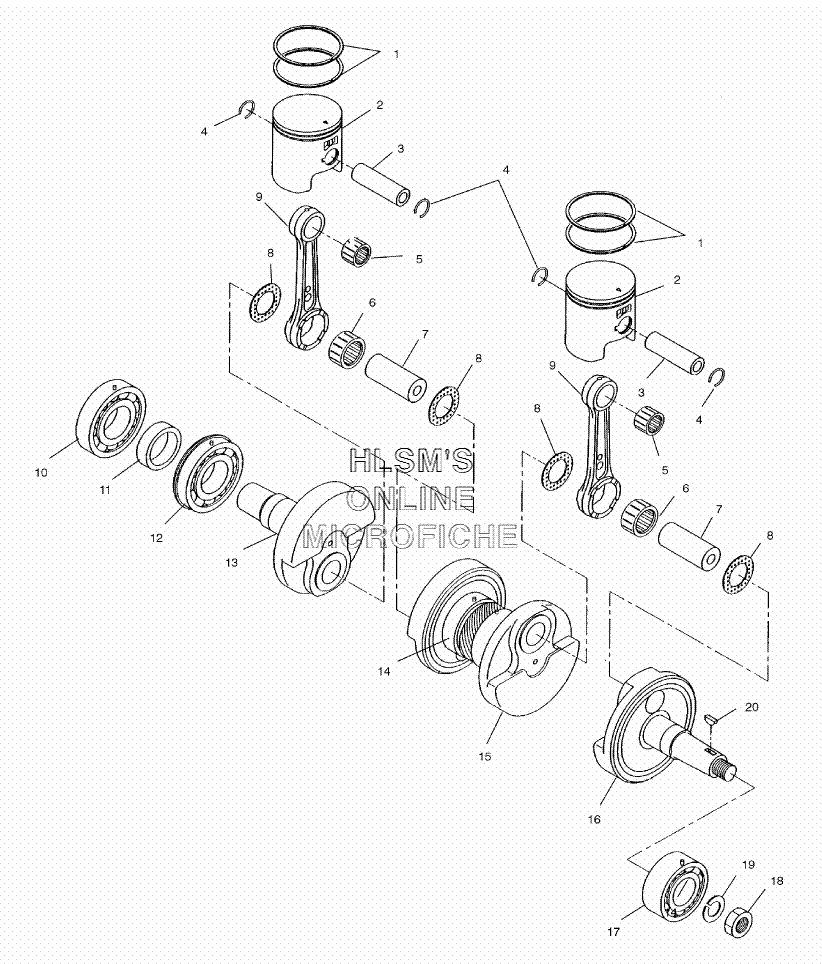

PISTON AND CRANKSHAFT для Polaris SPORT TOURING ES EURO (S02SD5BE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3086988 RING, PISTON (STANDARD)
    RING, PISTON (STANDARD)
  • 1
    3086989 RING, PISTON (0.25MM/.010''O/S) (OPT)
    RING, PISTON (0.25MM/.010''O/S) (OPT)
  • 1
    3086990 RING, PISTON (0.50MM/.020''O/S) (OPT)
    RING, PISTON (0.50MM/.020''O/S) (OPT)
  • 2
    3087024 PISTON, SET (STANDARD)(INCL. 4)
    PISTON, SET (STANDARD)(INCL. 4)
  • 2
    3087025 PISTON, SET (0.25M/.010''O/S)(INCL. 4) (OPT)
    PISTON, SET (0.25M/.010''O/S)(INCL. 4) (OPT)
  • 2
    3087026 PISTON, SET (0.50M/.020''O/S)(INCL. 4) (OPT)
    PISTON, SET (0.50M/.020''O/S)(INCL. 4) (OPT)
  • 3
    3083838 PIN, PISTON
    PIN, PISTON
  • 4
    3084167 CLIP
    CLIP
  • 5
    3085595 BEARING, SMALL END
    BEARING, SMALL END
  • 6
    3086390 BEARING, END (LARGE)
    BEARING, END (LARGE)
  • 7
    3083456 PIN, CRANK 2
    PIN, CRANK 2
  • 8
    3083277 SPACER (CRANKPIN)
    SPACER (CRANKPIN)
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3085675 CRANKSHAFT (#3, PTO SIDE)
    CRANKSHAFT (#3, PTO SIDE)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3085674 CRANKSHAFT (#2 INCL. 7)
    CRANKSHAFT (#2 INCL. 7)
  • 16
    3086389 CRANKSHAFT (INCL. 6, 17)
    CRANKSHAFT (INCL. 6, 17)
  • 16
    3085673 CRANKSHAFT (#1, MAG SIDE)
    CRANKSHAFT (#1, MAG SIDE)
  • 17
    3084681 BEARING, BALL
    BEARING, BALL
  • 18
    3083093 NUT
    NUT
  • 19
    3083094 WASHER, SPRING
    WASHER, SPRING
  • 20
    3081543 KEY WOODRUFF
    KEY WOODRUFF
