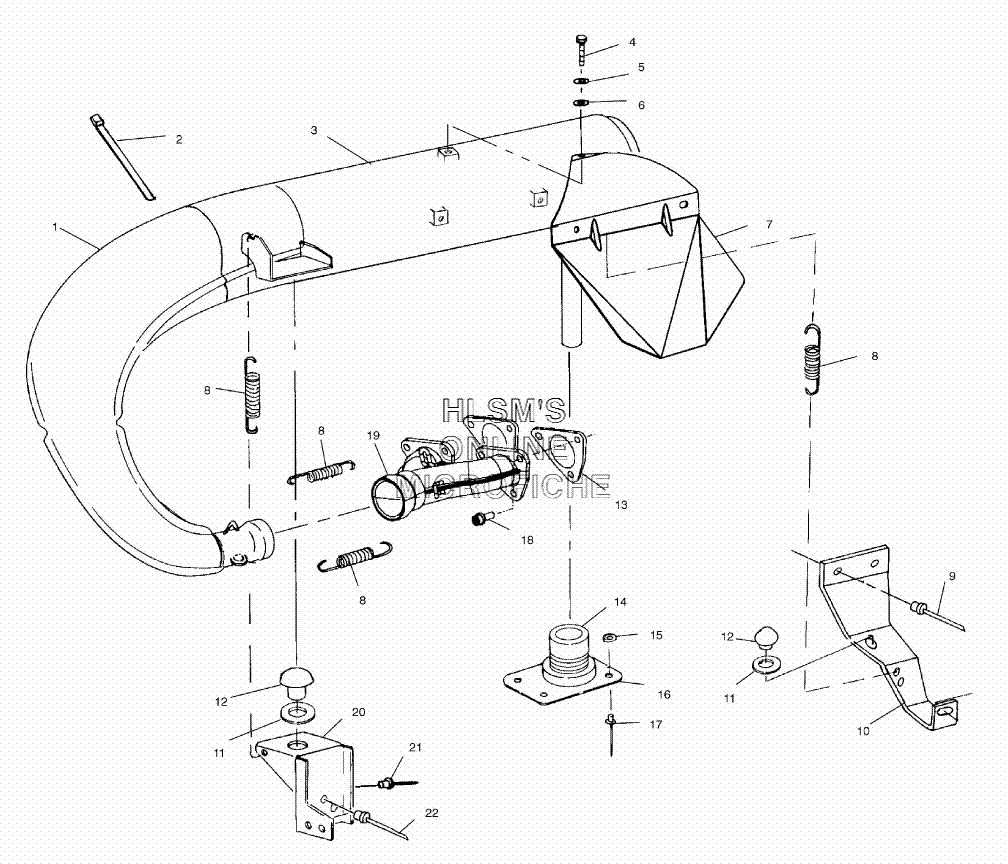

EXHAUST SYSTEM для Polaris SPORT TOURING ES EURO (S02SD5BE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5243197 COVER, MEGAPHONE (TOP)
    COVER, MEGAPHONE (TOP)
  • 1
    5243198 COVER, MEGAPHONE (BOTTOM)
    COVER, MEGAPHONE (BOTTOM)
  • 1
    5830162 MATTE, SOUND
    MATTE, SOUND
  • 2
    7080740 CLAMP, WORM (.44 X 3.69)
    CLAMP, WORM (.44 X 3.69)
  • 2
    7080808 CLAMP, WORM DRIVE (.44 X 5.5)
    CLAMP, WORM DRIVE (.44 X 5.5)
  • 2
    7080809 CLAMP, WORM DRIVE (.44 X 2.75)
    CLAMP, WORM DRIVE (.44 X 2.75)
  • 3
    1260927 PIPE, TUNED (INCL. 1, 2)
    PIPE, TUNED (INCL. 1, 2)
  • 3
    1260927 PIPE, TUNED
    PIPE, TUNED
  • 4
    7515354 BOLT
    BOLT
  • 5
    7552901 LOCK WASHER
    LOCK WASHER
  • 6
    7555734 WASHER
    WASHER
  • 7
    5243214 SHIELD, MUFFLER
    SHIELD, MUFFLER
  • 8
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 9
    7621452 RIVET
    RIVET
  • 10
    5242735-067 BRACKET, TUNED PIPE/CHASSIS (BLACK)
    BRACKET, TUNED PIPE/CHASSIS (BLACK)
  • 11
    7556004 WASHER
    WASHER
  • 12
    5411576 DAMPENER, VIBRATION W/RIBS
    DAMPENER, VIBRATION W/RIBS
  • 13
    3085714 GASKET, EXHAUST (SEE CYLINDER REF. 4)
    GASKET, EXHAUST (SEE CYLINDER REF. 4)
  • 14
    5410502 BOOT, EXHAUST
    BOOT, EXHAUST
  • 15
    7558212 WASHER (13/64X1/2X18GA, FL, Y)
    WASHER (13/64X1/2X18GA, FL, Y)
  • 16
    5432465 HAT, EXHAUST SNOW DEFLECTOR
    HAT, EXHAUST SNOW DEFLECTOR
  • 17
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 18
    7517555 SCREW (HXSOC)
    SCREW (HXSOC)
  • 19
    1260981-029 MANIFOLD (BLACK HI, TEM)
    MANIFOLD (BLACK HI, TEM)
  • 20
    5242798-067 SUPPORT, MUFFLER (FRT)
    SUPPORT, MUFFLER (FRT)
  • 21
    7661130 RIVET (3/16, .214, .420)
    RIVET (3/16, .214, .420)
  • 22
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
