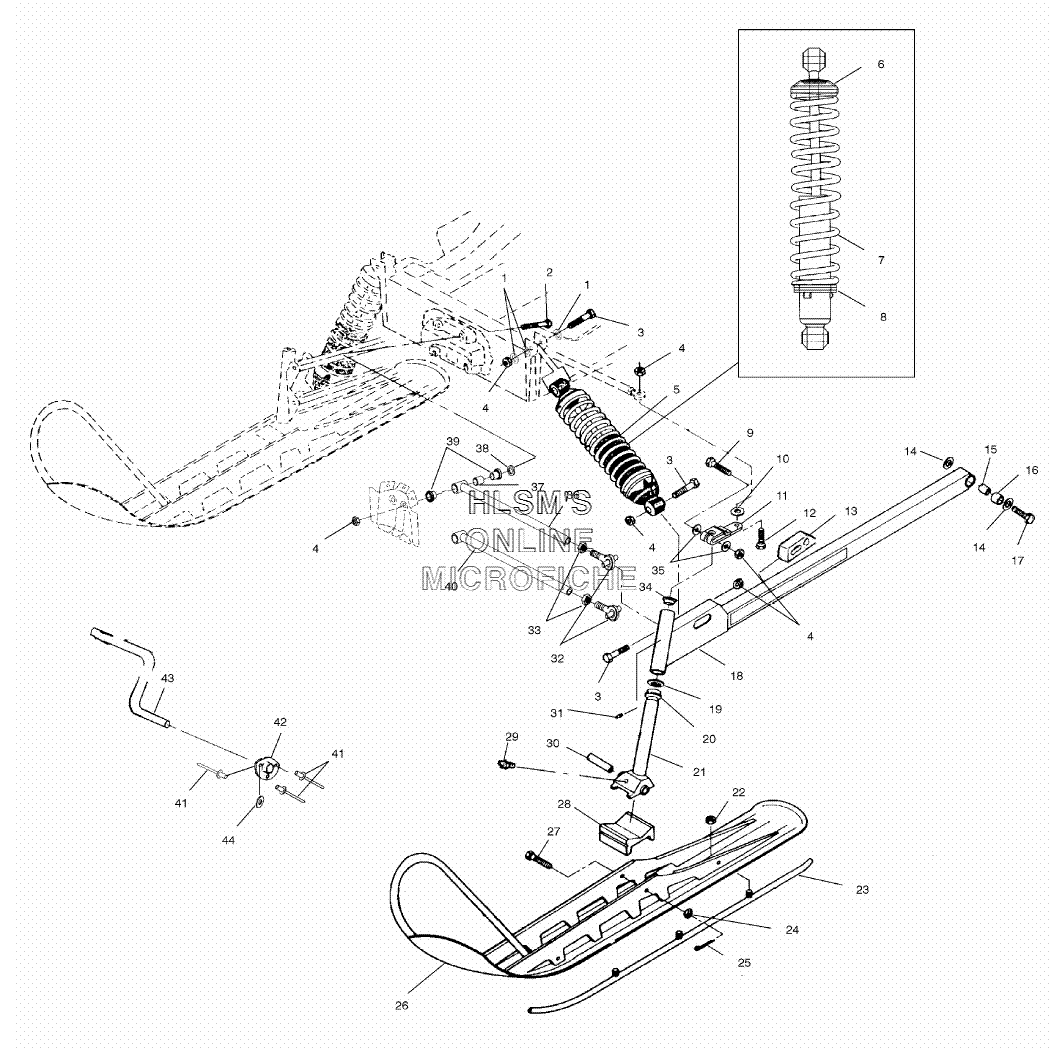

SUSPENSION - FRONT W/ SKI для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
17555806 WASHER, FLATWASHER, FLAT
-
27515417 SCREWSCREW
-
37515415 SCREWSCREW
-
47542439 NUT, NYLOCKNUT, NYLOCK
-
57041788 SHOCK, NITREXSHOCK, NITREX
-
65220225 RETAINER, TOPRETAINER, TOP
-
77041261-067 SPRING COMP. (BLACK)SPRING COMP. (BLACK)
-
85210953 RETAINER, SPRINGRETAINER, SPRING
-
97517583 SCREWSCREW
-
107555976 WASHERWASHER
-
115220326-067 ARM, STEERINGARM, STEERING
-
127515528 BOLTBOLT
-
135410384 SLIDE, SWAYBARSLIDE, SWAYBAR
-
147555721 WASHERWASHER
-
155010187 TUBE, TRAILING ARMTUBE, TRAILING ARM
-
165410382 PIVOT, TRAILING ARMPIVOT, TRAILING ARM
-
177512557 BOLTBOLT
-
181823136-067 ARM TRAILING (BLACK) (LEFT)ARM TRAILING (BLACK) (LEFT)
-
181823137-067 ARM TRAILING (BLACK) (RIGHT)ARM TRAILING (BLACK) (RIGHT)
-
197556509 BUSHINGBUSHING
-
203574208 BUSHING, FLANGEDBUSHING, FLANGED
-
216230073-067 SPINDLE (BLACK)SPINDLE (BLACK)
-
227542324 NUT, NYLOCKNUT, NYLOCK
-
231820267 SKAG, SHORT(20)SKAG, SHORT(20)
-
247542438 NUT, CASTLENUT, CASTLE
-
257661209 PIN, COTTERPIN, COTTER
-
261820333-067 SKI (BLACK)SKI (BLACK)
-
277515462 SCREWSCREW
-
285521231 STOP, RUBBERSTOP, RUBBER
-
297080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
305010158 BUSHING, PIVOTBUSHING, PIVOT
-
317080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
327061069 ROD END (1.41''WD, 3/8 BR) (RIGHT)ROD END (1.41''WD, 3/8 BR) (RIGHT)
-
337542520 NUT, JAMNUT, JAM
-
343573909 BUSHING, FLANGEBUSHING, FLANGE
-
357555832 WASHERWASHER
-
361820658-067 RADIUS ROD (UPPER) (BLACK)RADIUS ROD (UPPER) (BLACK)
-
375010252 BUSHINGBUSHING
-
387555797 WASHER, FLATWASHER, FLAT
-
395431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
401820660-067 RADIUS ROD (LOWER) (BLACK)RADIUS ROD (LOWER) (BLACK)
-
417621477 RIVETRIVET
-
425410383 BUSHING, SWAYBARBUSHING, SWAYBAR
-
435243397-067 SWAY BAR (BLACK)SWAY BAR (BLACK)
-
447555904 BURR, RIVETBURR, RIVET
