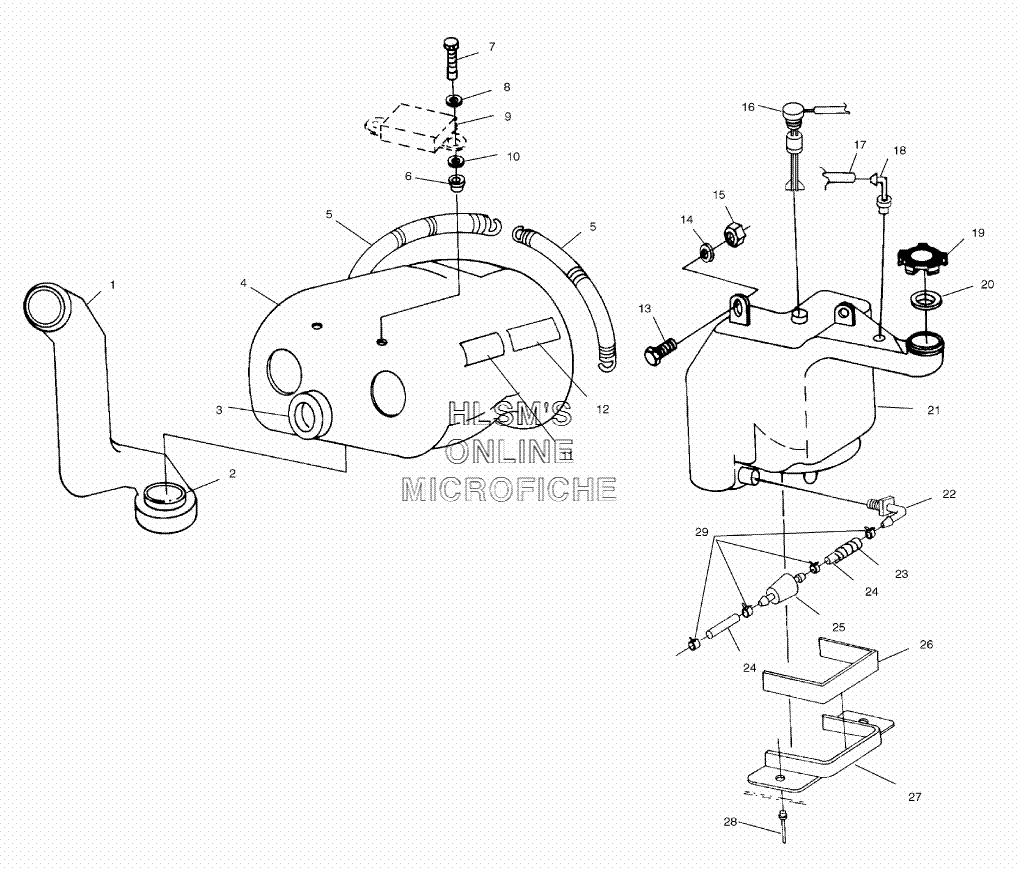

OIL TANK W/ AIR BOX ASSEMBLY для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5431354 DUCT, INTAKE
    DUCT, INTAKE
  • 2
    5410374 SEAL, O-RING
    SEAL, O-RING
  • 3
    5410311 BOOT, SILENCER
    BOOT, SILENCER
  • 4
    5431521 SILENCER, INTAKE DRILLED
    SILENCER, INTAKE DRILLED
  • 5
    7041244 SPRING, HOLDDOWN
    SPRING, HOLDDOWN
  • 6
    7541923 NUT, WELL
    NUT, WELL
  • 7
    7512222 SCREW
    SCREW
  • 8
    7552604 WASHER
    WASHER
  • 9
    3085490 FUEL PUMP ASSY. (SEE FUEL PUMP REF. 3)
    FUEL PUMP ASSY. (SEE FUEL PUMP REF. 3)
  • 10
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 11
    7075348 DECAL, INTAKE
    DECAL, INTAKE
  • 12
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 13
    7512240 BOLT
    BOLT
  • 14
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 15
    7542122 NUT, NYLOCK
    NUT, NYLOCK
  • 16
    4110134 SENSOR, OIL LEVEL
    SENSOR, OIL LEVEL
  • 17
    8450061-600 FUEL LINE
    FUEL LINE
  • 18
    7052095 FITTING (90 DEG 1/8'')
    FITTING (90 DEG 1/8'')
  • 19
    5430779 CAP, OIL TANK
    CAP, OIL TANK
  • 20
    5810141 GASKET, OIL CAP
    GASKET, OIL CAP
  • 21
    5431488 TANK, OIL, DRILLED
    TANK, OIL, DRILLED
  • 22
    7052056 FITTING, OUTLET
    FITTING, OUTLET
  • 23
    4010051-30 CONDUIT, CONVOL (30 CM)
    CONDUIT, CONVOL (30 CM)
  • 24
    8450003-1525 FUEL LINE (1/4 ID/1525 CM.)
    FUEL LINE (1/4 ID/1525 CM.)
  • 25
    2530009 FILTER, SMALL-IN LINE
    FILTER, SMALL-IN LINE
  • 26
    5810522 PAD, OIL TANK
    PAD, OIL TANK
  • 27
    5222673 BRACKET, LOW. OILTANK
    BRACKET, LOW. OILTANK
  • 28
    7621453 RIVET
    RIVET
  • 29
    7080307 CLAMP, HOSE
    CLAMP, HOSE
