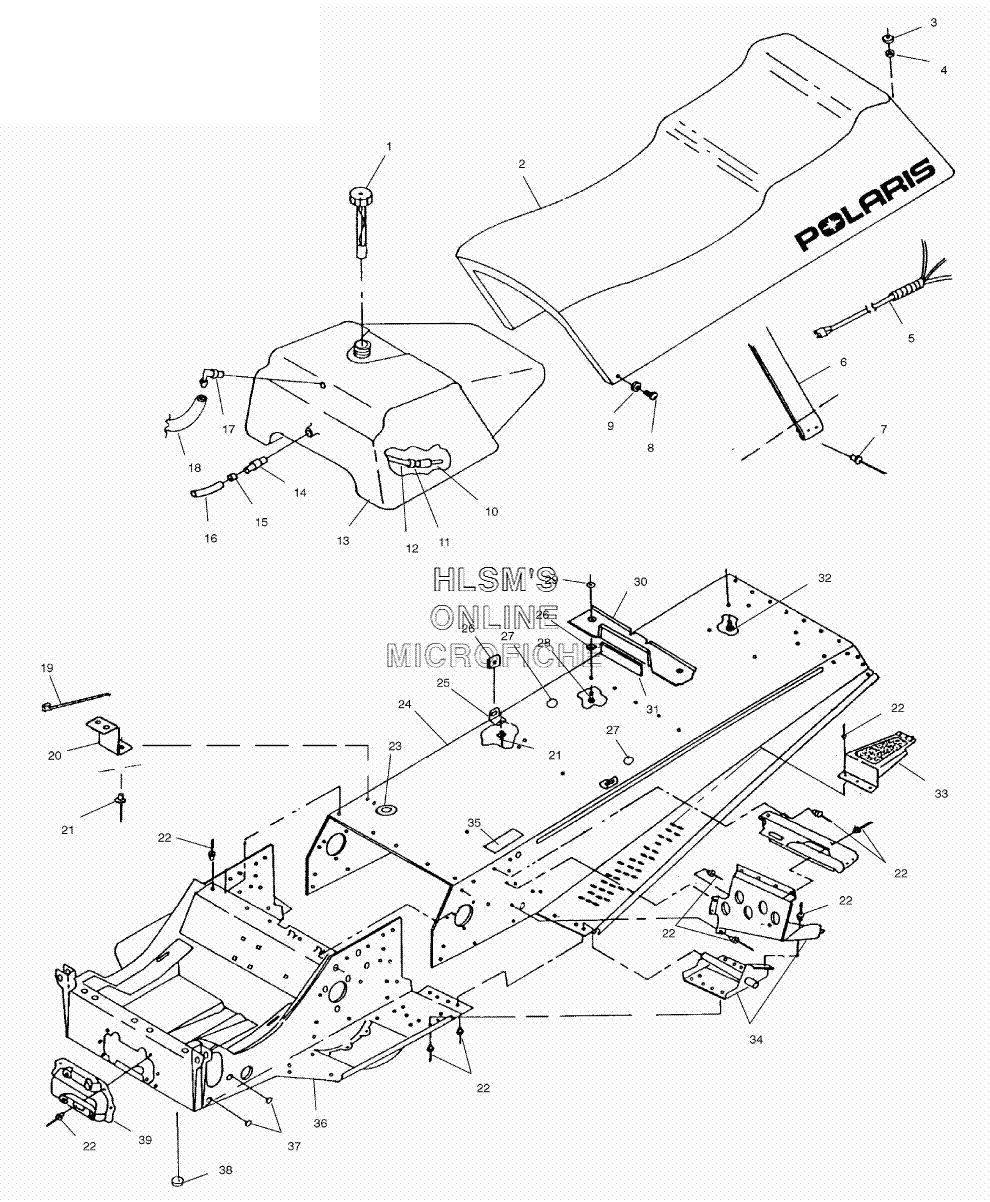

SEAT W/ TUNNEL ASSEMBLY для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
12511245 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22682636 SEAT CUSHION, ASSY. (INCL. 5)SEAT CUSHION, ASSY. (INCL. 5)
-
22682637 SEAT COVER, 2-UP ASSY.SEAT COVER, 2-UP ASSY.
-
37542324 NUT, NYLOCKNUT, NYLOCK
-
47558403 WASHER WROUGHTWASHER WROUGHT
-
52460237 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
67080434 BELT, SEATBELT, SEAT
-
77621472 RIVETRIVET
-
87515111 SCREWSCREW
-
97555798 WASHERWASHER
-
107052243 FUEL PICKUP W/FILTERFUEL PICKUP W/FILTER
-
117080402 RING, COMPRESRING, COMPRES
-
128350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
132520179 TANK, FUEL ASSY. (INCL. 10, 14, 17, 18)TANK, FUEL ASSY. (INCL. 10, 14, 17, 18)
-
147052023 FITTING, OUTLETFITTING, OUTLET
-
157080307 CLAMP, HOSECLAMP, HOSE
-
168350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
177052095 FITTING (90 DEG 1/8'')FITTING (90 DEG 1/8'')
-
188450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
197080138 CABLE TIECABLE TIE
-
205220520-067 BRACKET (STANDARD) (BLACK)BRACKET (STANDARD) (BLACK)
-
217621453 RIVETRIVET
-
227661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
235410021 GROMMET RUBBERGROMMET RUBBER
-
241013572 TUNNEL ASSY. X-LITE 133 SPIERCE (INCL. 26)TUNNEL ASSY. X-LITE 133 SPIERCE (INCL. 26)
-
255222452-067 BRACKET CONSOLE/SEAT MOUNTBRACKET CONSOLE/SEAT MOUNT
-
267670021 SPEED NUTSPEED NUT
-
277080592 CAPLUG (3/4'')CAPLUG (3/4'')
-
287512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
297542122 NUT, NYLOCKNUT, NYLOCK
-
305222330-067 STRAP, GASTANK (BLACK)STRAP, GASTANK (BLACK)
-
315420126 CUSHION, TANK H.D.CUSHION, TANK H.D.
-
327512331 BOLT, CARRIAGEBOLT, CARRIAGE
-
335830007 PAD, FOOT SAFETY (LEFT)PAD, FOOT SAFETY (LEFT)
-
335830008 PAD, FOOT SAFETY (RIGHT)PAD, FOOT SAFETY (RIGHT)
-
335220893 FOOTREST (LEFT) (REAR)FOOTREST (LEFT) (REAR)
-
335220894 FOOTREST (RIGHT) (REAR)FOOTREST (RIGHT) (REAR)
-
341011830 FOOTREST ASSY. (LEFT)FOOTREST ASSY. (LEFT)
-
341011826 FOOTREST ASSY. (RIGHT) (STARLITE)FOOTREST ASSY. (RIGHT) (STARLITE)
-
355810502 PAD, AIR BOXPAD, AIR BOX
-
361012587-067 BULKHEAD (BLACK)BULKHEAD (BLACK)
-
377080416 PLUG, HOLEPLUG, HOLE
-
387080398 PLUG, HOLEPLUG, HOLE
-
395630924 MOUNT, RADIUS RODMOUNT, RADIUS ROD
