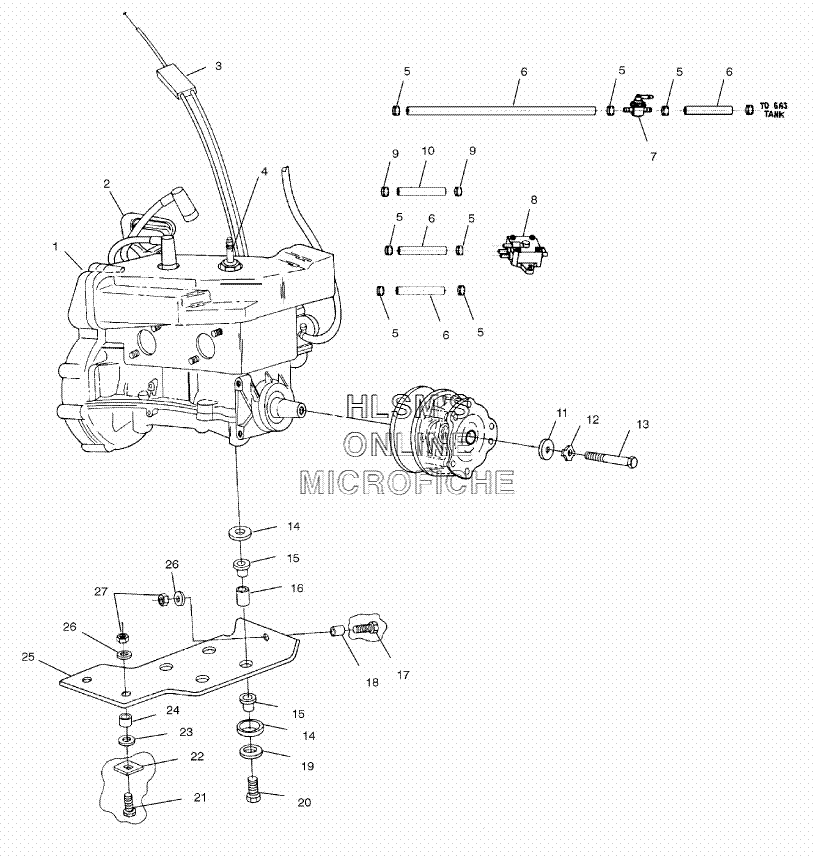

ENGINE MOUNTING W/ SHORT BLOCK для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3084620 ENGINE, SHORT BLOCK (EC34-2PM-02/04) SEE NOTE:
    ENGINE, SHORT BLOCK (EC34-2PM-02/04) SEE NOTE:
  • 2
    5431499 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 3
    7080557 CABLE, THROTTLE
    CABLE, THROTTLE
  • 4
    3070156 SPARKPLUG
    SPARKPLUG
  • 5
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    8350018-600 TUBING, ETHER ERETHANE (160CM)
    TUBING, ETHER ERETHANE (160CM)
  • 7
    7052248 VALVE, FUEL PLASTIC INLINE 1/4''
    VALVE, FUEL PLASTIC INLINE 1/4''
  • 8
    3085490 FUEL PUMP ASSY. (SEE FUEL PUMP REF. 3)
    FUEL PUMP ASSY. (SEE FUEL PUMP REF. 3)
  • 9
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    8450040-600 FUEL LINE (1/4 ID/600 CM.)
    FUEL LINE (1/4 ID/600 CM.)
  • 11
    5010278 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 12
    7575202 WASHER LOCK
    WASHER LOCK
  • 13
    7512566 BOLT
    BOLT
  • 14
    5221901 CAP, DAMPENER VIBRATION
    CAP, DAMPENER VIBRATION
  • 15
    5410320 DAMPNER, VIB.
    DAMPNER, VIB.
  • 16
    5010163 BUSHING, MOTOR MOUNT
    BUSHING, MOTOR MOUNT
  • 17
    7515503 BOLT
    BOLT
  • 18
    5020840 BUSHING, THREADED
    BUSHING, THREADED
  • 19
    7553101 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 20
    7512515 BOLT
    BOLT
  • 21
    7515510 BOLT
    BOLT
  • 22
    5211201 PLATE, SPACER
    PLATE, SPACER
  • 23
    7555823 WASHER
    WASHER
  • 24
    5020562 BUSHING, THREADED
    BUSHING, THREADED
  • 25
    5224836 PLATE, MOTOR MOUNT W/HOLE
    PLATE, MOTOR MOUNT W/HOLE
  • 26
    7555761 WASHER
    WASHER
  • 27
    7542403 NUT, LOCK
    NUT, LOCK
