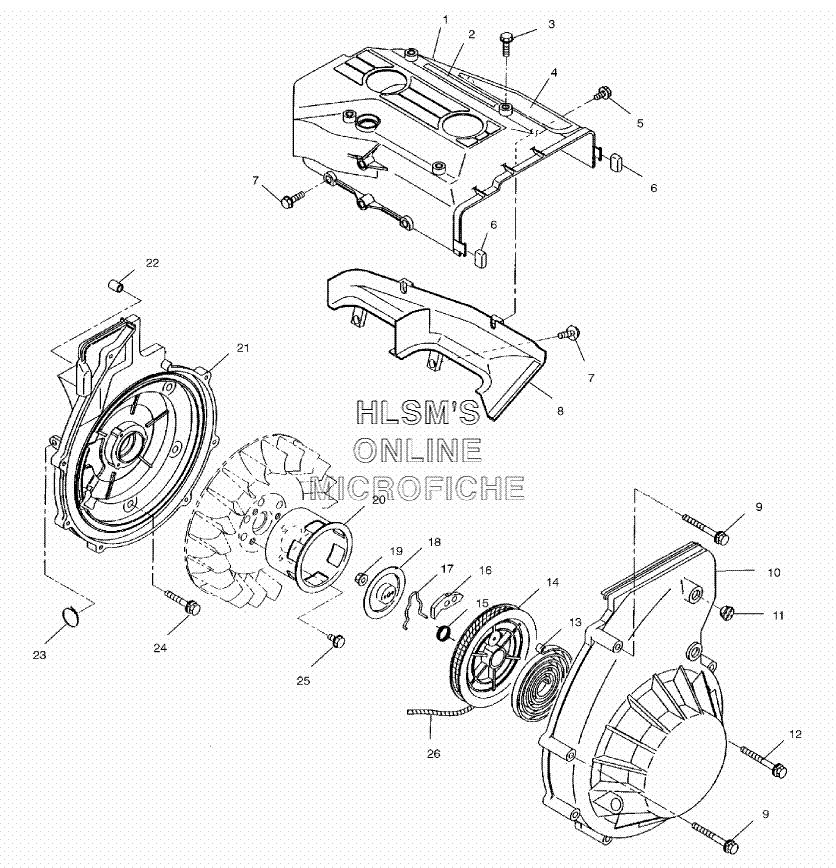

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3086991 BAFFLE, #1 CYLINDER
    BAFFLE, #1 CYLINDER
  • 2
    7079511 DECAL, ''POLARIS'' ENGINE SHROUD
    DECAL, ''POLARIS'' ENGINE SHROUD
  • 3
    3084566 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    7079510 DECAL, ''550'' ENGINE SHROUD
    DECAL, ''550'' ENGINE SHROUD
  • 5
    3085693 BOLT, FLANGE
    BOLT, FLANGE
  • 6
    3085690 CAP, CYLINDER BAFFLE
    CAP, CYLINDER BAFFLE
  • 7
    3085694 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3085691 BAFFLE, #2 CYLINDER
    BAFFLE, #2 CYLINDER
  • 9
    3083550 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 10
    3087134 STARTER, RECOIL (INCL. 13, 19, 26)
    STARTER, RECOIL (INCL. 13, 19, 26)
  • 10
    3087135 STARTER CASE COMPLETE
    STARTER CASE COMPLETE
  • 11
    3086792 PLUG, RUBBER
    PLUG, RUBBER
  • 12
    3082030 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 13
    3083376 SPRING, SPIRAL
    SPRING, SPIRAL
  • 14
    3083377 REEL, ASSY.
    REEL, ASSY.
  • 15
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 16
    3083378 RATCHET
    RATCHET
  • 17
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 18
    3083464 PLATE, FRICTION
    PLATE, FRICTION
  • 19
    3083381 NUT, FLANGE
    NUT, FLANGE
  • 20
    3085685 PULLEY, STARTING
    PULLEY, STARTING
  • 21
    3087020 HOUSING, BLOWER
    HOUSING, BLOWER
  • 22
    3084857 PIN, STRAIGHT
    PIN, STRAIGHT
  • 23
    3084823 BAND, WIRE
    BAND, WIRE
  • 24
    3084225 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 25
    3085688 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 26
    2870621 ROPE, NYLON STARTER (100 FT)
    ROPE, NYLON STARTER (100 FT)
