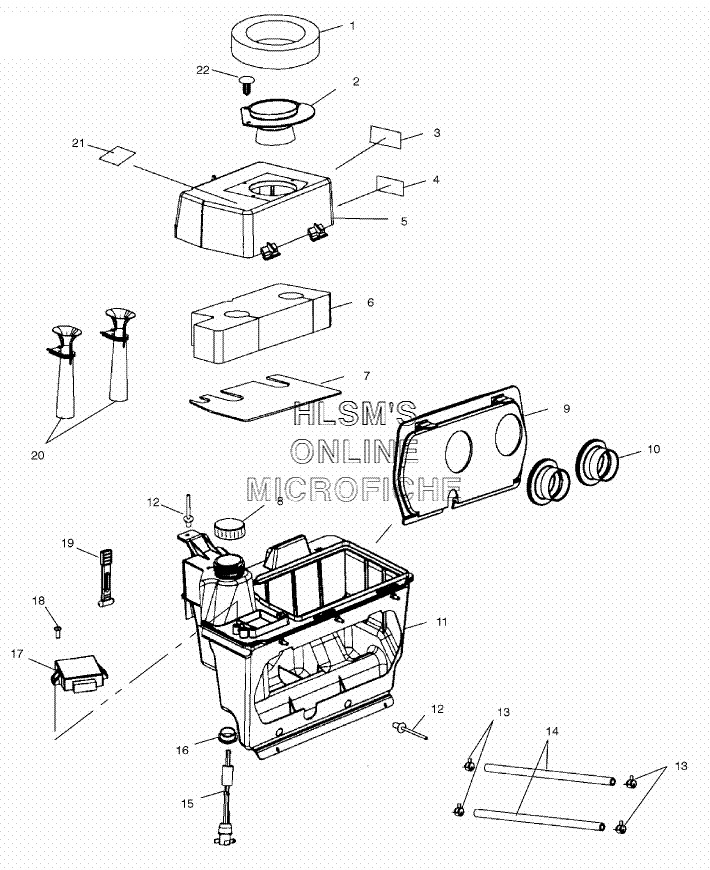

AIR BOX для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска
-
№АртикулНазвание
-
15811882 FOAMFOAM
-
25433664 DUCT, AIR INLETDUCT, AIR INLET
-
37073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
51253356 COVER, AIR SILENCER ASSY. (INCL. 2, 4, 21, 22)COVER, AIR SILENCER ASSY. (INCL. 2, 4, 21, 22)
-
65811979 FOAM, AIR BOX PLATEFOAM, AIR BOX PLATE
-
75433665 PLATE, INTAKE EDGEPLATE, INTAKE EDGE
-
81240094 CAP, OIL VENTED/CUSTOM COLORCAP, OIL VENTED/CUSTOM COLOR
-
95433904 PLATE, CARBURETOR ADAPTER 550 FANPLATE, CARBURETOR ADAPTER 550 FAN
-
105412189 BOOT, CARBURETORBOOT, CARBURETOR
-
111253336 AIR SILENCER, ASSY. (INCL. 15, 16)AIR SILENCER, ASSY. (INCL. 15, 16)
-
127621472 RIVETRIVET
-
137080307 CLAMP, HOSECLAMP, HOSE
-
148450003-1525 FUEL LINE (1/4 ID/1525 CM.)FUEL LINE (1/4 ID/1525 CM.)
-
154010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
167052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
173087106 CDI SYSTEM (SEE MAGNETO REF. 7)CDI SYSTEM (SEE MAGNETO REF. 7)
-
187512095 SCREWSCREW
-
195433150 STRAPSTRAP
-
205433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
217075351 DECAL, CAUTIONDECAL, CAUTION
-
227670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
