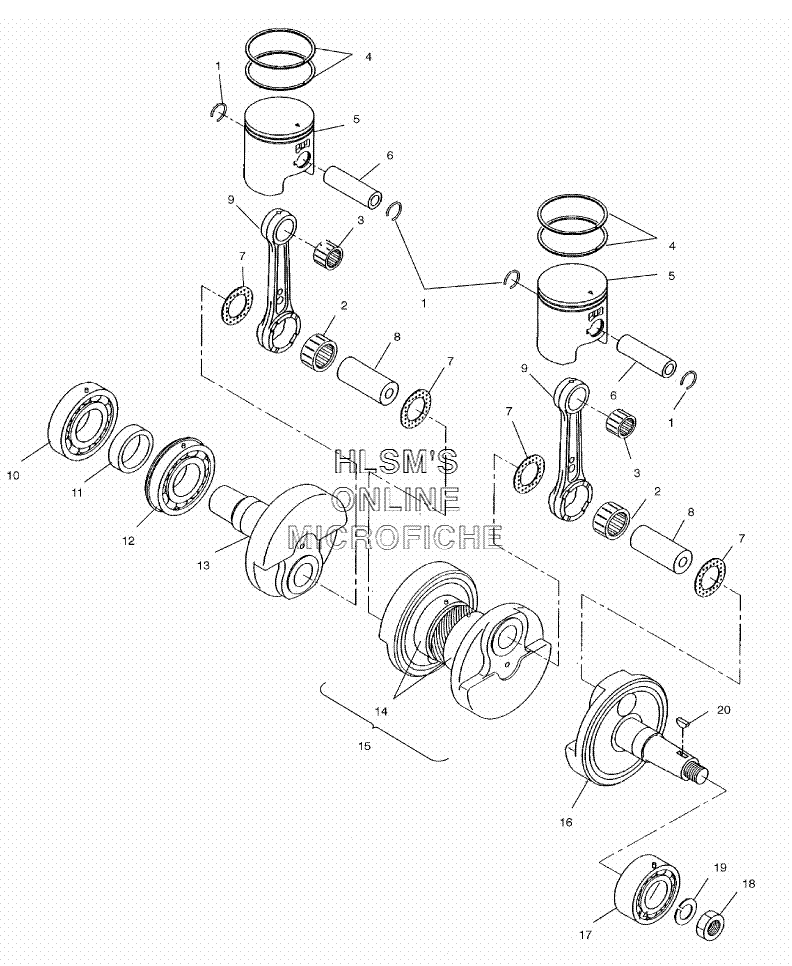

PISTON AND CRANKSHAFT для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 2
    3086390 BEARING, END LARGE
    BEARING, END LARGE
  • 3
    3083216 BEARING, END SMALL
    BEARING, END SMALL
  • 4
    3086988 SET, PISTON RING (STANDARD)
    SET, PISTON RING (STANDARD)
  • 4
    3086989 SET, PISTON RING (0.25MM/.010''O/S) (OPT)
    SET, PISTON RING (0.25MM/.010''O/S) (OPT)
  • 4
    3086990 SET, PISTON RING (0.50MM/.020''O/S) (OPT)
    SET, PISTON RING (0.50MM/.020''O/S) (OPT)
  • 5
    3087024 SET, PISTON (STANDARD)
    SET, PISTON (STANDARD)
  • 5
    3087025 SET, PISTON (0.25M/.010''O/S) (OPT)
    SET, PISTON (0.25M/.010''O/S) (OPT)
  • 5
    3087026 SET, PISTON (0.50M/.020''O/S) (OPT)
    SET, PISTON (0.50M/.020''O/S) (OPT)
  • 6
    3083838 PIN, PISTON
    PIN, PISTON
  • 7
    3083277 SPACER (CRANKPIN)
    SPACER (CRANKPIN)
  • 8
    3083456 PIN, CRANK
    PIN, CRANK
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3085675 CRANKSHAFT #3 (PTO SIDE)
    CRANKSHAFT #3 (PTO SIDE)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3085674 CRANKSHAFT 2 (CENTER) (INCL. 8)
    CRANKSHAFT 2 (CENTER) (INCL. 8)
  • 16
    3086389 CRANKSHAFT ASSY. (INCL. 7, 9, 10, 14, 15)
    CRANKSHAFT ASSY. (INCL. 7, 9, 10, 14, 15)
  • 16
    3085673 CRANKSHAFT #1 (MAG SIDE)
    CRANKSHAFT #1 (MAG SIDE)
  • 17
    3084681 BEARING, BALL
    BEARING, BALL
  • 18
    3083093 NUT
    NUT
  • 19
    3083094 WASHER, SPRING
    WASHER, SPRING
  • 20
    3080130 KEY, WOODRUFF
    KEY, WOODRUFF
