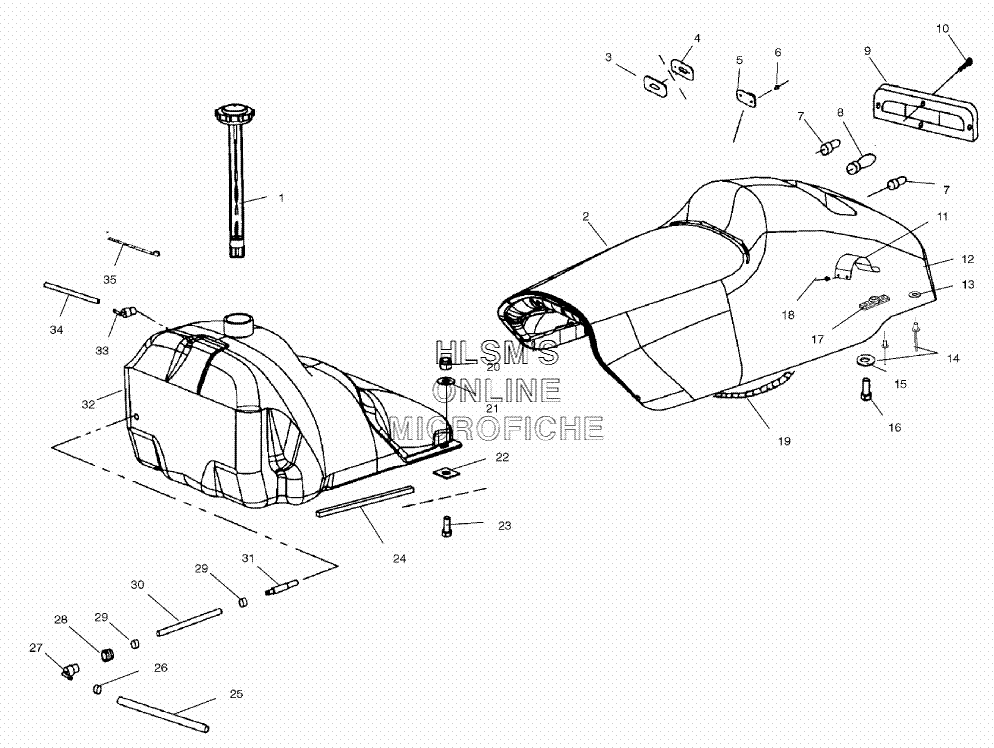

SEAT W/ GAS TANK ASSEMBLY для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL GAUGE
    CAP, FUEL GAUGE
  • 2
    2682759 SEAT, EDGE ASSY. (INCL. 2, 12, 19)
    SEAT, EDGE ASSY. (INCL. 2, 12, 19)
  • 2
    2682760 SEAT COVER, EDGE ASSY.
    SEAT COVER, EDGE ASSY.
  • 3
    7080550 GROMMET, RELATCH 1'' (BOTTOM)
    GROMMET, RELATCH 1'' (BOTTOM)
  • 4
    7080549 GROMMET, RELATCH 1'' (TOP)
    GROMMET, RELATCH 1'' (TOP)
  • 5
    7080548 TWISTLOCK, RELATCH 1'' W/HOLE
    TWISTLOCK, RELATCH 1'' W/HOLE
  • 6
    7621337 RIVET
    RIVET
  • 7
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 8
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 9
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 10
    7511840 SCREW
    SCREW
  • 11
    5243185 RETAINER, CLIP TOOL POUCH
    RETAINER, CLIP TOOL POUCH
  • 12
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 13
    7555727 RIVET BURR
    RIVET BURR
  • 14
    7621319 RIVET
    RIVET
  • 15
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    7515159 SCREW
    SCREW
  • 17
    5631194 NUT, SEAT
    NUT, SEAT
  • 18
    7621472 RIVET
    RIVET
  • 19
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 20
    7542122 NUT, NYLOCK
    NUT, NYLOCK
  • 21
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 22
    7670021 SPEED NUT
    SPEED NUT
  • 23
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 24
    5810947 SEAL, FOAM
    SEAL, FOAM
  • 24
    8360033 TAPE, FOAM
    TAPE, FOAM
  • 25
    8350018-600 TUBING, ETHER ERETHANE (160CM)
    TUBING, ETHER ERETHANE (160CM)
  • 26
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 27
    7052259 FITTING (1/4'' 90Ш DEX)
    FITTING (1/4'' 90Ш DEX)
  • 28
    7052028 GROMMET, TANK FITTING
    GROMMET, TANK FITTING
  • 29
    7080402 RING, COMPRES.
    RING, COMPRES.
  • 30
    8350019-600 FUEL LINE
    FUEL LINE
  • 31
    7052301 PICK-UP, FUEL W/FILTER
    PICK-UP, FUEL W/FILTER
  • 32
    2520266 FUEL TANK, EDGE ASSY. (INCL. 31, 33)
    FUEL TANK, EDGE ASSY. (INCL. 31, 33)
  • 33
    7052095 FITTING (90 DEG)
    FITTING (90 DEG)
  • 34
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
  • 35
    7080804 CABLE TIE, RELEASABLE 5 1/2''
    CABLE TIE, RELEASABLE 5 1/2''
